ALP系列铝合金齿轮泵 # Marzocchi // 马祖奇

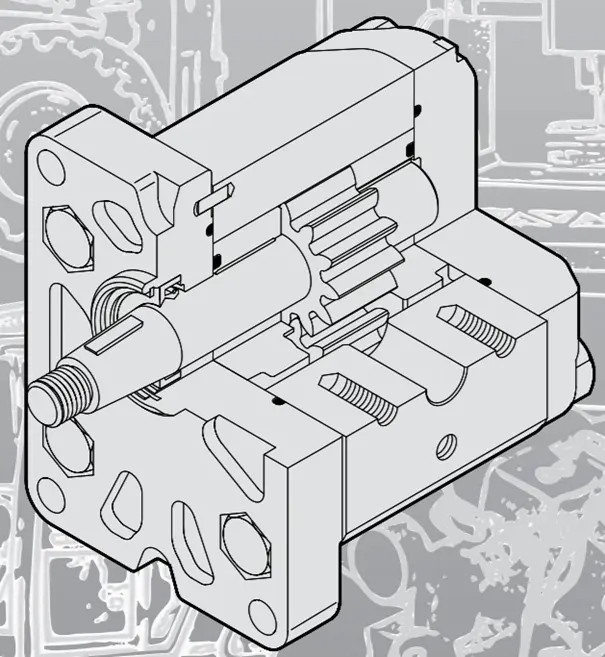

Marzocchi ALP 系列齿轮泵

Marzocchi ALP系列齿轮泵采用全铝制配置。它们能够承受中高压，并拥有不同版本的法兰（欧洲式、德国式和SAE）、进气口和轴。它们有单向和可逆两种配置。

该系列包含型号代码：ALP 1 |工党2 |工党3 |工党第四选区

ALP1系列：排量范围为1.4至13.8 cc/转;最高转速范围为2000至6000转/分钟：1500转/分钟时流量为2.0至19.7升/分钟，具体取决于车型。

ALP2系列：排量从4.5到35.2 cc/转速;最高转速范围为2500至4000转/分钟;流量为1500转/分钟，从6.4升到50.2升/分钟。

ALP3系列：排量从20到87 cc/转数;最高转速为2000至3500转/分钟;1500转/分钟时的流量范围为29至124升/分钟。

ALP4系列：排量范围为87至200 cc/转;最高转速为2,400至2,800转/分钟;流量为1500转/分钟，根据型号不同，流量从124升到285升/分钟不等。

Marzocchi Group ALP1
DisplacementFrom 1.4 to 13.8 cc/rev
Max. Continuous Pressure250 bar
Max. Intermittent Pressure270 bar
Max. Peak Pressure290 bar
Max. Speed6000 rpm

Group ALP1 products include ALP1, ALP1A, ALP1AF.

Marzocchi Group ALP2
DisplacementFrom 4.5 to 35.2 cc/rev
Max. Continuous Pressure250 bar
Max. Intermittent Pressure270 bar
Max. Peak Pressure290 bar
Max. Speed4000 rpm
Group ALP2 products include ALP2, ALP2-T, ALP2-VM-EO, ALP2-MU, ALP2-VM-E3, ALP2A, ALP2A-MU, ALP2BK1, ALP2BK1-T, ALP2BK2, ALP2BK4, ALP2BK7.
Marzocchi Group ALP3
DisplacementFrom 20 to 87 cc/rev
Max. Continuous Pressure230 bar
Max. Intermittent Pressure250 bar
Max. Peak Pressure270 bar
Max. Speed3500 rpm
Group ALP3 products include ALP3, ALP3-MU, ALP3A, ALP3A-MU.
Marzocchi Group ALP4
DisplacementFrom 87 to 200 cc/rev
Max. Continuous Pressure240 bar
Max. Intermittent Pressure260 bar
Max. Peak Pressure280 bar
Max. Speed2800 rpm
Group ALP4 products include ALP4, ALP4E, ALP4A.
ALP1-D-2ALP1 D 2
ALP1-D-3ALP1 D 3
ALP1-D-4ALP1 D 4
ALP1-D-5ALP1 D 5
ALP1-D-6ALP1 D 6
ALP1-D-7ALP1 D 7
ALP1-D-9ALP1 D 9
ALP1-D-11ALP1 D 11
ALP1-D-13ALP1 D 13
ALP1-D-16ALP1 D 16
ALP1-D-20ALP1 D 20
ALP1A-D-2ALP1A D 2
ALP1A-D-3ALP1A D 3
ALP1A-D-4ALP1A D 4
ALP1A-D-5ALP1A D 5
ALP1A-D-6ALP1A D 6
ALP1A-D-7ALP1A D 7
ALP1A-D-9ALP1A D 9
ALP1A-D-11ALP1A D 11
ALP1A-D-13ALP1A D 13
ALP1A-D-16ALP1A D 16
ALP1A-D-20ALP1A D 20
ALP2-D-6ALP2 D 6
ALP2-D-9ALP2 D 9
ALP2-D-10ALP2 D 10
ALP2-D-12ALP2 D 12
ALP2-D-13ALP2 D 13
ALP2-D-16ALP2 D 16
ALP2-D-20ALP2 D 20
ALP2-D-22ALP2 D 22
ALP2-D-25ALP2 D 25
ALP2-D-30ALP2 D 30
ALP2-D-34ALP2 D 34
ALP2-D-37ALP2 D 37
ALP2-D-40ALP2 D 40
ALP2-D-50ALP2 D 50
ALP2A-D-6ALP2A D 6
ALP2A-D-9ALP2A D 9
ALP2A-D-10ALP2A D 10
ALP2A-D-12ALP2A D 12
ALP2A-D-13ALP2A D 13
ALP2A-D-16ALP2A D 16
ALP2A-D-20ALP2A D 20
ALP2A-D-22ALP2A D 22
ALP2A-D-25ALP2A D 25
ALP2A-D-30ALP2A D 30
ALP2A-D-34ALP2A D 34
ALP2A-D-37ALP2A D 37
ALP2A-D-40ALP2A D 40
ALP2A-D-50ALP2A D 50
ALP2BK1-D-6ALP2BK1 D 6
ALP2BK1-D-9ALP2BK1 D 9
ALP2BK1-D-10ALP2BK1 D 10
ALP2BK1-D-12ALP2BK1 D 12
ALP2BK1-D-13ALP2BK1 D 13
ALP2BK1-D-16ALP2BK1 D 16
ALP2BK1-D-20ALP2BK1 D 20
ALP2BK1-D-22ALP2BK1 D 22
ALP2BK1-D-25ALP2BK1 D 25
ALP2BK1-D-30ALP2BK1 D 30
ALP2BK1-D-34ALP2BK1 D 34
ALP2BK1-D-37ALP2BK1 D 37
ALP2BK1-D-40ALP2BK1 D 40
ALP2BK2-D-6ALP2BK2 D 6
ALP2BK2-D-9ALP2BK2 D 9
ALP2BK2-D-10ALP2BK2 D 10
ALP2BK2-D-12ALP2BK2 D 12
ALP2BK2-D-13ALP2BK2 D 13
ALP2BK2-D-16ALP2BK2 D 16
ALP2BK2-D-20ALP2BK2 D 20
ALP2BK2-D-22ALP2BK2 D 22
ALP2BK2-D-25ALP2BK2 D 25
ALP2BK2-D-30ALP2BK2 D 30
ALP2BK2-D-34ALP2BK2 D 34
ALP2BK2-D-37ALP2BK2 D 37
ALP2BK2-D-40ALP2BK2 D 40
ALP2BK4-D-6ALP2BK4 D 6
ALP2BK4-D-9ALP2BK4 D 9
ALP2BK4-D-10ALP2BK4 D 10
ALP2BK4-D-12ALP2BK4 D 12
ALP2BK4-D-13ALP2BK4 D 13
ALP2BK4-D-16ALP2BK4 D 16
ALP2BK4-D-20ALP2BK4 D 20
ALP2BK4-D-22ALP2BK4 D 22
ALP2BK4-D-25ALP2BK4 D 25
ALP2BK4-D-30ALP2BK4 D 30
ALP2BK4-D-34ALP2BK4 D 34
ALP2BK4-D-37ALP2BK4 D 37
ALP2BK4-D-40ALP2BK4 D 40
ALP2BK7-D-6ALP2BK7 D 6
ALP2BK7-D-9ALP2BK7 D 9
ALP2BK7-D-10ALP2BK7 D 10
ALP2BK7-D-12ALP2BK7 D 12
ALP2BK7-D-13ALP2BK7 D 13
ALP2BK7-D-16ALP2BK7 D 16
ALP2BK7-D-20ALP2BK7 D 20
ALP2BK7-D-22ALP2BK7 D 22
ALP2BK7-D-25ALP2BK7 D 25
ALP2BK7-D-30ALP2BK7 D 30
ALP2BK7-D-34ALP2BK7 D 34
ALP2BK7-D-37ALP2BK7 D 37
ALP2BK7-D-40ALP2BK7 D 40
ALP3-D-30ALP3 D 30
ALP3-D-33ALP3 D 33
ALP3-D-40ALP3 D 40
ALP3-D-50ALP3 D 50
ALP3-D-60ALP3 D 60
ALP3-D-66ALP3 D 66
ALP3-D-80ALP3 D 80
ALP3-D-94ALP3 D 94
ALP3-D-110ALP3 D 110
ALP3-D-120ALP3 D 120
ALP3-D-135ALP3 D 135
ALP3A-D-30ALP3A D 30
ALP3A-D-33ALP3A D 33
ALP3A-D-40ALP3A D 40
ALP3A-D-50ALP3A D 50
ALP3A-D-60ALP3A D 60
ALP3A-D-66ALP3A D 66
ALP3A-D-80ALP3A D 80
ALP3A-D-94ALP3A D 94
ALP3A-D-110ALP3A D 110
ALP3A-D-120ALP3A D 120
ALP3A-D-135ALP3A D 135
ALP4-D-130ALP4 D 130
ALP4-D-16CALP4 D 16C
ALP4-D-190ALP4 D 190
ALP4-D-220ALP4 D 220
ALP4-D-250ALP4 D 250
ALP4-D-270ALP4 D 270
ALP4-D-300ALP4 D 300
ALP4E-D-130ALP4E D 130
ALP4E-D-160ALP4E D 160
ALP4E-D-190ALP4E D 190
ALP4E-D-220ALP4E D 220
ALP4E-D-250ALP4E D 250
ALP4E-D-270ALP4E D 270
ALP4E-D-300ALP4E D 300
ALP4A-D-130ALP4A D 130
ALP4A-D-160ALP4A D 160
ALP4A-D-190ALP4A D 190
ALP4A-D-220ALP4A D 220
ALP4A-D-250ALP4A D 250
ALP4A-D-270ALP4A D 270
ALP4A-D-300ALP4A D 300
