GHP系列铝合金/铸铁齿轮泵 # Marzocchi // 马祖奇

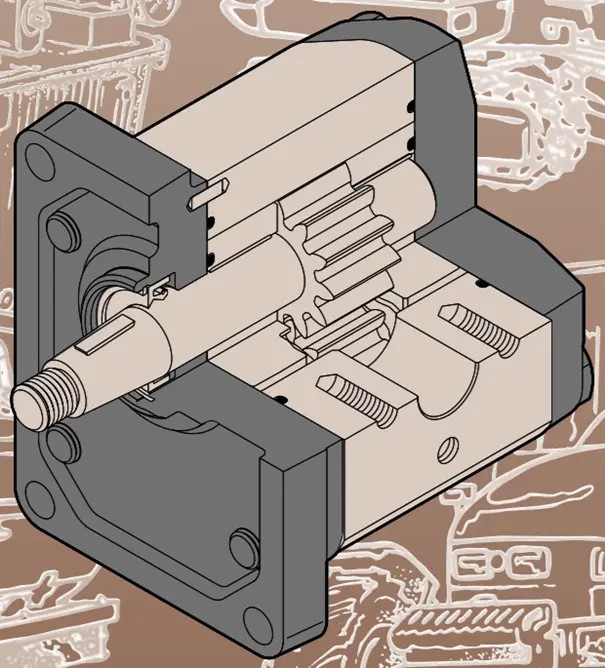

Marzocchi GHP 系列齿轮泵

Marzocchi GHP 系列提供与 ALP 系列相同的配置，并保证在高压应用中的极高可靠性。

这些泵非常适合从农业到建筑机械的移动应用;铸铁锅提供了更多法兰、罩板和接口的选择。

Marzocchi GHP 系列泵的型号代码为：GHP1 |GHP2 |GHP3

GHP1系列：排量从1.4 cc/转速提升至13.8 cc/转速;最高转速为1800至6000转/分钟;流量为每分钟1500转，流量从2.0升至19.7升/分钟。

GHP2系列：排量从4.5 cc/转速提升至35.2 cc/转速;最高转速为2500至4000转/分钟;流量为1500转/分钟，流量从6.4升到50.2升/分钟。

GHP3系列：排量从20 cc/转速提升至87 cc/转速;最高转速为2000至3500转/分钟;流量为1500转/分钟，流量从29升至124升/分钟。

Marzocchi Group GHP1
DisplacementFrom 1.4 to 13.8 cc/rev
Max. Continuous Pressure270 bar
Max. Intermittent Pressure290 bar
Max. Peak Pressure310 bar
Max. Speed6000 rpm

Group GHP1 products include GHP1, GHP1-RA, GHP1A, GHP1A-RA, GHP1AQ, GHP1A2, GHP1AF.

Marzocchi Group GHP2
DisplacementFrom 4.5 to 28.2 cc/rev
Max. Continuous Pressure280 bar
Max. Intermittent Pressure295 bar
Max. Peak Pressure310 bar
Max. Speed4000 rpm
Group GHP2 products include GHP2, GHP2-T, GHP2-MU, GHP2A, GHP2A-KA,.
Marzocchi Group GHP3
DisplacementFrom 20 to 87 cc/rev
Max. Continuous Pressure280 bar
Max. Intermittent Pressure295 bar
Max. Peak Pressure310 bar
Max. Speed3500 rpm
Group GHP3 products include GHP3, GHP3-MU, GHP3A, GHP3A-MU, GHP3A2, GHP3BK1, GHP35.
GHP1-D-2GHP1 D 2
GHP1-D-3GHP1 D 3
GHP1-D-4GHP1 D 4
GHP1-D-5GHP1 D 5
GHP1-D-6GHP1 D 6
GHP1-D-7GHP1 D 7
GHP1-D-9GHP1 D 9
GHP1-D-11GHP1 D 11
GHP1-D-13GHP1 D 13
GHP1-D-16GHP1 D 16
GHP1-D-20GHP1 D 20
GHP1A-D-2GHP1A D 2
GHP1A-D-3GHP1A D 3
GHP1A-D-4GHP1A D 4
GHP1A-D-5GHP1A D 5
GHP1A-D-6GHP1A D 6
GHP1A-D-7GHP1A D 7
GHP1A-D-9GHP1A D 9
GHP1A-D-11GHP1A D 11
GHP1A-D-13GHP1A D 13
GHP1A-D-16GHP1A D 16
GHP1A-D-20GHP1A D 20
GHP1AQ-D-2GHP1AQ D 2
GHP1AQ-D-3GHP1AQ D 3
GHP1AQ-D-4GHP1AQ D 4
GHP1AQ-D-5GHP1AQ D 5
GHP1AQ-D-6GHP1AQ D 6
GHP1AQ-D-7GHP1AQ D 7
GHP1AQ-D-9GHP1AQ D 9
GHP1AQ-D-11GHP1AQ D 11
GHP1AQ-D-13GHP1AQ D 13
GHP1AQ-D-16GHP1AQ D 16
GHP1AQ-D-20GHP1AQ D 20
GHP1A2-D-2GHP1A2 D 2
GHP1A2-D-3GHP1A2 D 3
GHP1A2-D-4GHP1A2 D 4
GHP1A2-D-5GHP1A2 D 5
GHP1A2-D-6GHP1A2 D 6
GHP1A2-D-7GHP1A2 D 7
GHP1A2-D-9GHP1A2 D 9
GHP1A2-D-11GHP1A2 D 11
GHP1A2-D-13GHP1A2 D 13
GHP1A2-D-16GHP1A2 D 16
GHP1A2-D-20GHP1A2 D 20
GHP2-D-6GHP2 D 6
GHP2-D-9GHP2 D 9
GHP2-D-10GHP2 D 10
GHP2-D-12GHP2 D 12
GHP2-D-13GHP2 D 13
GHP2-D-16GHP2 D 16
GHP2-D-20GHP2 D 20
GHP2-D-22GHP2 D 22
GHP2-D-25GHP2 D 25
GHP2-D-30GHP2 D 30
GHP2-D-34GHP2 D 34
GHP2-D-37GHP2 D 37
GHP2-D-40GHP2 D 40
GHP2-D-50GHP2 D 50
GHP2A-D-9GHP2A D 9
GHP2A-D-10GHP2A D 10
GHP2A-D-12GHP2A D 12
GHP2A-D-13GHP2A D 13
GHP2A-D-16GHP2A D 16
GHP2A-D-20GHP2A D 20
GHP2A-D-22GHP2A D 22
GHP2A-D-25GHP2A D 25
GHP2A-D-30GHP2A D 30
GHP2A-D-34GHP2A D 34
GHP2A-D-37GHP2A D 37
GHP2A-D-40GHP2A D 40
GHP2A-D-50GHP2A D 50
GHP2A3-D-6GHP2A3 D 6
GHP2A3-D-9GHP2A3 D 9
GHP2A3-D-10GHP2A3 D 10
GHP2A3-D-12GHP2A3 D 12
GHP2A3-D-13GHP2A3 D 13
GHP2A3-D-16GHP2A3 D 16
GHP2A3-D-20GHP2A3 D 20
GHP2A3-D-22GHP2A3 D 22
GHP2A3-D-25GHP2A3 D 25
GHP2A3-D-30GHP2A3 D 30
GHP2A3-D-34GHP2A3 D 34
GHP2A3-D-37GHP2A3 D 37
GHP2A3-D-40GHP2A3 D 40
GHP2A3-D-50GHP2A3 D 50
GHP2BK1-D-6GHP2BK1 D 6
GHP2BK1-D-9GHP2BK1 D 9
GHP2BK1-D-10GHP2BK1 D 10
GHP2BK1-D-12GHP2BK1 D 12
GHP2BK1-D-13GHP2BK1 D 13
GHP2BK1-D-16GHP2BK1 D 16
GHP2BK1-D-20GHP2BK1 D 20
GHP2BK1-D-22GHP2BK1 D 22
GHP2BK1-D-25GHP2BK1 D 25
GHP2BK1-D-30GHP2BK1 D 30
GHP2BK1-D-34GHP2BK1 D 34
GHP2BK1-D-37GHP2BK1 D 37
GHP2BK1-D-40GHP2BK1 D 40
GHP2BK2-D-6GHP2BK2 D 6
GHP2BK2-D-9GHP2BK2 D 9
GHP2BK2-D-10GHP2BK2 D 10
GHP2BK2-D-12GHP2BK2 D 12
GHP2BK2-D-13GHP2BK2 D 13
GHP2BK2-D-16GHP2BK2 D 16
GHP2BK2-D-20GHP2BK2 D 20
GHP2BK2-D-22GHP2BK2 D 22
GHP2BK2-D-25GHP2BK2 D 25
GHP2BK2-D-30GHP2BK2 D 30
GHP2BK2-D-34GHP2BK2 D 34
GHP2BK2-D-37GHP2BK2 D 37
GHP2BK2-D-40GHP2BK2 D 40
GHP2BK4-D-6GHP2BK4 D 6
GHP2BK4-D-9GHP2BK4 D 9
GHP2BK4-D-10GHP2BK4 D 10
GHP2BK4-D-12GHP2BK4 D 12
GHP2BK4-D-13GHP2BK4 D 13
GHP2BK4-D-16GHP2BK4 D 16
GHP2BK4-D-20GHP2BK4 D 20
GHP2BK4-D-22GHP2BK4 D 22
GHP2BK4-D-25GHP2BK4 D 25
GHP2BK4-D-30GHP2BK4 D 30
GHP2BK4-D-34GHP2BK4 D 34
GHP2BK4-D-37GHP2BK4 D 37
GHP2BK4-D-40GHP2BK4 D 40
GHP2BK7-D-6GHP2BK7 D 6
GHP2BK7-D-9GHP2BK7 D 9
GHP2BK7-D-10GHP2BK7 D 10
GHP2BK7-D-12GHP2BK7 D 12
GHP2BK7-D-13GHP2BK7 D 13
GHP2BK7-D-16GHP2BK7 D 16
GHP2BK7-D-20GHP2BK7 D 20
GHP2BK7-D-22GHP2BK7 D 22
GHP2BK7-D-25GHP2BK7 D 25
GHP2BK7-D-30GHP2BK7 D 30
GHP2BK7-D-34GHP2BK7 D 34
GHP2BK7-D-37GHP2BK7 D 37
GHP2BK7-D-40GHP2BK7 D 40
GHP3-D-30GHP3 D 30
GHP3-D-33GHP3 D 33
GHP3-D-40GHP3 D 40
GHP3-D-50GHP3 D 50
GHP3-D-60GHP3 D 60
GHP3-D-66GHP3 D 66
GHP3-D-80GHP3 D 80
GHP3-D-94GHP3 D 94
GHP3-D-110GHP3 D 110
GHP3-D-120GHP3 D 120
GHP3-D-135GHP3 D 135
GHP3A-D-30GHP3A D 30
GHP3A-D-33GHP3A D 33
GHP3A-D-40GHP3A D 40
GHP3A-D-50GHP3A D 50
GHP3A-D-60GHP3A D 60
GHP3A-D-66GHP3A D 66
GHP3A-D-80GHP3A D 80
GHP3A-D-94GHP3A D 94
GHP3A-D-110GHP3A D 110
GHP3A-D-120GHP3A D 120
GHP3A-D-135GHP3A D 135
GHP3A2-D-30GHP3A2 D 30
GHP3A2-D-33GHP3A2 D 33
GHP3A2-D-40GHP3A2 D 40
GHP3A2-D-50GHP3A2 D 50
GHP3A2-D-60GHP3A2 D 60
GHP3A2-D-66GHP3A2 D 66
GHP3A2-D-80GHP3A2 D 80
GHP3A2-D-94GHP3A2 D 94
GHP3A2-D-110GHP3A2 D 110
GHP3A2-D-120GHP3A2 D 120
GHP3A2-D-135GHP3A2 D 135
GHP3BK1-D-30GHP3BK1 D 30
GHP3BK1-D-33GHP3BK1 D 33
GHP3BK1-D-40GHP3BK1 D 40
GHP3BK1-D-50GHP3BK1 D 50
GHP3BK1-D-60GHP3BK1 D 60
GHP3BK1-D-66GHP3BK1 D 66
GHP3BK1-D-80GHP3BK1 D 80
GHP35-D-66GHP35 D 66
GHP35-D-80GHP35 D 80
GHP35-D-94GHP35 D 94
GHP35-D-110GHP35 D 110
GHP35-D-120GHP35 D 120
GHP35-D-135GHP35 D 135
