首页 >> 产品介绍 >>Marzocchi 一 马祖奇 >> 0.25-0.5系列微型泵 # Marzocchi // 马祖奇
详细内容

0.25-0.5系列微型泵 # Marzocchi // 马祖奇

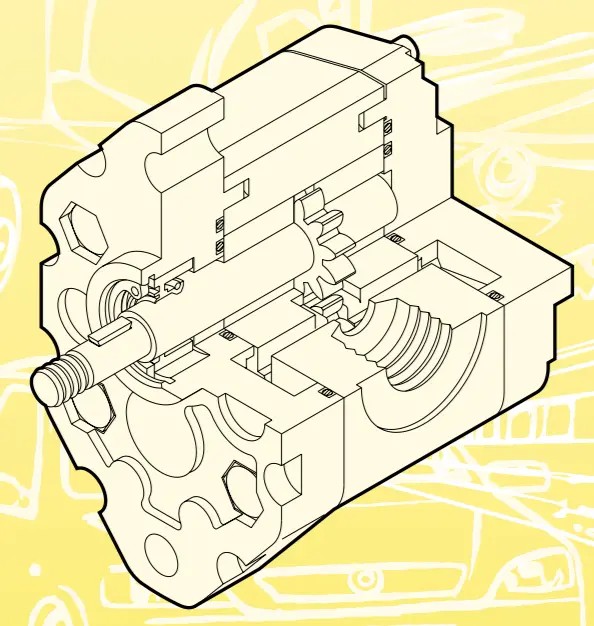

Marzocchi 0.25 和 0.5 微齿轮泵

Marzocchi 0.25和0.5微铝齿轮泵的区别仅在于齿形。它们在集成到微型动力组时，性能极高，使这些泵非常适合从航空航天到海洋，从医疗到汽车等多种应用。

通过改变齿轮齿带的厚度，每个泵组内可实现不同的泵排量。可用排量（cc/rev）如下：

  • 0.25组泵：0.19 |0.26 |0.32 |0.38 |0.51 |0.64

  • 0.5组泵：0.50 |0.63 |0.88 |1.00 |1.25 |1.50

Marzocchi 0.25和0.5泵的最大连续压力范围为190巴至230巴，最大间歇压力为210巴至250巴，豌豆压力为230巴至270巴。0.25组泵的最大转速可达7000转/分钟，0.5组泵的最大转速范围为4000转/分钟至7000转/分钟。

Marzocchi 0.25和0.5微泵也有单旋转和双旋转两种配置。还可选不同的法兰、轴、进气口和压力口。

Marzocchi Group 0.25
Version RO
DisplacementFrom 0.19 to 0.64 cm3/revFrom 0.19 to 0.64 cm3/rev
Max. Continuous Pressure190 bar230 bar
Max. Intermittent Pressure210 bar250 bar
Max. Peak Pressure230 bar270 bar
Max. Speed7000 rpm7000 rpm
Marzocchi Group 0.5
Version RO
DisplacementFrom 0.50 to 1.50 cm3/revFrom 0.50 to 1.50 cm3/rev
Max. Continuous Pressure190 bar230 bar
Max. Intermittent Pressure210 bar250 bar
Max. Peak Pressure230 bar270 bar
Max. SpeedFrom 4000 to 7000 rpmFrom 5000 to 7000 rpm


0.25-D-180.25 D 18
0.25-D-18-G-RO0.25 D 18 G RO
0.25-D-18-KA0.25 D 18 KA
0.25-D-240.25 D 24
0.25-D-24-G-RO0.25 D 24 G RO
0.25-D-24-KA0.25 D 24 KA
0.25-D-300.25 D 30
0.25-D-30-G-RO0.25 D 30 G RO
0.25-D-30-KA0.25 D 30 KA
0.25-D-360.25 D 36
0.25-D-36-G-RO0.25 D 36 G RO
0.25-D-36-KA0.25 D 36 KA
0.25-D-480.25 D 48
0.25-D-48-G-RO0.25 D 48 G RO
0.25-D-48-KA0.25 D 48 KA
0.25-D-600.25 D 60
0.25-D-60-G-RO0.25 D 60 G RO
0.25-D-60-KA0.25 D 60 KA
0.25-R-180.25 R 18
0.25-R-18-KX0.25 R 18 KX
0.25-R-18-VN-KX0.25 R 18 VN KX
0.25-R-240.25 R 24
0.25-R-24-KX0.25 R 24 KX
0.25-R-24-VN-KX0.25 R 24 VN KX
0.25-R-300.25 R 30
0.25-R-30-KX0.25 R 30 KX
0.25-R-30-VN-KX0.25 R 30 VN KX
0.25-R-360.25 R 36
0.25-R-36-KX0.25 R 36 KX
0.25-R-36-VN-KX0.25 R 36 VN KX
0.25-R-480.25 R 48
0.25-R-48-KX0.25 R 48 KX
0.25-R-48-VN-KX0.25 R 48 VN KX
0.25-R-600.25 R 60
0.25-R-60-KX0.25 R 60 KX
0.25-R-60-VN-KX0.25 R 60 VN KX
0.5-D-0,500.5 D 0,50
0.5-D-0,50-G-RO0.5 D 0,50 G RO
0.5-D-0,50-KA0.5 D 0,50 KA
0.5-D-0,750.5 D 0,75
0.5-D-0,75-G-RO0.5 D 0,75 G RO
0.5-D-0,75-KA0.5 D 0,75 KA
0.5-D-1,000.5 D 1,00
0.5-D-1,00-G-RO0.5 D 1,00 G RO
0.5-D-1,00-KA0.5 D 1,00 KA
0.5-D-1,300.5 D 1,30
0.5-D-1,30-G-RO0.5 D 1,30 G RO
0.5-D-1,30-KA0.5 D 1,30 KA
0.5-D-1,600.5 D 1,60
0.5-D-1,60-G-RO0.5 D 1,60 G RO
0.5-D-1,60-KA0.5 D 1,60 KA
0.5-D-2,000.5 D 2,00
0.5-D-2,00-KA0.5 D 2,00 KA
0.5-R-1,000.5 R 1,00
0.5-R-1,00-KX0.5 R 1,00 KX
0.5-R-1,00-VN-KX0.5 R 1,00 VN KX
0.5-R-1,300.5 R 1,30
0.5-R-1,30-KX0.5 R 1,30 KX
0.5-R-1,30-VN-KX0.5 R 1,30 VN KX
0.5-R-1,600.5 R 1,60
0.5-R-1,60-KX0.5 R 1,60 KX
0.5-R-1,60-VN-KX0.5 R 1,60 VN KX
0.5-R-2,000.5 R 2,00
0.5-R-2,00-KX0.5 R 2,00 KX
0.5-R-2,00-VN-KX0.5 R 2,00 VN KX
0.5-RO,500.5 RO,50
0.5-RO,50-KX0.5 RO,50 KX
0.5-RO,50-VN-KX0.5 RO,50 VN KX
0.5-RO,750.5 RO,75
0.5-RO,75-KX0.5 RO,75 KX
0.5-RO,75-VN-KX0.5 RO,75 VN KX
K-0.25-D-18K 0.25 D 18
K-0.25-D-24K 0.25 D 24
K-0.25-D-30K 0.25 D 30
K-0.25-D-36K 0.25 D 36
K-0.25-D-48K 0.25 D 48
K-0.25-D-60K 0.25 D 60
K-0.5-D-0,50K 0.5 D 0,50
K-0.5-D-0,75K 0.5 D 0,75
K-0.5-D-1,00K 0.5 D 1,00
K-0.5-D-1,30K 0.5 D 1,30
K-0.5-D-1,60K 0.5 D 1,60
K-0.5-D-2,00K 0.5 D 2,00
U-0.25-D-18U 0.25 D 18
U-0.25-D-18-G-ROU 0.25 D 18 G RO
U-0.25-D-18-KAU 0.25 D 18 KA
U-0.25-D-24U 0.25 D 24
U-0.25-D-24-G-ROU 0.25 D 24 G RO
U-0.25-D-24-KAU 0.25 D 24 KA
U-0.25-D-30U 0.25 D 30
U-0.25-D-30-G-ROU 0.25 D 30 G RO
U-0.25-D-30-KAU 0.25 D 30 KA
U-0.25-D-36U 0.25 D 36
U-0.25-D-36-G-ROU 0.25 D 36 G RO
U-0.25-D-36-KAU 0.25 D 36 KA
U-0.25-D-48U 0.25 D 48
U-0.25-D-48-G-ROU 0.25 D 48 G RO
U-0.25-D-48-KAU 0.25 D 48 KA
U-0.25-D-60U 0.25 D 60
U-0.25-D-60-G-ROU 0.25 D 60 G RO
U-0.25-D-60-KAU 0.25 D 60 KA
U-0.25-R-18U 0.25 R 18
U-0.25-R-18-KXU 0.25 R 18 KX
U-0.25-R-18-VN-KXU 0.25 R 18 VN KX
U-0.25-R-24U 0.25 R 24
U-0.25-R-24-KXU 0.25 R 24 KX
U-0.25-R-24-VN-KXU 0.25 R 24 VN KX
U-0.25-R-30U 0.25 R 30
U-0.25-R-30-KXU 0.25 R 30 KX
U-0.25-R-30-VN-KXU 0.25 R 30 VN KX
U-0.25-R-36U 0.25 R 36
U-0.25-R-36-KXU 0.25 R 36 KX
U-0.25-R-36-VN-KXU 0.25 R 36 VN KX
U-0.25-R-48U 0.25 R 48
U-0.25-R-48-KXU 0.25 R 48 KX
U-0.25-R-48-VN-KXU 0.25 R 48 VN KX
U-0.25-R-60U 0.25 R 60
U-0.25-R-60-KXU 0.25 R 60 KX
U-0.25-R-60-VN-KXU 0.25 R 60 VN KX
U-0.5-D-0,50U 0.5 D 0,50
U-0.5-D-0,50-G-ROU 0.5 D 0,50 G RO
U-0.5-D-0,50-KAU 0.5 D 0,50 KA
U-0.5-D-0,75U 0.5 D 0,75
U-0.5-D-0,75-G-ROU 0.5 D 0,75 G RO
U-0.5-D-0,75-KAU 0.5 D 0,75 KA
U-0.5-D-1,00U 0.5 D 1,00
U-0.5-D-1,00-G-ROU 0.5 D 1,00 G RO
U-0.5-D-1,00-KAU 0.5 D 1,00 KA
U-0.5-D-1,30U 0.5 D 1,30
U-0.5-D-1,30-G-ROU 0.5 D 1,30 G RO
U-0.5-D-1,30-KAU 0.5 D 1,30 KA
U-0.5-D-1,60U 0.5 D 1,60
U-0.5-D-1,60-G-ROU 0.5 D 1,60 G RO
U-0.5-D-1,60-KAU 0.5 D 1,60 KA
U-0.5-D-2,00U 0.5 D 2,00
U-0.5-D-2,00-KAU 0.5 D 2,00 KA
U-0.5-R-1,00U 0.5 R 1,00
U-0.5-R-1,00-KXU 0.5 R 1,00 KX
U-0.5-R-1,00-VN-KXU 0.5 R 1,00 VN KX
U-0.5-R-1,30U 0.5 R 1,30
U-0.5-R-1,30-KXU 0.5 R 1,30 KX
U-0.5-R-1,30-VN-KXU 0.5 R 1,30 VN KX
U-0.5-R-1,60U 0.5 R 1,60
U-0.5-R-1,60-KXU 0.5 R 1,60 KX
U-0.5-R-1,60-VN-KXU 0.5 R 1,60 VN KX
U-0.5-R-2,00U 0.5 R 2,00
U-0.5-R-2,00-KXU 0.5 R 2,00 KX
U-0.5-R-2,00-VN-KXU 0.5 R 2,00 VN KX
U-0.5-RO,50U 0.5 RO,50
U-0.5-RO,50-KXU 0.5 RO,50 KX
U-0.5-RO,75U 0.5 RO,75
U-0.5-RO,75-KXU 0.5 RO,75 KX
U-0.5-RO50-VN-KXU 0.5 RO50 VN KX
U-0.5-RO75-VN-KXU 0.5 RO75 VN KX
UK-0.25-D-18UK 0.25 D 18
UK-0.25-D-24UK 0.25 D 24
UK-0.25-D-30UK 0.25 D 30
UK-0.25-D-36UK 0.25 D 36
UK-0.25-D-48UK 0.25 D 48
UK-0.25-D-60UK 0.25 D 60
UK-0.5-D-0,50UK 0.5 D 0,50
UK-0.5-D-0,75UK 0.5 D 0,75
UK-0.5-D-1,00UK 0.5 D 1,00
UK-0.5-D-1,30UK 0.5 D 1,30
UK-0.5-D-1,60UK 0.5 D 1,60
UK-0.5-D-2,00UK 0.5 D 2,00
