| 与流体类型共同使用: | Air, Water, Oil |
| 孔口尺寸: | 10 to 50 mm (I.D.) |
| 端口数量: | 2.0 |
| 最小先导压力: | 3.0 bar |
| 行业: | Industrial Manufacturing Equipment |
| 连接尺寸: | Rp 3/8 to Rp 2 |
| 最高运行温度: | 90 to 150 °C, 194 to 302 °F |
| 最大流速: | 0 to 65 m3/hour |
| 配置: | 2/2 |
| 最低运行温度: | -20 °C, -4 °F |
| 安装类型: | In-line/Bodies |
| 启动类型: | Air Pilot, Electropneumatic |
| 最大运行压力: | 10 bar, 145.04 psi |
| 形状: | In-Line |
| 应用: | Pneumatic, Fluid Control |

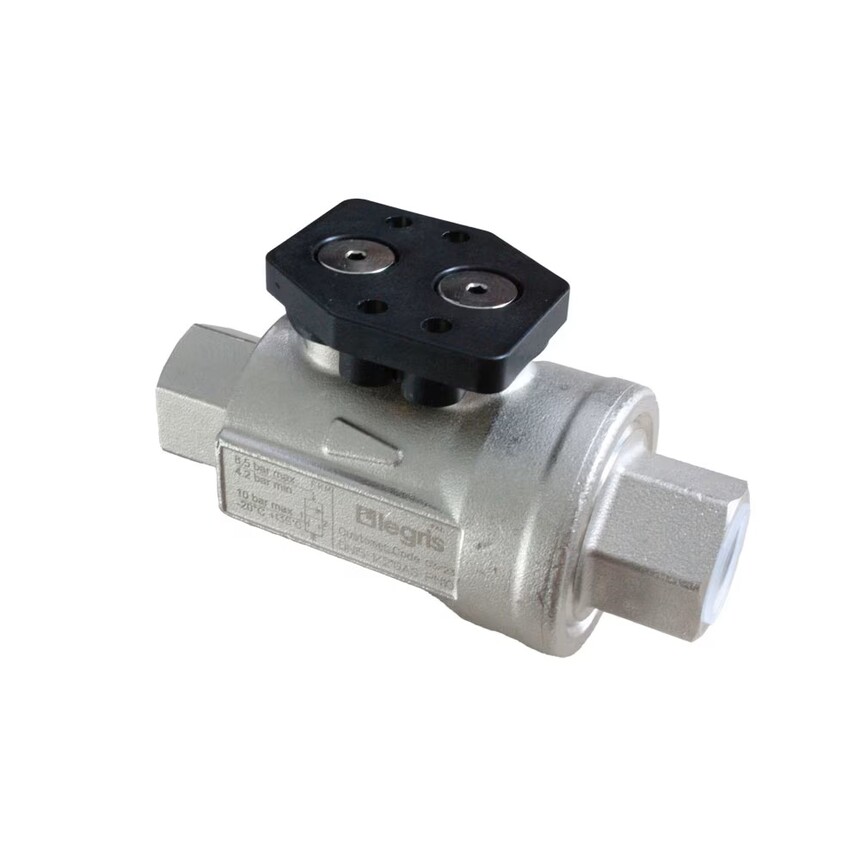

| 产品类型: | Axial Valves, Accessories for Axial Valves |
| 技术: | Fluid & Gas Handling, Pneumatics, Process Control |
| 功能: | 2-Way, Double Acting, Normally Closed, Normally Opened |
| 分部: | Low Pressure Connectors Europe Division |
| 最大先导压力: | 8.0 bar |
| 密封材料: | EPDM, FKM |
| 重量: | 0.6 to 5.1 kg For Axial Valves, 0.03 kg For Limit Switch |
| 流速: | 2.6 to 58 Kv |
| 品牌: | Legris |
| 连接类型: | BSPP |
| 端口类型: | Thread |
| 真空额定压力: | 740.0 mm-Hg |
| 阀体材料: | Nickel plated brass For Axial Valves, Polyamide For Limit Switch |
| 运行类型: | Electro-pneumatic-drive |
| 原产区: | Italy, France |
| 端口连接: | G1/8 inch |
| 数量/箱: | 1.0 |
| 符合规格: | DI: 97/23/EC (module PED A - diameters greater than 25 mm), DI: 2006/42/EC (Machinery Directive), DI: 2002/95/EC (RoHS), RG: 1907/2006 (REACH), DI: 94/9/EC (ATEX) - for pneumatic operation versions |
| 开关选件: | With or without detection |
