阀门，软管断裂/止回阀

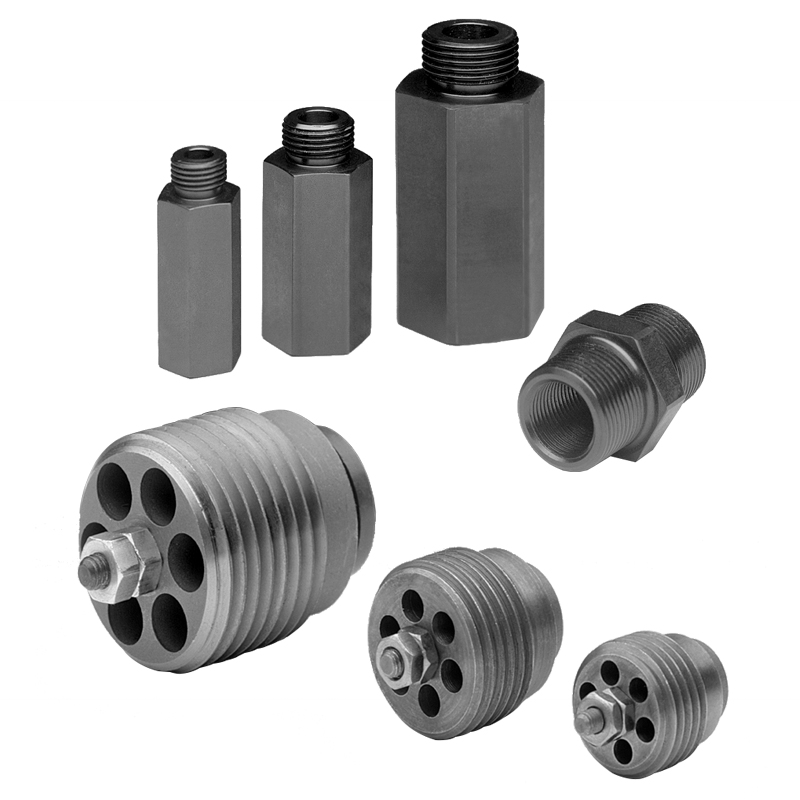

HYDAC 软管断裂阀消除了在管路破裂时执行器的不受控制的运动。它们通常与自重气缸一起使用。
这些阀是限流平座阀。
在正常流动时，提升阀芯由弹簧保持打开，弹簧具有足够的力来抵消流动对提升阀芯产生的力。
当供气管线破裂时，从 2 到 1 的流量超过指定的流速，穿过提升阀芯的 P 产生大于弹簧力的力并关闭阀门。
| 393224 | RBE-R1/4 |
| 710029 | RBE-R3/4-X-150LPM (STD. SET) |
| 480320 | RBE-R3/4-X-30LPM |
| 480309 | RBE-R3/8-X-20LPM |
| 710098 | RBE-R3/8-X-28LPM |
| 480316 | RBE-R3/8-X-35LPM |
| 710026 | RBE-R3/8-X-50LPM (STD. SET) |
| 710033 | RBE-SAE1-1/16-12-X-120LPM STD. SET |
| 2068454 | RBE-SAE3/4-16-X-2GPM |
| 2068455 | RBE-SAE3/4-16-X-3.5GPM |
| 710032 | RBE-SAE3/4-16-X-45LPM STD. SET |
| 2071594 | RBE-SAE3/4-16-X-7GPM |
| 561097 | RBE-SAE3/4-16-X-8.6GPM |
| 2073036 | RBE-SAE3/4-16-X-8GPM |
| 710030 | RBE-SAE7/8-14-X-70LPM STD. SET |
| 558418 | RBE-SAE9/16-18-X-12 |
| 710031 | RBE-SAE9/16-18-X-15LPM STD. SET |
| 2065106 | RBE-SAE9/16-18-X-1GPM |
| 2591606 | RBE-SAE9/16-18-X-4 |
| 2062818 | RBXB-NPT3/8-X-15LPM STD. SET |
| 2703021 | RBXB-NPT3/8-X-4GPM |
| 2061898 | RBXB-SAE1-1/16-12-X-120LPM STD. SET |
| 2061621 | RBXB-SAE1-1/16-12-X-30GPM |
| 2090171 | RBXB-SAE3/4-16-X-0.020" |
| 2062157 | RBXB-SAE3/4-16-X-45LPM STD. SET |
| 2069301 | RBXB-SAE3/4-16-X-8GPM |
| 2069016 | RBXB-SAE9/16-18-X-15LPM STD. SET |
| 2063213 | RBXX-SAE1-1/16-12-X-120LPM STD. SET |
| 2062656 | RBXB-SAE3/4-16-X-XX FACTORY SET |
| 2062966 | RBXB-SAE9/16-18-X-XX FACTORY SET |
| 2063518 | RBXB-SAE1-1/16-12-X-XX FACTORY SET |
| 2063519 | RBXX-SAE1-1/16-12-X-XX FACTORY SET |
| 2064476 | RBE-SAE9/16-18-X-XX FACTORY SET |
| 2064477 | RBE-SAE1-1/16-12-X-XX FACTORY SET |
| 710025 | RBE-R1/4-X-25LPM (STD. SET) |
| 710028 | RBE-R1/2-X-75LPM (STD. SET) |
| 2058129 | HOUSING RBXB 1 1/16-12SAE |
| 2069493 | RBCC-NPT3/4-X-XX FACTORY SET |
