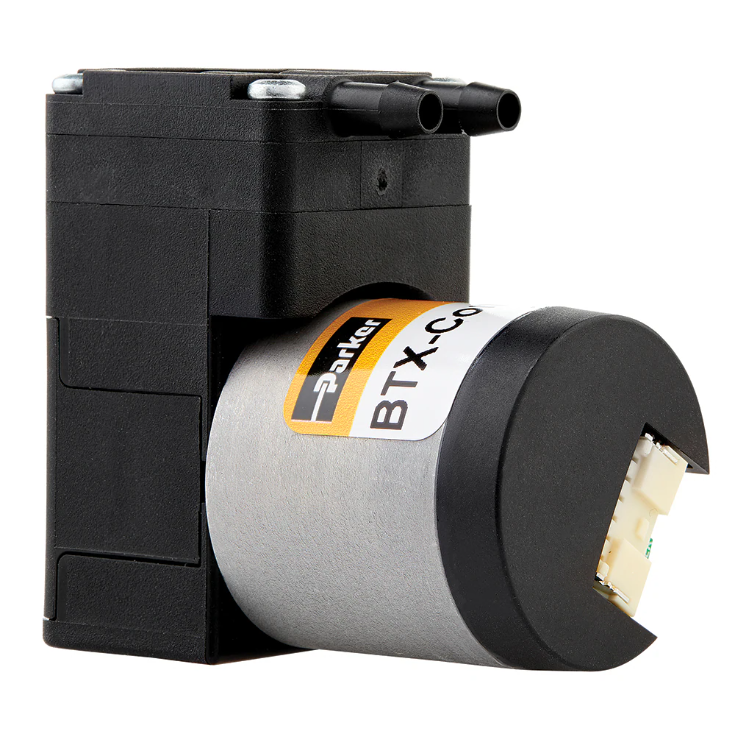

BTX-Connect 微型隔膜泵，具有卓越的性能以及可靠性。能够根据客户需求提供单/双头、压力/真空等配置选项，可以实现医疗和分析行业的多种应用。
派克的 30mm 宽 BTX 产品系列提供市场领先的可靠性和高达 11 L/min 的流量。派克的 BTX-Connect 泵产品线结合了一流的隔膜泵设计、创新的“连接”无刷电机技术、超低振动和先进的制造技术，为下一代设备需求带来下一代解决方案。
市场：
• 临床诊断
• 分析化学
• 呼吸系统
• 患者治疗
• 空气质量测量
• 香味营销
特点：
• 长达 15k 小时的连续运行
• “连接”无刷电机，提供
数字通信控制和监控- 故障安全设计，具有过流、失速和过温关闭功能
- 优化的泵平衡，实现超低振动
应用：
- 护理点诊断
- 负压伤口治疗
- 加压疗法
- 医学模拟
- 气味分散
- DVT预防
- 数字喷墨打印
- 体外诊断
| B1B-050A06AN-00 | Single Head | Up to 3.7 L/min | 6 | 3,000 hr |
| B1B-050A12AN-00 | Single Head | Up to 3.6 L/min | 12 | 3,000 hr |
| B1B-050A24AN-00 | Single Head | Up to 3.6 L/min | 24 | 3,000 hr |
| B1B-090P06AN-00 | Single Head | Up to 5.9 L/min | 6 | 3,000 hr |
| B1B-090P12AN-00 | Single Head | Up to 5.9 L/min | 12 | 3,000 hr |
| B1B-090P24AN-00 | Single Head | Up to 5.7 L/min | 24 | 3,000 hr |
| B1B-090V06AN-00 | Single Head | Up to 5.7 L/min | 6 | 3,000 hr |
| B1B-090V12AN-00 | Single Head | Up to 5.7 L/min | 12 | 3,000 hr |
| B1B-090V24AN-00 | Single Head | Up to 5.6 L/min | 24 | 3,000 hr |
| B1C-050F12AN-00 | Single Head | Up to 3.3 L/min | 12 | 15,000 hr |
| B1C-050F12AN-03 | Single Head | Up to 3.3 L/min | 12 | 15,000 hr |
| B1C-050F24AN-00 | Single Head | Up to 3.3 L/min | 24 | 15,000 hr |
| B1C-050F24AN-03 | Single Head | Up to 3.3 L/min | 24 | 15,000 hr |
| B1C-090P12AN-00 | Single Head | Up to 5.5 L/min | 12 | 15,000 hr |
| B1C-090P12AN-03 | Single Head | Up to 5.5 L/min | 12 | 15,000 hr |
| B1C-090P24AN-00 | Single Head | Up to 5.5 L/min | 24 | 15,000 hr |
| B1C-090P24AN-02 | Single Head | Up to 6.1 L/min | 24 | 15,000 hr |
| B1C-090V12AN-00 | Single Head | Up to 5.8 L/min | 12 | 15,000 hr |
| B1C-090V12AN-02 | Single Head | Up to 5.2 L/min | 12 | 15,000 hr |
| B1C-090V12AN-03 | Single Head | Up to 5.8 L/min | 12 | 15,000 hr |
| B1C-090V24AN-00 | Single Head | Up to 5.8 L/min | 24 | 15,000 hr |
| B1C-090V24AN-03 | Single Head | Up to 5.8 L/min | 24 | 15,000 hr |
| B2B-050A12AN-00 | Dual Head | Up to 6.1 L/min | 12 | 3,000 hr |
| B2C-050F12AN-00 | Dual Head | Up to 5.1 L/min | 12 | 15,000 hr |
| B2C-050F12AN-03 | Dual Head | Up to 5.1 L/min | 12 | 15,000 hr |
| B2C-050F24AN-00 | Dual Head | Up to 5.1 L/min | 24 | 15,000 hr |
| B2C-050F24AN-03 | Dual Head | Up to 5.1 L/min | 24 | 15,000 hr |
| B2C-070P12AN-00 | Dual Head | Up to 8.2 L/min | 12 | 15,000 hr |
| B2C-090V12AN-00 | Dual Head |
|
|
