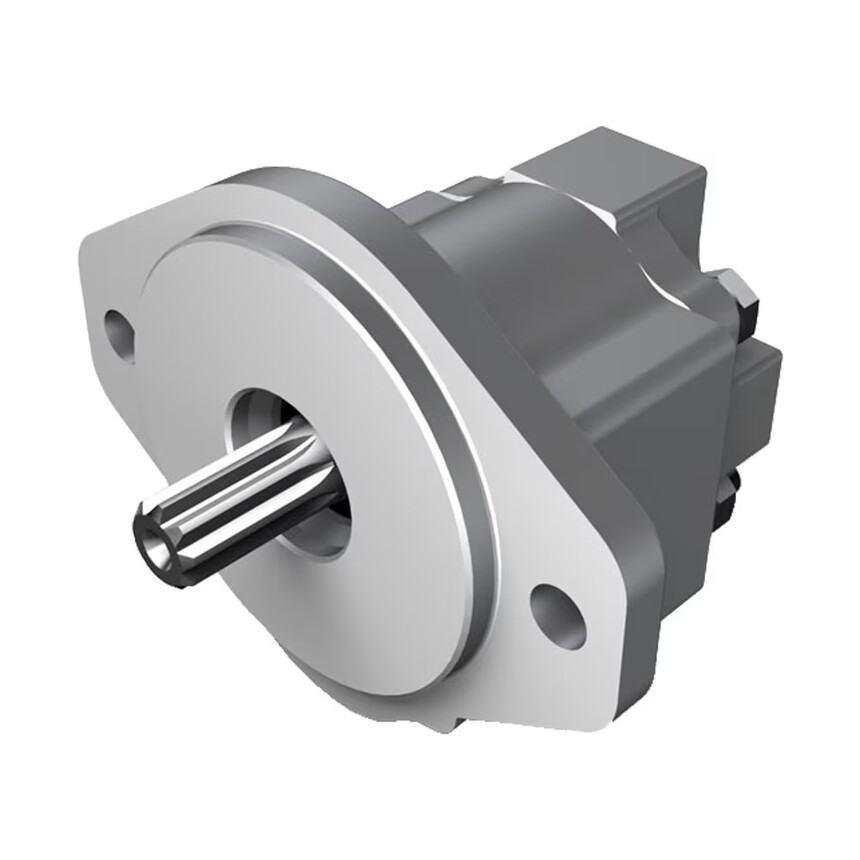

Parker 一 铝壳齿轮泵 - PGP505系列


铝壳齿轮泵 - PGP505系列

PGP 505具有可达275巴（3,988psi）的操作压力和可达4000rpm的速度。 PGP 505提供卓越的性能，在高工作压力下提供高效率和低噪声。尺寸从2-13cc。

技术规格

工作压力:up to 4350 psi, up to 300 bar
流速:n/a
排量:up to 15 cm3/rev, up to 0.92 inch3/rev
阀体材料:铝
排水选件:没有
包括供给泵:不适用
电路路径:打开
配置:单/串/多, Tandem, Multiple
控制方法:溢流阀
能量回收能力:没有
包括过滤器:没有
与流体类型共同使用:标准液压油/磷酸酯/水乙二醇, Phosphate-ester, Water-Glycol
最大排量:15 cm3/rev, 0.92 inch3/rev
最大流速:不适用 gal/min
最高流体温度:80 °C, 176 °F
最低流体温度:-15 °C, 5 °F
最大运行压力:300 bar, 4350 psi
径向负荷能力:请咨询工厂, 请咨询工厂 lb
最大工作速度:4000 RPM
最大运动粘度:7500 SUS
最小运动粘度:50 SUS
重量:2.8 kg (Max), 6.2 lb (Max)
介质:Liquid, Liquids
安装方案:SAE | ISO | DIN, ISO, DIN
端口连接:SAE | ISO | NPT | BSPP | ODT, ISO, NPT, BSPP, ODT
端口类型:法兰 |直螺纹|, Straight Threaded
端口位置:侧油口 |后油口, Rear Ports
泵类型:齿轮, 定量
旋转方向:顺时针 | 逆时针 |双向旋转, Counterclockwise, Bi-Rotational
轴类型:SAE | ISO | DIN |行业特定, ISO, DIN, Industry Specific
直通驱动能力:没有

完整的产品说明

高压力铝泵包括505和511型号。

特点：
• 可以使用单一功能和多种功能配置。
• 国际上通用的高级性能衬套式泵
• 压力平衡轴承座获得更高工作效率
• 在高的工作压力下性能优越，效率高，噪音低
• 高强度材料和大的轴伸直径降低了在高的工作压力下的轴承负荷。

应用：
• 物料搬运
• 草地护理及草坪切割
• 建筑设备
• 卡车，巴士及休闲车辆
• 市政街道清扫车
• 军事应用

派克集成阀计划是为了响应我们的OEM客户降低成本的要求而开发的。我们的应用工程师通过将通常用于机器功能的阀门集成到我们的液压泵和马达中来应对这一挑战。这种集成减少了所需的购买组件数量，减少或消除了对软管和配件（以及潜在的泄漏点）的需求，并降低了泵系统组装人工成本。

可选功能阀选项：
• 抗气蚀阀
• 泄压阀
• 电磁阀卸荷阀

品牌名称：505型号齿轮泵也以Tyrone，Commercial和Ultra品牌名称销售。
3319121163PGP5050060CK1H2NE5E3S-505A0020
3319121164PGP5050060CQ2D2NE5E2C-505A0040
3319112224PGP505A0020AA1H2MJ4J4B1B1
3319112186PGP505A0020AA1H2ND3D3B1B1
3319112180PGP505A0020AA1H2NJ4J4B1B1
3319111235PGP505A0020CA1H2ND4D3B1B1
3319111437PGP505A0020CA1H2NE2E2B1B1
3319111186PGP505A0020CA1H2NJ4J4B1B1
3319110264PGP505A0020CA2H1ND3D2B1B1
3319110267PGP505A0020CJ1H1ND3D2B1B1
3319111425PGP505A0020CJ1H1NE3E3B1B1
3319111363PGP505A0020CJ1H1VD2D2B1B1
3319111381PGP505A0020CK1H1ND3D2B1B1
3319111486PGP505A0020CQ2D2NE5E3B1B1
3319111275PGP505A0020CQ2D2NJ4J3B1B1
3319112211PGP505A0030AA1H2NE5E3B1B1
73310:4116103PGP505A0030AJ1*A1NC3C2RDAS*
3319110096PGP505A0030AJ1H1ND3D2B1B1
3319112163PGP505A0030AJ1H1ND4D3B1B1
3319112083PGP505A0030AK1H2NE5E3B1B1
3319111525PGP505A0030CA1H2ME5E3B1B1
3319111501PGP505A0030CA1H2ND3D2RDEA
3319111385PGP505A0030CA1H2NE5E3B1B1
3319111354PGP505A0030CA1H2NJ7J5B1B1
3319111466PGP505A0030CA1H2WE5E3B1B1
3319110265PGP505A0030CA2H1ND3D2B1B1
73310:4122479PGP505A0030CG1--XB1E2B1B1
73310:4122570PGP505A0030CG1--XE5E3B1B1
73310:4115519PGP505A0030CG1--XJ4J3B1B1
3319110011PGP505A0030CJ1H1ND3D2B1B1
3319111366PGP505A0030CJ1H1ND4D3B1B1
3319111426PGP505A0030CJ1H1NE3E3B1B1
3319111403PGP505A0030CJ1H1NE5E3B1B1
3319110277PGP505A0030CJ1H1VD3D2B1B1
3319110281PGP505A0030CJ1H2ND3D2B1B1
3319111457PGP505A0030CK1H1ND3D2B1B1
3319111159PGP505A0030CK1H2NE5E3B1B1
3319111421PGP505A0030CQ2D2NE3E2B1B1
3319111337PGP505A0030CQ2D2NE5E3B1B1
3319111276PGP505A0030CQ2D2NJ4J3B1B1
3319111334PGP505A0030CQ2D2NJ7J5B1B1
3319112238PGP505A0040AA1H2ND4D4B1B1
3319112245PGP505A0040AA1H2NE5E3B1B1
3319112179PGP505A0040AA1H2NJ4J4B1B1
3319112084PGP505A0040AK1H2NE5E3B1B1
3319112061PGP505A0040AQ2D2NJ7J5B1B1
3319110206PGP505A0040AZ1Z2WD2D2B1B1
3319111539PGP505A0040CA1H2NB1B1E2E2
3319111519PGP505A0040CA1H2NB1B1E3E3
3319111386PGP505A0040CA1H2NE5E3B1B1
3319111251PGP505A0040CA1H2NJ4J4B1B1
3319111439PGP505A0040CA1H2NJ7J5B1B1
73310:4118572PGP505A0040CG1--XD4D4B1B1
73310:4108614PGP505A0040CG1--XJ4J3B1B1
73310:4119815PGP505A0040CG1--XJ7J5B1B1
3319110010PGP505A0040CJ1H1ND3D2B1B1
3319111353PGP505A0040CJ1H1ND4D3B1B1
3319111152PGP505A0040CJ1H1NE3E3B1B1
3319111155PGP505A0040CJ1H1NE5E3B1B1
3319111178PGP505A0040CJ1H1WE5E3B1B1
3319111332PGP505A0040CJ1H2WE3E2B1B1
3319111327PGP505A0040CK1H1ND3D2B1B1
3319111321PGP505A0040CK1H1NE5E3B1B1
3319111400PGP505A0040CK1H2ND5D4B1B1
3319111252PGP505A0040CK1H2NE5E3B1B1
3319111430PGP505A0040CQ2D2NE3B1B1E3
3319111338PGP505A0040CQ2D2NE5E3B1B1
3319111277PGP505A0040CQ2D2NJ4J3B1B1
3319111039PGP505A0040CQ2D2NJ7J5B1B1
3319111445PGP505A0040CQ2D3NE5E3B1B1
3319110289PGP505A0050AA1H1ND3D2B1B1
3319112202PGP505A0050AA1H2ND4D3B1B1
3319112247PGP505A0050AA1H2ND4D4B1B1
3319112091PGP505A0050AA1H2ND5D4B1B1
3319112244PGP505A0050AA1H2WE5E3B1B1
3319112097PGP505A0050AA1H2WG4G3B1B1
73310:4114210PGP505A0050AG1--XD4D3B1B1
73310:4116770PGP505A0050AG1--XJ7J5B1B1
3319112157PGP505A0050AJ2D3ND3D3B1B1
3319111139PGP505A0050CA1H2NE3E3B1B1
3319111196PGP505A0050CA1H2NJ4J4B1B1
3319111440PGP505A0050CA1H2NJ7J5B1B1
3319110262PGP505A0050CA2H1ND3D2B1B1
73310:4116715PGP505A0050CG1--XJ7J5B1B1
3319110098PGP505A0050CJ1H1ND3D2B1B1
3319111313PGP505A0050CJ1H1ND3D2B1B1
3319111367PGP505A0050CJ1H1ND4D3B1B1
3319111402PGP505A0050CJ1H1NE5E3B1B1
3319111374PGP505A0050CJ1H2NE5E3B1B1
3319111234PGP505A0050CK1D3NG3G1B1B1
3319111460PGP505A0050CK1H1NE5E3B1B1
3319111343PGP505A0050CK1H2NE5E3B1B1
3319111371PGP505A0050CK1H2NK5K5B1B1
3319111395PGP505A0050CQ1D3NE3E3B1B1
3319111323PGP505A0050CQ2D2NE5E3B1B1
3319111278PGP505A0050CQ2D2NJ4J3B1B1
3319111335PGP505A0050CQ2D2NJ7J5B1B1
73310:4115825PGP505A0055CG1--BB1J5B1B1
3319112240PGP505A0060AA1H2ND5D4B1B1
3319112171PGP505A0060AA1H2NJ7J5B1B1
3319112254PGP505A0060AA1H2WE5E3B1B1
3319110296PGP505A0060AA2H1ND3D2B1B1
73310:4118754PGP505A0060AG1--WE2E2B1B1
73310:4120633PGP505A0060AG1--WE3E2B1B1
73310:4116726PGP505A0060AG1--XJ7J5B1B1
3319110100PGP505A0060AJ1H1ND3D2B1B1
3319112155PGP505A0060AJ1H2NE5E3B1B1
3319112085PGP505A0060AK1H2NE5E3B1B1
3319112195PGP505A0060AQ1D3NE5E3B1B1
3319112166PGP505A0060AQ1D3NK5K5B1B1
3319112077PGP505A0060AQ2D2NJ7J5B1B1
3319110261PGP505A0060CA1H1ND3D2B1B1
3319111507PGP505A0060CA1H1ND5D3B1B1
3319111522PGP505A0060CA1H1WD5D3B1B1
3319111502PGP505A0060CA1H2ND3D2RDEA
3319111461PGP505A0060CA1H2ND4D3B1B1
3319111387PGP505A0060CA1H2NE5E3B1B1
3319111105PGP505A0060CA1H2NJ7J5B1B1
3319110263PGP505A0060CA2H1ND3D2B1B1
73310:4112714PGP505A0060CG1--XD5D3B1B1
3319110101PGP505A0060CJ1H1ND3D2B1B1
3319111420PGP505A0060CJ1H1ND4D3B1B1
3319111153PGP505A0060CJ1H1NE3E3B1B1
3319111424PGP505A0060CJ1H1WD3D2B1B1
3319111480PGP505A0060CJ1H2NE5E3B1B1
3319111380PGP505A0060CK1D3NE3E3B1B1
3319111232PGP505A0060CK1H1ND5D3B1B1
3319111357PGP505A0060CK1H2NB1B1E3E3
3319111222PGP505A0060CK1H2ND5D4B1B1
3319111161PGP505A0060CK1H2NE5E3B1B1
3319111404PGP505A0060CK1H2WE3E3
