用于流体控制电磁阀的IECEx/ATEX电气部件 # Parker // 派克

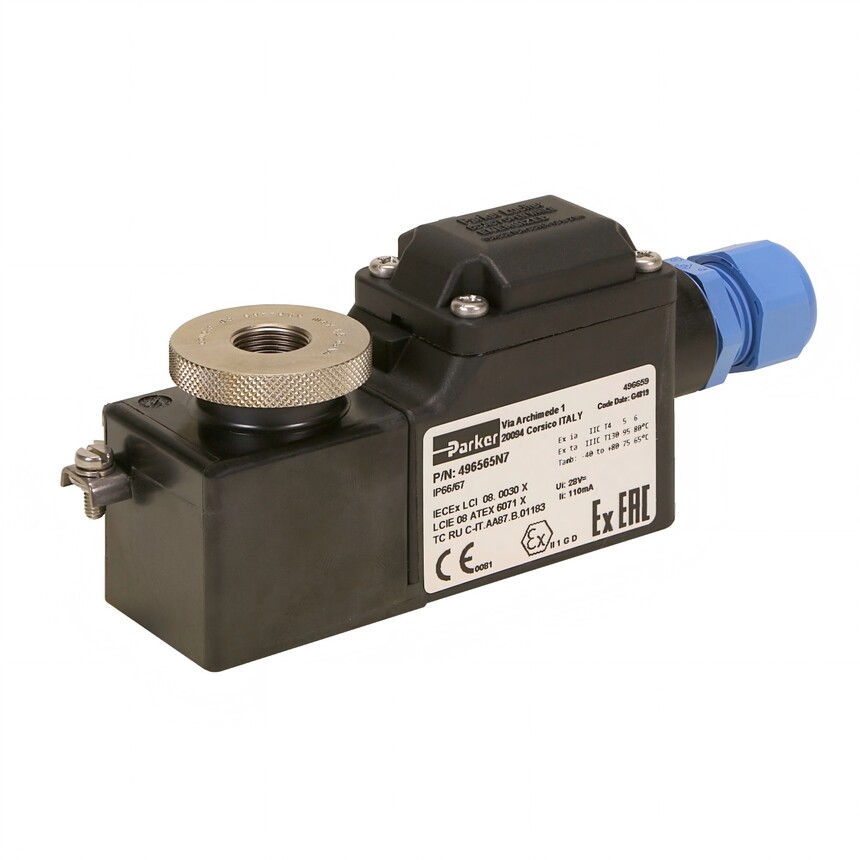

用于流体控制电磁阀的IECEx/ATEX电气部件

经IECEx和ATEX认证、可在危险区域使用的各种派克电气部件。

技术规格

线圈功耗:3W, 0.3W to 2.3W, 0.3W to 1.2W, 2.5W, 8W, 9W, 6 W, 2W, 6W, 8 W, 0.3W to 3W, 0.5W to 3W, 5W, 11 W, 1W to 1.8 W, 11W, 13W, 14W, 2 W, 7 W
Coil Temperature Range:-40°C 55°C, -40°C 65°C, -40°C 80°C / 75°C / 65°C, -40°C 85°C / 65°C, -40°C 75°C / 40°C, -40°C 80°C / 65°C / 55°C, -40°C 80°C, -40°C 65°C / 50°C / 35°C, -50 80°C / 60°C / 40°C, -40°C 65°C / 50°C, -40°C 50°C, -40°C 65°C / 40°C, -40°C
符合规格:CE - EAC, CE, CE

完整的产品说明

派克为过程控制行业提供各种IECEx和ATEX电气部件，包括多种用于危险区域防爆产品解决方案。该系列包括了适用于相关行业的多领域的产品解决方案：从用于海上应用、耐腐蚀性高的316L解决方案到用于管道或NAMUR阀门、小巧紧凑的2区选配件，不一而足。无论在哪种情况下，实际的优势是线圈的模块化。可在同一个阀门上安装不同的选配件，而不同的阀门可以采用相同的线圈设计进行装配。派克提供的这一新颖价值可以优化总拥有成本，提供高稳定性、高灵活性和高竞争力。

市场：
- 发电
- 石油天然气
- 制药
- 食品和饮料的生产、储存
- 化工生产

应用：
- 管道或Namur阀门控制
- 阀门驱动

特点/优势：
- 线圈模块化
- 丰富的保护模式
产品电源电压符合 ATEX 规格
482605C224V DCII 2 G - Ex mb IIC T4
4826060A110-115V 50HzII 2 G - Ex mb IIC T4 / T5
4826061603D220-230V 50HzII 2 G - Ex mb IIC T4 / T5
482606160C224V DCII 2 G - Ex mb IIC T4 / T5
4826063D220-230V 50HzII 2 G - Ex mb IIC T4 / T5
482606A224V 50HzII 2 G - Ex mb IIC T4 / T5
482606A448V 50HzII 2 G - Ex mb IIC T4 / T5
482606C112VDCII 2 G - Ex mb IIC T4 / T5
482606C224V DCII 2 G - Ex mb IIC T4 / T5
48287001N728V DCII 1 G - Ex ia IIC - T6
4833710A110-115V 50HzII 2 G - Ex eb IIC T4
4833713D220-230V 50HzII 2 G - Ex eb IIC T4
4833714K220-240V 60HzII 2 G - Ex eb IIC T4
483371A224V 50HzII 2 G - Ex eb IIC T4
483371B224V 60HzII 2 G - Ex eb IIC T4
483371C112VDCII 2 G - Ex eb IIC T4
483371C224V DCII 2 G - Ex eb IIC T4
483371C5110V DCII 2 G - Ex eb IIC T4
483371C7220V DCII 2 G - Ex eb IIC T4
48358001N728V DCII 1 G Ex ia IIC T6
48396001N728V DCII 1 G - Ex ia IIC - T6
48865001N728VDCII 1 G - Ex ia IIC - T6
490885L830V DCII 1 G Ex ia IIC T6 ( FM)
492070C224V DCII 2 G - Ex mb IIC T4/ T5
492070P2110V 50/60HzII 2 G - Ex mb IIC T4/ T5
492070P9230V 50/60HzII 2 G - Ex mb IIC T4/ T5
492190C224V DCII 2 G - Ex eb mb IIC T3 / T4
492190C448V DCII 2 G - Ex eb mb IIC T3 / T4
492190C5110V DCII 2 G - Ex eb mb IIC T3 / T4
492190C7220V DCII 2 G - Ex eb mb IIC T3 / T4
492190P024V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492190P2110V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492190P9230V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492190Q1240V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492190R5220V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492190S448V 50/60HzII 2 G - Ex eb mb IIC T3 / T4
492210C2U nominal = 24 VDC (C2), Umin = 21.6 VDCII 2 G - Ex eb mb II T4 / T5
492310C224V DCII 2 G - Ex eb mb II T4 / T5
492310C448V DCII 2 G - Ex eb mb II T4 / T5
492310P2110V 50/60HzII 2 G - Ex eb mb II T4 / T5
492310R5220V 50/60HzII 2 G - Ex eb mb II T4 / T5
49296501N728V DCII 1 G - Ex ia IIC - T6
49296502N728V DCII 1 G - Ex ia IIC - T6
49364060C224V DCII 2 G Ex db mb IIC T4/T5
493640C224V DCII 2 G Ex db mb IIC T4/T5
493640P3110V 50Hz - 120V 60HzII 2 G Ex db mb IIC T4/T5
493640Q3220V 50Hz - 240V 60HzII 2 G Ex db mb IIC T4/T5
4940403D220-230V 50HzII 2 G - Ex eb IIC T3 / T4
4940405P380V 50Hz - 440V 60HzII 2 G - Ex eb IIC T3 / T4
494040C224V DCII 2 G - Ex eb IIC T3 / T4
4958653D220-230V 50HzII 3 G Ex nAc nCc IIC T5
4958656J110-115V 60HzII 3 G Ex nAc nCc IIC T5
495865A224V 50HzII 3 G Ex nAc nCc IIC T5
495865C224V DCII 3 G Ex nAc nCc IIC T5
4958703D220-230V 50HzII 3 G Ex nAc nCc IIC T3/T4
495870A224V 50HzII 3 G Ex nAc nCc IIC T3/T4
495870A5110V 50HzII 3 G Ex nAc nCc IIC T3/T4
495870C224V DCII 3 G Ex nAc nCc IIC T3/T4
495870C448V DCII 3 G Ex nAc nCc IIC T3/T4
495875C224V DCII 3 G Ex nAc nCc IIC T3/T4
495880A224V 50HzII 3 G Ex nAc nCc IIC T3
495880A548V 50HzII 3 G Ex nAc nCc IIC T3
495880C224V DCII 3 G Ex nAc nCc IIC T3
495900A224V 50HzII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495900A448V 50HzII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495900C224V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495900C448V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495900C5110V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495900F4230V 50HzII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
495905A224V 50HzII 2 G Ex db mb IIC T4 Gb
495905A448V 50HzII 2 G Ex db mb IIC T4 Gb
495905B8240V 60HzII 2 G Ex db mb IIC T4 Gb
495905C224V DCII 2 G Ex db mb IIC T4
495905C448V DCII 2 G Ex db mb IIC T4
495905C5110V DCII 2 G Ex db mb IIC T4
495905F4230V 50HzII 2 G Ex db mb IIC T4 Gb
495905K8115V 60HzII 2 G Ex db mb IIC T4 Gb
495910N728V DCII 1 G - Ex ia IIC - T4 / T5 / T6
4959151P110-115V 50/60HzII 3 G Ex nAc nCc IIC T3
495915C224V DCII 3 G Ex nAc nCc IIC T3
495915C448V DCII 3 G Ex nAc nCc IIC T3
496155C224V DCII 3 G Ex nAc nCc IIC T3
496155F4230V 50HzII 3 G Ex nAc nCc IIC T3
496555C224V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
496555C448V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
496555C5110V DCII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
496555P9230V 50/60HzII 2 G - Ex db mb IIC T4 / T5 / T6 Gb
496560C224V DCII 2 G - Ex db mb IIC T4 Gb
496560C448V DCII 2 G - Ex db mb IIC T4 Gb
496560C5110V DCII 2 G - Ex db mb IIC T4 Gb
496560P9230V 50/60HzII 2 G - Ex db mb IIC T4 Gb
496565N728 VDCII 1 G - Ex ia IIC - T4 / T5 / T6
496637C112 V DCII 3 G Ex nAc nCc IIC T5
496637C224V DCII 3 G Ex nAc nCc IIC T5
496637C448 V DCII 3 G Ex nAc nCc IIC T5
496637P024V 50/60HzII 3 G Ex nAc nCc IIC T5
496637P2110V 50/60HzII 3 G Ex nAc nCc IIC T5
496637P9230V 50/60HzII 3 G Ex nAc nCc IIC T5
496637S448V 50/60HzII 3 G Ex nAc nCc IIC T5
49670002C224V DCII 2 G Ex db mb IIC T4 / T5 / T6 Gb
49670002P2110V 50/60HzII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496700C224V DCII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496700C448V DCII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496700C5110V DCII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496700P2110V 50/60HzII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496700P9230V 50/60HzII 2 G Ex db mb IIC T4 / T5 / T6 Gb
496800C224V DCII 2 G - Ex db mb IIC T4 Gb
496800P2110V 50/60HzII 2 G - Ex db mb IIC T4 Gb
497105021P110-115V 50-60HzII 2 G - Ex db IIC T4 / T5 / T6
49710502C224V DCII 2 G - Ex db IIC T4 / T5 / T6
49710502C448V DCII 2 G - Ex db IIC T4 / T5 / T6
4971051P110-115V 50-60HzII 2 G - Ex db IIC T4 / T5 / T6
4971053P220-230V 50-60HzII 2 G - Ex db IIC T4 / T5 / T6
497105C224V DCII 2 G - Ex db IIC T4 / T5 / T6
497105C448V DCII 2 G - Ex db IIC T4 / T5 / T6
495900E5115V 50HzII 2 G - Ex db mb IIC T4 / T5 / T6
495905E5115V 50HzII 2 G Ex db mb IIC T4 Gb
