Z系列低铅铜系列是一套用于健康饮料分配应用的直动式截止阀。此系列为G1/8”端口的阀门系列采用符合食品标准的材料制造，经NSF认证，可与饮用水和液体接触。 | Coil Temperature Range: | -40 50 °C, - | | 功能: | Normally Closed | | 启动类型: | Direct Acting | | 端口尺寸: | 1/8"G | | 端口类型: | Pipe Mounting | | 阀体材料: | CW510L UNI EN 12165 | | 介质: | Air, Water, Steam | | 阀座材料: | Stainless Steel | | 排气孔尺寸: | -,2,5 mm | | 流量系数 1: | 1,5l/min, 3,5l/min, 1,4l/min, 2,6l/min, 4,5l/min, 2,0l/min, 3,0l/min, 3,7l/min | | 流量系数 2: | 0.09 m3/hour, 0.21 m3/hour, 0.08 m3/hour, 0.16 m3/hour, 0.27 m3/hour, 0.12 m3/hour, 0.18 m3/hour, 0.22 m3/hour | | 最小运行压力: | 0 bar | | 最低流体温度: | -10 °C | | 最高流体温度: | 140 °C | | 线圈功耗: | 14W, -, 9W, 13W, 10W | | 电气连接: | 2 P E plug according to EN 175301-803 type A, - | | 绝缘级别: | F 155°C, -, H 180°C | | 符合线圈规格: | CE - UL - EAC, -, CE - VDE - EAC, CE - VDE - UL - EAC, CE - EAC | | 符合规格: | NSF169 - 1935/2004/CE |

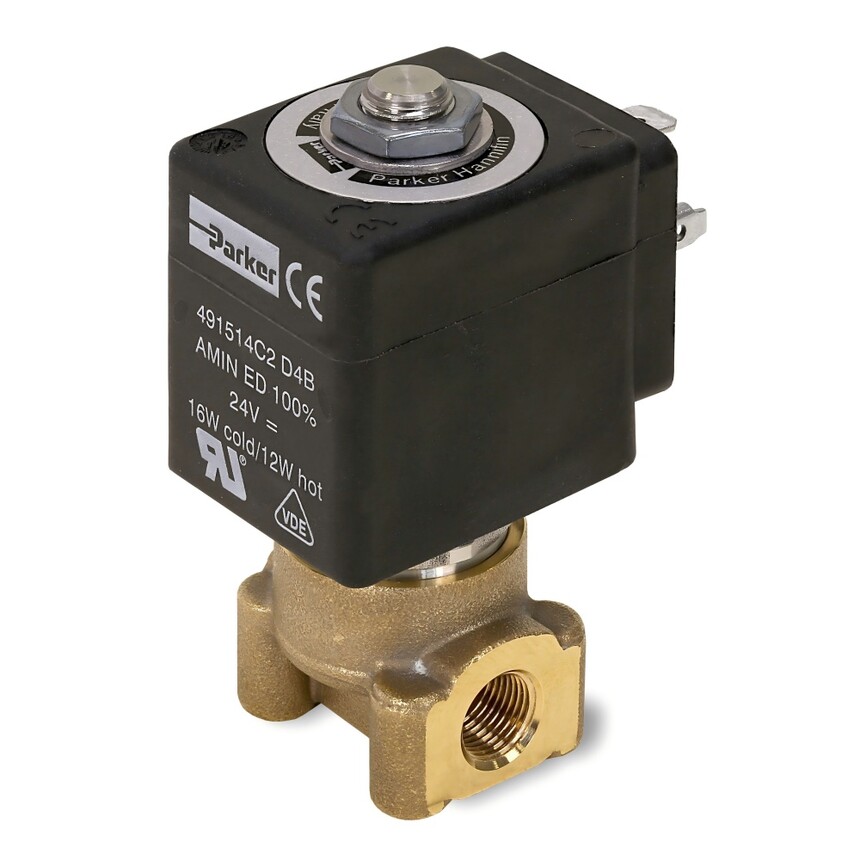

Z系列低铅铜电磁阀是一系列用于健康饮料分配应用的直动式截止阀。该系列为客户提供了紧凑且高性能的解决方案，获得高操作压力。该系列带有FDA FKM或Ruby密封，不锈钢阀芯，在使用中具有卓越的寿命、流体兼容性和抗水垢性。它还兼容多种线圈，符合相关行业的全球电气标准。
市场：
- 咖啡机
- 热饮自动售货机
- 自动饮水机
应用：
- 锅炉装水控制
- 蒸汽控制
- 冷水、热水和过热水关闭
- 冷水和蒸汽混合
特点/优势：
- NSF169
- 1935/2004/Ce认证
- 包含VDE和UL认证的多种电气部件
- 抗水垢性
- 紧凑且坚固 | 产品 | 状态 | 电源电压 | | 121ZH0015 |
| - | | 121ZH0020 |
| - | | 121ZH0025 |
| - | | 121ZH0030 |
| - | | 121ZH1015 |
| - | | 121ZH1015-2995-496082P3 |
| 110V 50Hz - 120V 60Hz | | 121ZH1015-2995-496082Q3 |
| 220V 50Hz - 240V 60Hz | | 121ZH1020 |
| - | | 121ZH1025 |
| - | | 121ZH1025-2995-482722P6 | 过时的 | 200V 50/60Hz | | 121ZH1025-2995-483510S6 |
| 220-240V 50Hz - 240V 60Hz | | 121ZH1025-2995-491514P3 |
| 110V 50Hz - 120V 60Hz | | 121ZH1025-2995-492425C2 |
| 24V DC | | 121ZH1030 |
| - | | 131ZH0115 |
| - | | 131ZH0115-2995-491514P3 |
| 110V 50Hz - 120V 60Hz | | 131ZH0120 |
| - | | 131ZH0125 |
| - | | 131ZH0130 |
| - | | 131ZH1115 |
| - | | 131ZH1120 |
| - | | 131ZH1125 |
| - | | 131ZH1130 |
| - | | 121ZH0010 |
| - | | 121ZH0025-2995-491514U3 |
| 208-240V 60Hz | | 121ZH1010 |
| - | | 121ZH1010-2995-491514P3 |
| 110V 50Hz - 120V 60Hz | | 121ZH1010-2995-491514Q3 |
| 220V 50Hz - 240V 60Hz | | 121ZH1015-2995 |
| - | | 121ZH1025-2995-491514U3 |
| 208-240V 60Hz | | 131ZH0315 |
| - | | 131ZH0320 |
| - | | 131ZH0325 |
| - | | 131ZH0330 |
| - | | 131ZH1315 |
| - | | 131ZH1320 |
| - | | 131ZH1325 |
| - | | 131ZH1330 |
| - | | U121ZH0010 |
| - | | U121ZH0015 |
| - | | U121ZH0020 |
| - | | U121ZH0025 |
| - | | U121ZH0030 |
| - | | U121ZH1010 |
| - | | U121ZH1015 |
| - | | U121ZH1020 |
| - | | U121ZH1025 |
| - | | U121ZH1030 |
| - | | U131ZH0115 |
| - | | U131ZH0120 |
| - | | U131ZH0125 |
| - | | U131ZH0130 |
| - | | U131ZH1115 |
| - | | U131ZH1120 |
| - | | U131ZH1125 |
| - | | U131ZH1130 |
| - | | 121ZH1025-2995-481865P6 |
| - | | 131ZH0115-2995-481865P6 |
| - | | 131ZH0115-2995-481865T7 |
| - | | 131ZH0130-2995-481865C2 |
| - | | 121ZH1010-2995-4818651W |
| - | | 121ZH1015-2995-4818651W |
| - | | 131ZH1125-2995-481865S6 |
| - | | 131ZH1125-2995-481865T8 |
| - |
|
|
