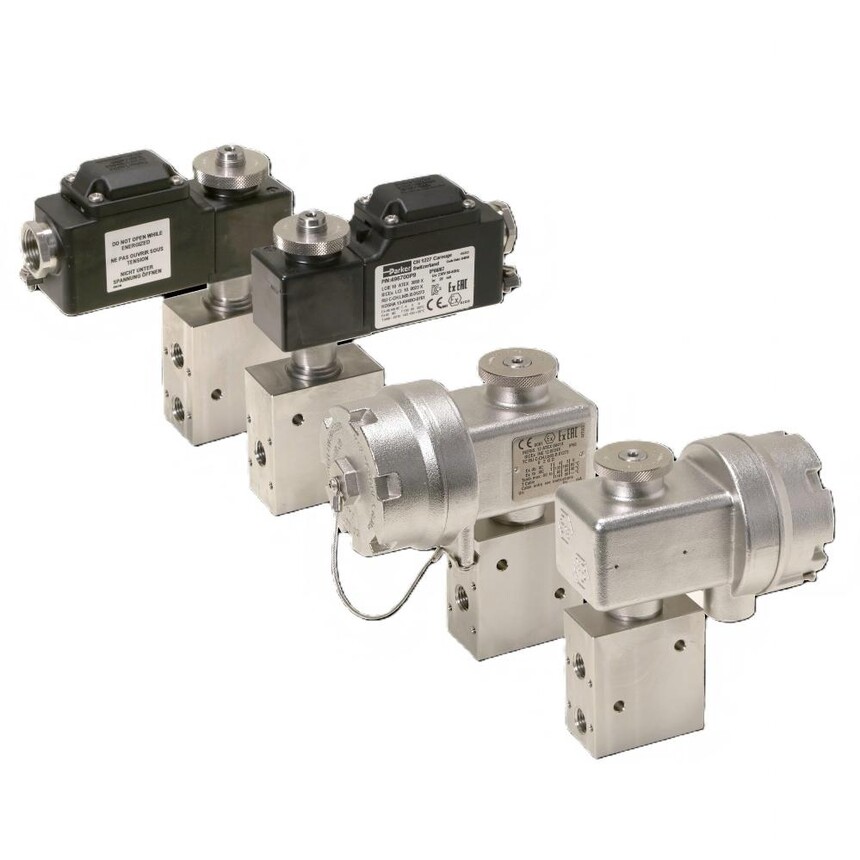

用于关键过程控制应用的X系列提升阀 # Parker // 派克
X系列重载提升阀是全系列的管道安装和NAMUR贴板安装的直动式阀门，用于安全、稳定地控制过程控制行业应用中的气动执行器。 | 阀门类型: | 3/2 Way | | 端口类型: | Pipe mounting, Namur, Pipe mounting , Sub-base mounting | | 阀体材料: | Anodized aluminium, CW 614N UNI EN 12164, 316L stainless steel | | 介质: | Air | | 孔口尺寸: | 6 mm, 14 mm | | 流量系数 1: | 680 L/min, 560 L/min, 2500 L/min | | 最小运行压力: | 0 bar, 4 bar | | 密封材料: | NBR, FKM, VMQ | | 线圈功耗: | 6 W, 0.3W to 3W, 0.3W to 2.3W, 1W to 1.8 W, 0.3W to 1.2W, 8 W | | 电气连接: | Connection box with terminals and cable entry via gland M20 x 1.5. Possibility for additional earth via external screw., Cable connection through a stainless steel cable gland M20 x 1.5 allowing use of cable diameter from 10 to 12 mm. Additional earth connection possible with external screw terminal., Electric connection is done in the connection box passes through a M20x1.5 thread in which a certified Ex dBIIC cable gland must be installed, Cable connection through a plastic cable gland M20 x 1.5 allowing use of cable diameter from 7 to 12 mm. Additional earth connection possible with external screw terminal., With DIN plug 492459 (AC) or 486586 (DC) | | Coil Temperature Range: | -40°C 75°C / 40°C, -40°C 65°C, -40°C 65°C / 50°C / 35°C, -40°C 80°C / 75°C / 65°C, -40°C 50°C | | 符合线圈规格: | CE - EAC, CE | | 符合规格: | Manual reset, Valve delivered with an individual material traceability certificate (2.2 following EN10204). Manual reset., Valve delivered with an individual material traceability certificate (2.2 following EN10204). Special manual reset., Valve delivered with an individual material traceability certificate (2.2 following EN10204), Valve delivered with an individual material traceability certificate (2.2 following EN10204). With manual override. | | 符合 ATEX 规格: | II 2 G - Ex eb mb II T4 / T5, II 1 G - Ex ia IIC - T6, II 2 G Ex db mb IIC T4 / T5 / T6, II 1 G - Ex ia IIC - T4 / T5 / T6 |
X系列是一种重载直动式阀门，用于过程控制行业中的气动执行器控制。提升式设计和直动式控制使该产品即使在关键的海上应用和/或恶劣的环境中也保持高稳定性表现。很多固定点可以帮助安装者将其安装在面板上。独特的线圈模块化结合我们的ATEX线圈计划，可以优化总拥有成本，提供快速安装和维护、高灵活性和高竞争力。该系列获得了第三方的SIL许可。
市场：
- 发电
- 核能
- 陆上和海上石油天然气
- 化工
- 石化
- 炼油厂
应用：
- 阀门驱动
特点/优势：
- 重载
- 低温特性
- 严苛环境下的稳定性
- 提供包含Atex在内的多种线圈 | 产品 | 电源电压 | | 131X1131 | - | | 133X01 | - | | U033X0111 | - | | U033X5156 | - | | U033X5156-48287001N7 | 28V DC | | U033X5156-492310C2 | 24V DC | | U033X5195 | - | | U033X5195-48287001N7 | 28V DC | | U033X7759 | - | | U131X1201 | - | | U133X01 | - | | U133X0111 | - | | U133X0111-496700C4 | 48V DC | | U133X5156 | - | | U133X5156-49296501N7 | 28V DC | | U133X5156-496700C2 | 24V DC | | U133X5195 | - | | U133X5196 | - | | U133X5196-492310C2 | 24V DC | | U133X5196-49296501N7 | 28V DC | | U133X5296 | - | | U133X5296-49296501N7 | 28V DC | | U133X7709 | - | | U133X7709-496700C2 | 24V DC | | U133X7709-496700P9 | 230V 50/60Hz | | U133X7709-496895C2 | 24V DC | | U133X7759 | - | | U133X7759-496700C2 | 24V DC | | U331X2309 | - | | U133X5195-49296501N7 | 28V DC | | U133X5196-49296502N7 | 28V DC | | U133X7156 | - | | U133X7196 | - | | U133X7196-496565N7 | 28V DC | | U133X7196-496700C2 | 24V DC | | U133X7196-496700C4 | 48V DC | | U133X7196-496700P9 | 230V/50-60Hz | | U133X7709-496565N7 | 28V DC |
|
|
