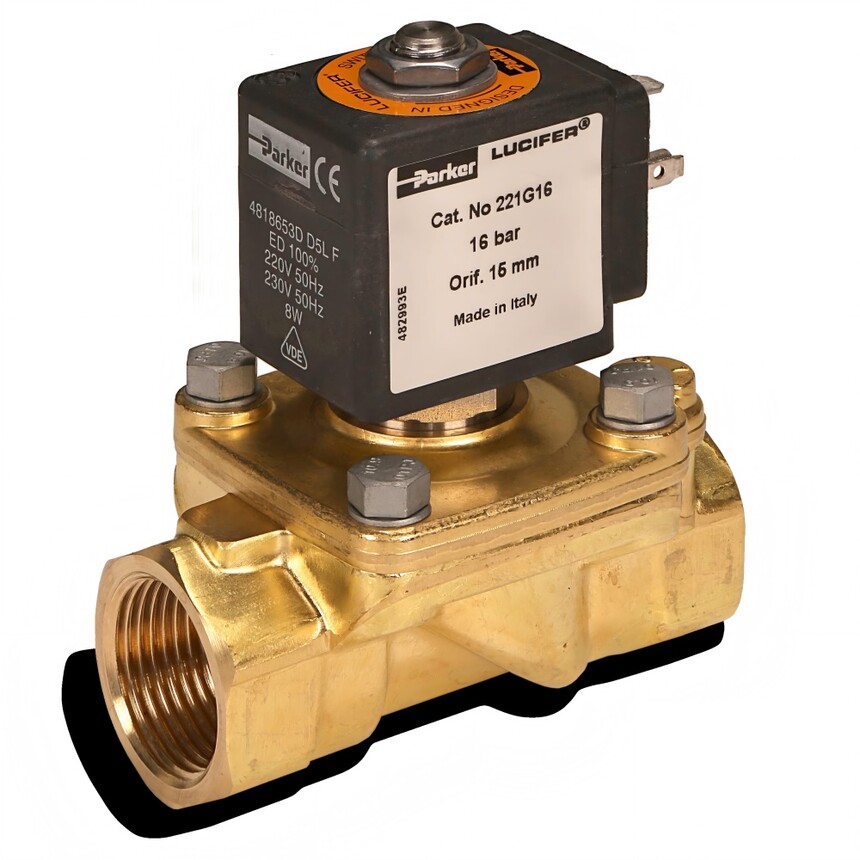

用于工业控制和过程控制应用的G系列直动式和非直动式电磁阀 # Parker // 派克
G系列是全系列的直动式和非直动式电磁阀产品，常闭和常开式，端口从1/2"到2"不等，提供多种密封材料和不同的流速。 | 阀门类型: | 2/2 Way | | 端口类型: | Pipe Mounting | | 阀体材料: | CW 617N UNI EN 12165 | | 介质: | Oils, Air, Inert Gases, Liquids, Hot water, steam, Water, Neutral Liquids, Industrial Oxygen, Air | | 阀座材料: | Brass | | 孔口尺寸: | 11 mm, 14 mm, 15 mm, 25 mm, 20 mm, 28 mm, 40 mm, 41 mm, 14,5 mm | | 流量系数 2: | 1,32 m3/h, 1,5 m3/h, 3,9 m3/h, 4,8 m3/h, 4,8 l/min, 10,2 m3/h, 9,6 m3/h, 8,1 m3/h, 16,2 m3/h, 3,6 m3/h, 10,8 m3/h, 25,2 m3/h, 32,4 m3/h, 4501 Nl/min, 3 m3/h, -, 11,1 m3/h | | 最小运行压力: | 0 bar, 0,3 bar | | 最高流体温度: | 160 °C, 100 °C, 140 °C, 120 °C, 20 °C, 75 °C | | 线圈功耗: | 20W, -, 9W, 8W, 19W, 14W, 11W | | Coil Temperature Range: | -40 50 °C, -, -40 120 °C, -40 80°C, -40 65 °C | | 绝缘级别: | H 180 °C, -, F 155 °C |
G系列直动式和非直动式电磁阀系列包含多种选配件，符合工业和过程市场中高难度应用的要求。由于采用了加强型膜片设计和不锈钢操作器，该系列可实现出色的稳定性，使用寿命多达百万次。该产品解决方案可以在各种重载、高要求的应用中优化成本。
市场：
- 工业
- 过程控制
应用：
- 压缩机和空气处理
- 流体和气体控制/处理
- 安全或严苛环境中的执行器控制，包括ATEX
- 水和蒸汽控制
- 燃油器
特点/优点：
- 广泛的电气部件，包括VDE、UL和ATEX认证
- 没有低压力要求的磁悬浮操作阀
- 长寿命 | 产品 | 电源电压 | | 121G2320-852023-483541B5 | 110V 60Hz | | 121G2320-852023-483541P8 | 115V 50Hz - 120V 60Hz | | 121G2320-876024-483541P8 | 115V 50Hz - 120V 60Hz | | 121G2320-876024-483541T1 | 230V 50Hz - 240V 60Hz | | 121G2520-852023-483541P8 | 115V 50Hz - 120V 60Hz | | 121G2520-852023-483541T1 | 230V 50Hz - 240V 60Hz | | 121G2520-876024-483541P8 | 115V 50Hz - 120V 60Hz | | 121G2523-852023-483824T1 | 230V 50Hz - 240V 60Hz | | 121G2523-852025-483824P8 | 115V 50Hz - 120V 60Hz | | 121G2523-876024-483824P8 | 115V 50Hz - 120V 60Hz | | 221G13 | - | | 221G13-2995-4818653D | 220-230V 50Hz | | 221G13-2995-492425C2 | 24V DC | | 221G1303 | - | | 221G1330-2995-482725C2 | 24V DC | | 221G15 | - | | 221G15-2995 | - | | 221G15-2995-4818653D | 220-230V 50Hz | | 221G15-2995-481865A2 | 24V 50Hz | | 221G15-2995-481865A5 | 110V 50Hz | | 221G15-2995-482635S6 | 220-240V 50Hz - 240V 60Hz | | 221G15-2995-4827253D | 220-230V 50Hz | | 221G15-2995-492425C2 | 24V DC | | 221G15-4270-486265C1 | 12V DC | | 221G15-4270-486265C2 | 24V DC | | 221G1501 | - | | 221G1503 | - | | 221G1503-2995-4818653D | 220-230V 50Hz | | 221G1503-4270-486265A7 | 220V 50Hz | | 221G1530 | - | | 221G1530-2995-481865C2 | 24V DC | | 221G1530-2995-482725C2 | 24V DC | | 221G1530-495905C2 | 24V DC | | 221G16 | - | | 221G16-2995-4818653D | 220-230V 50Hz | | 221G16-2995-481865A2 | 24V 50Hz | | 221G16-2995-492425C2 | 24V DC | | 221G16-4270-486265C2 | 24V DC | | 221G16-495905F4 | 230V 50Hz | | 221G1603 | - | | 221G1603-2995-4818653D | 220-230V 50Hz | | 221G1603-2995-483510S6 | 220-240V 50Hz - 240V 60Hz | | 221G1603-4270-486265C2 | 24V DC | | 221G1610 | - | | 221G1610-2995-4818653D | 220-230V 50Hz | | 221G1610-2995-481865A2 | 24V 50Hz | | 221G1630 | - | | 221G1630-2995-481865C2 | 24V DC | | 221G1631 | - | | 221G1631-495905C2 | 24V DC | | 221G17 | - | | 221G17-2995-4818653D | 220-230V 50Hz | | 221G17-2995-482635S6 | 220-240V 50Hz - 240V 60Hz | | 221G17-2995-492425C2 | 24V DC | | 221G17-299503-491514P3 | 110V 50Hz - 120V 60Hz | | 221G1703 | - | | 221G1703-2995-4818653D | 220-230V 50Hz | | 221G1710 | - | | 221G1710-2995-4818653D | 220-230V 50Hz | | 221G1730 | - | | 221G1731 | - | | 221G21 | - | | 221G21-2995-4818653D | 220-230V 50Hz | | 221G21-495905F4 | 230V 50Hz | | 221G2103 | - | | 221G2106 | - | | 221G2110 | - | | 221G2130 | - | | 221G2130-2995-481865C2 | 24V DC | | 221G2130-495905C2 | 24V DC | | 221G2131 | - | | 221G2131-2995-481865C2 | 24V DC | | 221G2136 | - | | 221G2136-492070C2 | 24V DC | | 221G2330 | - | | 221G2330-2161-495294C2 | 24V DC | | 221G25 | - | | 221G25-2995-4818653D | 220-230V 50Hz | | 221G25-2995-492425C2 | 24V DC | | 221G25-4270-486265C2 | 24V DC | | 221G2523-852025-483824T1 | 230V 50Hz - 240V 60Hz | | 221G2523-876026-483824T1 | 230V 50Hz - 240V 60Hz | | 221G2530 | - | | 221G2530-2995-481865C2 | 24V DC | | 221G2530-2995-492425C2 | 24V DC | | 221G26 | - | | 221G26-2995-4818653D | 220-230V 50Hz | | 221G26-2995-492425C2 | 24V DC | | 221G2630 | - | | 221G2630-2995-481865C2 | 24V DC | | 221G27 | - | | 221G27-4270-486265C2 | 24V DC | | 221G2704 | - | | 221G2730 | - | | 221GS8052B-2995-496350C2 | 24V DC | | 221GS8052D-2995-483510S5 | 110-115V 50Hz - 120W 60Hz | | 221GS8052Q | - | | 321G3790 | - | | 322G36 | - | | 322G36-2995 | - | | 322G3606 | - | | 322G3610 | - | | 322G37 | - | | 322G3706 | - | | 322G3710 | - | | 322G38 | - | | 322G3810 | - | | 322G39 | - | | 322G3906 | - | | 322G4010 | - | | 322G75 | - | | 322G75-2995-481865A5 | 110V 50Hz | | 322G75-2995-481865C2 | 24V DC | | 322G75-4270-4810000A | 110-115V 50Hz | | 322G75-4270-481000C2 | 24V DC | | 322G7506 | - | | 322G7506-2995-481865C2 | 24V DC | | E121G2601 | - | | E321G36 | - | | E321G36-2995-481865C2 | 24V DC | | E321G3606 | - | | E321G3606-2995-481865C2 | 24V DC | | E321G3610 | - | | E321G3610-2995-481865A5 | 110V 50Hz | | E321G3610-2995-481865C2 | 24V DC | | E321G37 | - | | E321G37-2995-4818653D | 220-230V 50Hz | | E321G37-2995-481865A2 | 24V 50Hz | | E321G37-2995-481865C2 | 24V DC | | E321G3706 | - | | E321G3706-2995-481865C2 | 24V DC | | E321G3710 | - | | E321G3710-2995-4818653D | 220-230V 50Hz | | E321G3710-2995-481865C2 | 24V DC | | E321G3710-2995-483510S6 | 220-240V 50Hz - 240V 60Hz | | E321G38 | - | | E321G3806-2995-481865C2 | 24V DC | | E321G3810 | - | | E321G3810-2995-481865C2 | 24V DC | | E321G3810-4270-4810003D | 220-230V 50Hz | | E321G39 | - | | E321G39-2995-481865A5 | 110V 50Hz | | E321G3906 | - | | E321G3910 | - | | E321G3910-2995-481865C2 | 24V DC | | E321G40 | - | | E321G4006 | - | | E321G4010 | - | | E321G4010-2995-481865C2 | 24V DC | | 221G6106 | - | | 221G6506 | - | | 221G6536 | - | | 221G1330 | - | | 221G15-4270-4810000A | - | | 221G1503-4270-486265A5 | - | | 221G1530-483371C2 | - | | 221G1603-2995-492425C2 | - | | 221G2110-2995-4818653D | - | | 221G23 | - | | 221G25-4270-481044F4 | - | | 221G2523-876025-483824T1 | - | | 221G26-2995-4827253D | - | | 221G26-4270-481044F4 | - | | 221G27-4270-481044F4 | - | | 221G6107 | - | | 221G6136 | - | | 221G6306 | - | | 221G6336 | - | | 221G6507 | - | | 221G6606 | - | | 221G6636 | - | | 221G1610-2995-481865T7 | - | | 221G6306-4538-486265C2 | 14W |
|
|
