类型 6211 - 伺服控制的二位二通隔膜阀 # Bürkert

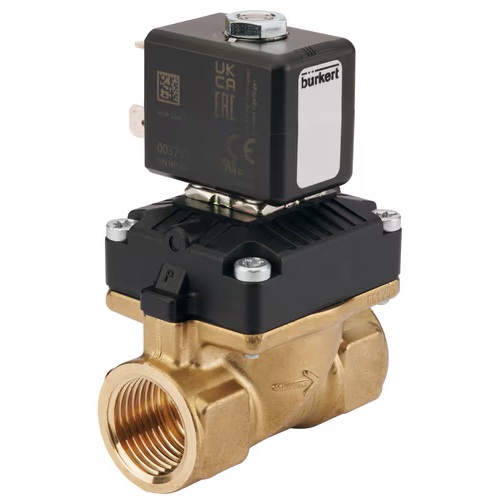

类型 6211 - 伺服控制的二位二通隔膜阀类型描述型号 6211 是一种二位二通的先导式电磁阀，带有伺服隔膜。特别适合中性的液态和气态介质。该种阀门电功率需求小，重量低，采用紧凑型设计。在无流量的状态下，会在弹簧力的作用下关闭。在接通状态下，磁铁会首先打开先导式阀座。在隔膜上方的压力消除之后，通过下部的介质压力将其顶起。阀门打开。阀门内部件的特别构造和几何形状，使得阀门在压力峰值很小时即可发挥平缓的关闭功能。 重叠的线圈系统 AC07 0.5 ...10 bar
| 产品 | | 6211型伺服辅助膜片电磁阀G3/8寸*2/2常闭,DN10,NBR密封,黄铜阀体,24VDC | | 货号 20067544 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,NBR密封,黄铜阀体,24VDC | | 货号 20067546 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/4寸*2/2常闭,DN20,NBR密封,黄铜阀体,24VDC | | 货号 20067549 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/4 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,DN10,NBR密封,黄铜阀体,24VDC | | 货号 20069269 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/4寸*2/2常闭,DN13,NBR密封,黄铜阀体,24VDC | | 货号 20069311 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,DN13,EPDM密封,黄铜阀体,24VDC | | 货号 20069316 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1寸*2/2常闭,DN20,NBR密封,黄铜阀体,24VDC | | 货号 20069323 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/4 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/4寸*2/2常闭,FKM密封,黄铜阀体,24VDC | | 货号 20069329 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/4 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,DN10,NBR密封,黄铜阀体,24VDC | | 货号 20069335 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/8寸*2/2常闭,NBR密封,黄铜阀体,24VDC,耐高温线圈 | | 货号 20069336 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/8寸*2/2常闭,DN10,FKM密封,黄铜阀体,24VDC | | 货号 20069342 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,NBR密封,黄铜阀体,24VDC | | 货号 20069348 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,DN13,NBR密封,黄铜阀体,24V/50-60Hz. | | 货号 20069349 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G1/2寸*2/2常闭,DN13,EPDM密封,黄铜阀体,24V/50-60Hz | | 货号 20069354 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/4寸*2/2常闭,DN20,NBR密封,黄铜阀体,24VDC | | 货号 20069358 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/4 inch) | 0,50 bar - 10,00 bar (10,00 bar) | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 70,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀G3/4寸*2/2常闭,EPDM密封,聚酰胺阀体,230VAC | | 货号 20069399 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,50 bar - 10,00 bar (10,00 bar) | PA (Polyamide) | External thread - G3/4 | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 6211型伺服辅助膜片电磁阀1寸*2/2常闭,DN13,EPDM密封,PA阀体,24VDC | | 货号 20069416 | | 类型 6211 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (1/2 inch) | 0,50 bar - 10,00 bar (10,00 bar) | PA (Polyamide) | External thread - G1 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
|
|
|
