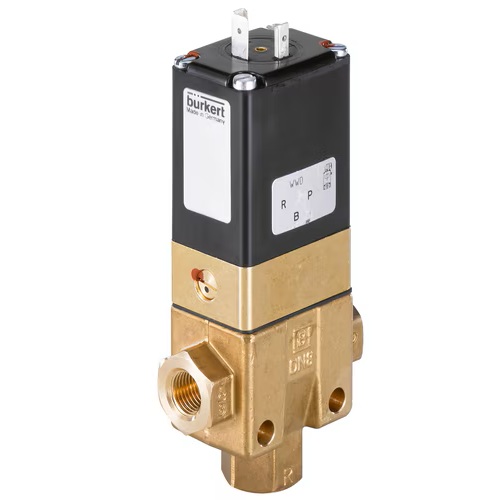

类型 6430 - 伺服控制式 2 位 3 通活塞阀 # Bürkert
类型 6430 - 伺服控制式 2 位 3 通活塞阀类型描述6430 型阀门是一款伺服控制式 2 位 3 通活塞阀。如果没有为阀门供应辅助先导空气，则该功能需要最小压差。版本：- 可提供 NC 和 NO 功能，适用于压力范围为 1-16 巴的中性液体和气体。 - 可提供 NC 和 NO 功能，适用于高达 3 巴的真空条件。 - 可提供 NC 和 NO 功能，在辅助先导空气下适用于高达 8 巴的真空条件。所有版本均有脉冲版本，用于在电源中断时确保相应的开关状态。6430 为调试或手动操作配备了一个手动操作组件（例外：脉冲版本）。为了降低运行期间的电力消耗，可购买采用双线圈技术的带集成 "Kick and Drop" (KD) 电子元件的线圈。先导阀是一款免维护、介质隔离式的 0331 型 2 位 3 通枢轴电枢阀。与符合 DIN EN 175301-803 A 型的插头结合使用时，阀门可达 IP65 的防护等级。 伺服控制式活塞阀，DN8 至 DN40 通过枢轴电枢技术提高了操作可靠性 手动操作组件使用方便 节能“Kick and Drop”或脉冲线圈 可应要求提供防爆版本
| 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,DN12,NBR密封,黄铜阀体,110V/60Hz | | 货号 20006529 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G1/2 | 115,00 V - 115,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常闭,NBR密封,黄铜阀体,24VDC | | 货号 351164 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm (5/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常闭,NBR密封,黄铜阀体,24VDC,真空版本 | | 货号 351169 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm (5/16 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,PUR+NBR密封,黄铜阀体,24VDC | | 货号 351175 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,DN12,NBR密封,黄铜阀体,24VDC | | 货号 351179 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常闭,NBR密封,黄铜阀体,24VDC | | 货号 351235 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 20,00 mm (3/4 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常闭,DN20,NBR密封,黄铜阀体,24VDC | | 货号 351237 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 20,00 mm (3/4 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1寸*3/2常闭,DN25,NBR密封,黄铜阀体,24VDC | | 货号 351241 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 25,00 mm (1 inch) | 1,00 bar - 10,00 bar | Gunmetal | Internal thread - G1 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1寸*3/2常闭,DN12,FKM密封,黄铜阀体,230VAC | | 货号 351243 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 25,00 mm (1 inch) | -1,00 bar - 3,00 bar | Gunmetal | Internal thread - G1 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常闭,NBR密封,黄铜阀体,230VAC | | 货号 357604 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm (5/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常开,NBR密封,黄铜阀体,230VAC | | 货号 357605 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm (5/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,DN12,PUR+NBR密封,黄铜阀体,24VDC | | 货号 357608 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,PUR+NBR密封,黄铜阀体,230VAC | | 货号 357611 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,PUR+NBR密封,黄铜阀体,230VAC | | 货号 357612 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常开,NBR密封,黄铜阀体,24VDC | | 货号 357614 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 20,00 mm (3/4 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常闭,NBR密封,黄铜阀体,230VAC | | 货号 357617 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 20,00 mm (3/4 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G3/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常开,NBR密封,黄铜阀体,24VDC,真空版本 | | 货号 357627 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm (5/16 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,NBR密封,黄铜阀体,24VDC,真空版本 | | 货号 357630 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 12,00 mm (7/16 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀 G3/4寸*3/2常开,DN20,NBR密封,黄铜阀体,24VDC | | 货号 357633 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 20,00 mm (3/4 inch) | -1,00 bar - 3,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1寸*3/2常开,NBR密封,炮铜阀体,24VDC,真空版本 | | 货号 357636 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 25,00 mm (1 inch) | -1,00 bar - 3,00 bar | Gunmetal | Internal thread - G1 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/4寸*3/2常开,PUR+NBR密封,黄铜阀体,24VDC | | 货号 357644 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm (5/16 inch) | -1,00 bar - 8,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,PUR+NBR密封,黄铜阀体,24VDC | | 货号 357645 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 12,00 mm (7/16 inch) | -1,00 bar - 8,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常开,NBR密封,黄铜阀体,24VDC | | 货号 357646 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 20,00 mm (3/4 inch) | -1,00 bar - 8,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,PUR+NBR密封,黄铜阀体,220VDC | | 货号 361870 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/2 | 220,00 V - 220,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,DN12,FKM密封,黄铜阀体,230VAC | | 货号 361882 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 12,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常闭,FKM密封,黄铜阀体,24VDC | | 货号 361883 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 12,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常闭,DN20,NBR密封,黄铜阀体,24V/UC,浇封防爆 | | 货号 361885 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 20,00 mm (3/4 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G11/2寸*3/2常闭,NBR密封,炮铜阀体,24VDC,真空版本 | | 货号 361895 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 40,00 mm (1 1/2 inch) | -1,00 bar - 3,00 bar | Gunmetal | Internal thread - G1 1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1寸*3/2常闭,NBR密封,炮铜阀体,24VDC,真空版本 | | 货号 361896 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 25,00 mm (1 inch) | -1,00 bar - 3,00 bar | Gunmetal | Internal thread - G1 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀NP1/2寸*3/2常闭,DN12,PUR+NBR密封,黄铜阀体,24VDC | | 货号 362735 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 12,00 mm (7/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - NPT1/2 | 24,00 V - 24,00 V | PUR (Polyurethane) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,DN12,FKM密封,黄铜阀体,230V/50-60Hz | | 货号 369190 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 12,00 mm (7/16 inch) | 1,00 bar - 12,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G3/4寸*3/2常闭,NBR密封,黄铜阀体,24VAC | | 货号 374171 | | 类型 6430 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 20,00 mm (3/4 inch) | -1,00 bar - 8,00 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 6430型伺服辅助三通电磁阀G1/2寸*3/2常开,DN8,NBR密封,黄铜阀体,230VAC | | 货号 377393 | | 类型 6430 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm (5/16 inch) | 1,00 bar - 16,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | 0,00 °C - 80,00 °C | Valve complete |
|
|
|
