类型 0355 - 直动式二位三通升降式衔铁阀 # Bürkert

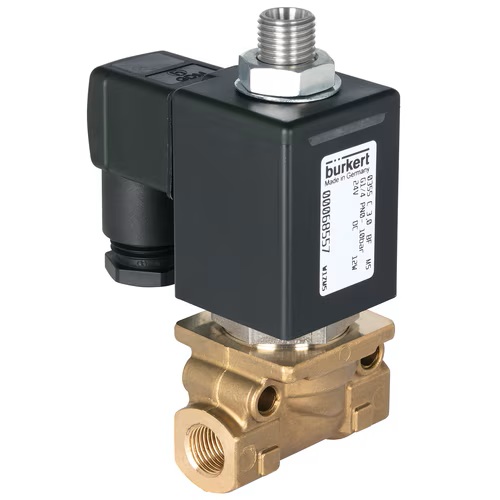

类型 0355 - 直动式二位三通升降式衔铁阀类型描述0355 型直动式升降式衔铁电磁阀适于控制高温介质，比如蒸汽、油和水 直动式二位三通座阀 重叠的线圈系统 介质温度最大 +180 °C 用于液体和气体介质
| 产品 | | 0355型直动式电磁阀G1/4寸*3/2混合,DN3mm,PTFE+FKM密封,不锈钢阀体,24VDC,1m飞线 | | 货号 123776 | | 类型 0355 | | 3/2 - E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P 2/NO) connected with outlet port 2 (A/OUT) | 3,00 mm (1/8 inch) | 0,00 bar - 4,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常开,DN5mm,FKM密封,黄铜阀体,24VUC | | 货号 124252 | | 类型 0355 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 5,00 mm (3/16 inch) | 0,00 bar - 2,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN3mm,FKM密封,黄铜阀体,230VAC | | 货号 126056 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 10,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G3/8寸*3/2常闭,DN1mm,PEEK密封,黄铜阀体,24VDC | | 货号 155049 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 1,00 mm (1/32 inch) | 0,00 bar - 70,00 bar | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | PEEK (Polyetheretherketone) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,NBR+FKM密封,黄铜阀体,24VAC | | 货号 19095 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN1mm,PEEK密封,不锈钢阀体,24VDC | | 货号 20010728 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 1,00 mm (1/32 inch) | 0,00 bar - 70,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PEEK (Polyetheretherketone) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2混合,DN4mm,PTFE+FKM密封,不锈钢阀体,24VDC,0.3m飞线 | | 货号 20838 | | 类型 0355 | | 3/2 - E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P 2/NO) connected with outlet port 2 (A/OUT) | 4,00 mm (5/32 inch) | 0,00 bar - 2,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,FKM密封,不锈钢阀体,24VDC,带支架 | | 货号 20978 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,PTFE+FKM密封,不锈钢阀体,230VAC,带支架 | | 货号 21253 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 5,00 bar | Stainless steel | Internal thread - G1/4 | 230,00 V - 230,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2混合,DN4mm,PTFE+FKM密封,不锈钢阀体,24VDC,1m飞线 | | 货号 219399 | | 类型 0355 | | 3/2 - E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P 2/NO) connected with outlet port 2 (A/OUT) | 4,00 mm (5/32 inch) | 0,00 bar - 2,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN2mm,FKM密封,不锈钢阀体,24VDC,带支架 | | 货号 220335 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 16,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 355型直动式电磁阀G1/4寸*3/2常闭,DN2.0,PTFE密封,不锈钢阀体,230V/50Hz | | 货号 256196 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 14,00 bar | Stainless steel | Internal thread - G1/4 | 230,00 V - 230,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 60,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常开,DN4mm,NBR+FKM密封,黄铜阀体,24VDC | | 货号 26424 | | 类型 0355 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 355型直动式电磁阀G1/4寸*3/2常闭,DN1.5,PTFE+ FKM密封,不锈钢阀体,24VDC | | 货号 371819 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 8,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 355型直动式电磁阀G1/4寸*3/2常闭,DN2.0,PTFE+ FKM密封,不锈钢阀体,230V/UC | | 货号 374631 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 14,00 bar | Stainless steel | Internal thread - G1/4 | 230,00 V - 230,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 60,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀*3/2常闭,DN2,PTFE+FKM密封,不锈钢阀体,G1/4,24VDC | | 货号 48483 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 14,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN2mm,PTFE+FKM密封,黄铜阀体,230VAC | | 货号 49025 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 2,00 mm (5/64 inch) | 0,00 bar - 14,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,PTFE+FKM密封,黄铜阀体,24VDC | | 货号 52078 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 5,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN3mm,PTFE+FKM密封,黄铜阀体,230VAC | | 货号 54885 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 8,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,NBR+FKM密封,黄铜阀体,230VAC | | 货号 61019 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Brass | Internal thread - G1/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,NBR+FKM密封,黄铜阀体,24VDC | | 货号 61104 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN3mm,FKM密封,黄铜阀体,24VDC | | 货号 64392 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 10,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,PTFE+FKM密封,黄铜阀体,24VAC | | 货号 65552 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 5,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN3mm,PTFE+FKM密封,不锈钢阀体,24VDC,带支架 | | 货号 66916 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 8,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN3.0,NBR+FKM密封,黄铜阀体,24VDC | | 货号 68557 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 3,00 mm (1/8 inch) | 0,00 bar - 10,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2常闭,DN4mm,PTFE+FKM密封,不锈钢阀体,24VDC,0.3m飞线 | | 货号 68903 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 4,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀*3/2常闭,DN4,PTFE+FKM密封,黄铜阀体,G1/4,24VDC | | 货号 69637 | | 类型 0355 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 4,00 mm (5/32 inch) | 0,00 bar - 6,00 bar | Brass | Internal thread - G1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0355型直动式电磁阀G1/4寸*3/2混合,DN3mm,PTFE+FKM密封,不锈钢阀体,24VDC,带支架 | | 货号 87989 | | 类型 0355 | | 3/2 - E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P 2/NO) connected with outlet port 2 (A/OUT) | 3,00 mm (1/8 inch) | 0,00 bar - 4,00 bar | Stainless steel | Internal thread - G1/4 | 24,00 V - 24,00 V | PTFE (Polytetrafluorethylene) | -40,00 °C - 180,00 °C | Valve complete |
|
|
|
