类型 0142 - 伺服控制式二位二通隔膜阀 # Bürkert

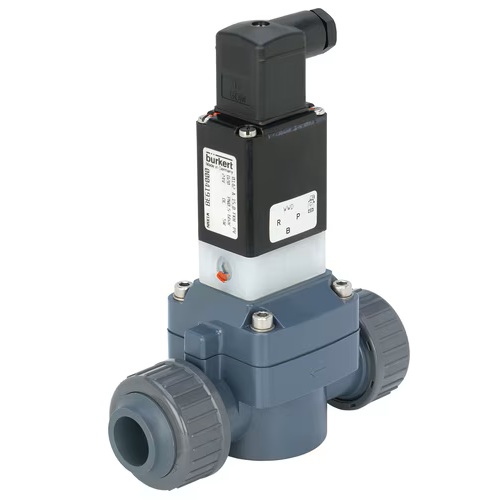

类型 0142 - 伺服控制式二位二通隔膜阀类型描述0142 阀门是一种伺服控制式隔膜阀。 要打开或关闭阀门，需要 0.5 bar 的最小压差。根据应用，提供不同的隔膜材料和作用方式。通过转动主阀座，可以轻松地将二位三通先导控制阀的作用方式从 NC 转换为 NO。先导控制阀的位置反馈可以通过开关或 NAMUR 信号获得。电磁线圈采用高度耐化学腐蚀的环氧树脂压制而成。0142 配备了手动操作组件，可用于调试和检测。 为了减少操作过程中的电力消耗，可以购买采用双线圈技术、集成有“Kick and Drop” (KD) 电子元件的线圈。 伺服控制式隔膜阀公称直径达 DN50 适用于腐蚀性介质和污染介质的塑料阀门 介质分离式，无金属版本 操作方便的手动操作组件 通过位置传感器实现开关安全性（可选用）
| 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁21/2寸*2/2常开,EPDM密封,PVC阀体,230VAC | | 货号 335045 | | 类型 0142 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 50,00 mm (2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 41911 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 41934 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 41938 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 41980 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 41986 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 42005 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 42008 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 42045 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/4寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 42047 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/4寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 42079 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/4寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 42113 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/4寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 42126 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/2寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 42128 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 32,00 mm (1 1/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/2寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 42133 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 32,00 mm (1 1/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/2寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 42169 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 32,00 mm (1 1/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/2寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 42183 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 32,00 mm (1 1/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁2寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 42195 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 40,00 mm (1 1/2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁2寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 42198 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 40,00 mm (1 1/2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁2寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 42245 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 40,00 mm (1 1/2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁21/2寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 42261 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 50,00 mm (2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁21/2寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 42262 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 50,00 mm (2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁21/2寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 42264 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 50,00 mm (2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁21/2寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 42266 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 50,00 mm (2 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀NPT3/4寸*2/2常闭,FKM密封,PVC阀体,120VAC | | 货号 453964 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Internal thread - NPT3/4 | 120,00 V - 120,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀NPT1/2寸*2/2常闭,EPDM密封,PVC阀体,24VDC | | 货号 453994 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Internal thread - NPT1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀NPT1/2寸*2/2常闭,FKM密封,PVC阀体,24VDC | | 货号 454573 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Internal thread - NPT1/2 | 24,00 V - 24,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀无阀体*2/2常闭,EPDM密封,PVC阀体,100VAC | | 货号 500954 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Body without insert and union nut | 100,00 V - 100,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀无阀体*2/2常闭,FKM密封,PVC阀体,100VAC | | 货号 501564 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Body without insert and union nut | 100,00 V - 100,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,EPDM密封,PVC阀体,24VAC | | 货号 50898 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,EPDM密封,PVC阀体,110VAC | | 货号 58422 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,EPDM密封,PVC阀体,110VAC | | 货号 63241 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,110VAC | | 货号 67649 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁1寸*2/2常闭,FKM密封,PVC阀体,110VAC | | 货号 67650 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | FKM (Fluor rubber) | 0,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0142型伺服辅助膜片隔离电磁阀油宁11/4寸*2/2常闭,EPDM密封,PVC阀体,110VAC | | 货号 67651 | | 类型 0142 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 25,00 mm (1 inch) | 0,50 bar - 6,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | EPDM (Ethylene-propylene-diene rubber) | 0,00 °C - 50,00 °C | Valve complete |
|
|
|
