类型 0131 - 直动式二位二通或二位三通肘节阀 # Bürkert

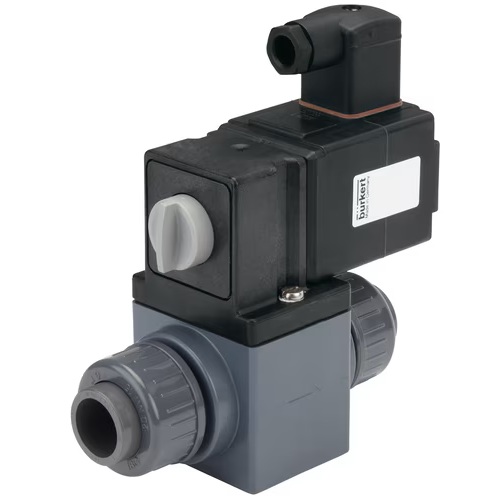

类型 0131 - 直动式二位二通或二位三通肘节阀类型描述0131 阀门是一种直动式肘节阀。根据应用而定，可以提供不同的密封材料组合。由于在执行机构和流体室之间采用了隔离膜片，即便是酸或碱等腐蚀性介质也能得到安全控制。由 PVC 制成的塑料外壳使供应品类臻于完善。线圈采用高度耐化学腐蚀的环氧树脂压制而成。为了减少电力消耗，所有直流版本的线圈中都浇注有“Kick and Drop”电子元件。可选的电气位置传感器可靠地检测开关位置。根据 KTW 和 W270 的符合性认证可用于饮用水领域的应用。此外，还提供符合 DIN EN 45545:2016（标准部分 2 和 5）轨道车辆防火的 0131 型版本。 直动式介质分离阀门公称直径达 DN 20 防振、模块化连接线圈系统 所有直流版本都具有节能、降耗的特点 通过电气位置反馈（可选）提高安全性 手动操作组件坚固耐用、操作方便
| 产品 | | 0131型直动式介质隔离电磁阀油宁连接*3/2分配功能,DN10,FKM密封,PVC阀体,230V/UC | | 货号 122060 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀*3/2分配功能,DN10,FKM密封,PVC阀体,油宁连接,24VDC | | 货号 147255 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀油宁连接*2/2常闭,DN10,EPDM密封,PVC阀体,24V/UC | | 货号 20008295 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/4寸*2/2常闭,EPDM密封,黄铜阀体,24VUC | | 货号 20040120 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -30,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G3/4寸*2/2常开,DN20,NBR密封,黄铜阀体,230V/UC | | 货号 219854 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G3/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G3/4寸*2/2常闭,DN20,NBR密封,黄铜阀体,230V/50Hz | | 货号 219855 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G3/4 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,EPDM密封,PVC阀体,24VUC | | 货号 23759 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Internal thread - G1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,EPDM密封,黄铜阀体,24VUC,符合UBA饮用水标准 | | 货号 246789 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -30,00 °C - 80,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁1/2寸*2/2常闭,EPDM密封,PVC阀体,230VAC | | 货号 253777 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,FKM密封,黄铜阀体,24VUC | | 货号 25537 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G1/2寸*2/2常开,DN10,FKM密封,PVC阀体,24V/UC | | 货号 310598 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 10,00 mm (3/8 inch) | 0,00 bar - 2,00 bar | PVC (Polyvinyl chloride) | Internal thread - G1/2 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G3/4寸*3/2分配功能,DN20,EPDM密封,PVC阀体,230V/AC | | 货号 324729 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 20,00 mm (3/4 inch) | 0,00 bar - 0,25 bar | PVC (Polyvinyl chloride) | Internal thread - G3/4 | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*3/2分配,EPDM密封,PVC阀体,24VUC | | 货号 379135 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Internal thread - G3/8 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,FKM密封,黄铜阀体,230VAC | | 货号 40549 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 130,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀油宁Ø 25*3/2分配功能,DN15,FKM密封,PVC阀体,230V/AC | | 货号 42470 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀NPT1/2寸*3/2分配,EPDM密封,PVC阀体,24VUC | | 货号 452757 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Internal thread - NPT1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常开,NBR密封,黄铜阀体,230VUC | | 货号 46466 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀*2/2常开,DN15,FKM密封,黄铜阀体,G1/2连接,230V/UC | | 货号 46643 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*3/2常闭,EPDM密封,黄铜阀体,24VUC | | 货号 46648 | | 类型 0131 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -30,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*3/2常闭,NBR密封,黄铜阀体,24VUC | | 货号 48997 | | 类型 0131 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/4寸*2/2常闭,NBR密封,黄铜阀体,24VUC | | 货号 49751 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*3/2分配,EPDM密封,PVC阀体,24VUC | | 货号 49883 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀无阀体*2/2常闭,EPDM密封,PVC阀体,100VAC | | 货号 500956 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | 100,00 V - 100,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve partially mounted |
| | 产品 | | 0131型介质隔离电磁阀无阀体*2/2常闭,FKM密封,PVC阀体,100VAC | | 货号 501514 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Body without insert and union nut | 100,00 V - 100,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve partially mounted |
| | 产品 | | 0131型直动式介质隔离电磁阀*2/2常闭,DN15,FKM密封,PVC阀体,200V/50-60HZ | | 货号 501516 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | 200,00 V - 200,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve partially mounted |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 50787 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*2/2常闭,EPDM密封,PVC阀体,24VUC | | 货号 50809 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀油宁连接*2/2常闭,DN20,FKM密封,PVC阀体,230V/50Hz | | 货号 51351 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀*2/2常闭,FKM密封,PVC阀体,110VAC | | 货号 52036 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,NBR密封,黄铜阀体,230VAC | | 货号 52221 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离油宁连接*2/2常闭,DN10,FKM密封,PVC阀体,24V/50Hz | | 货号 52953 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*3/2分配,FKM密封,黄铜阀体,24VUC | | 货号 53050 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,24VUC | | 货号 53882 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve1 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常闭,NBR密封,黄铜阀体,24VUC | | 货号 54102 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀*2/2常闭,DN10,FKM密封,PVC阀体,油宁连接,24V/50Hz | | 货号 55817 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,110VAC | | 货号 55820 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 110,00 V - 110,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁1寸*2/2常闭,FKM密封,PVC阀体,24VUC | | 货号 56495 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 20,00 mm (3/4 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*2/2常闭,FKM密封,PVC阀体,230VAC | | 货号 56789 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀油宁连接*2/2常闭,DN10,EPDM密封,PVC阀体,230V/50Hz | | 货号 56791 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 230,00 V - 230,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁1/2寸*3/2分配,FKM密封,PVC阀体,24VUC | | 货号 58362 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*2/2常开,NBR密封,黄铜阀体,24VUC | | 货号 58371 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀油宁3/4寸*3/2分配,FKM密封,PVC阀体,24VUC | | 货号 58710 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | PVC (Polyvinyl chloride) | Gluing sleeve | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*3/2分配,NBR密封,黄铜阀体,24VUC | | 货号 58843 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G1/2 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*2/2常闭,EPDM密封,PVC阀体,24VUC | | 货号 58900 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 10,00 mm (3/8 inch) | 0,00 bar - 3,00 bar | PVC (Polyvinyl chloride) | Internal thread - G3/8 | 24,00 V - 24,00 V | EPDM (Ethylene-propylene-diene rubber) | -10,00 °C - 50,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*2/2常开,NBR密封,黄铜阀体,24VUC | | 货号 59208 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 10,00 mm (3/8 inch) | 0,00 bar - 2,00 bar | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*3/2常闭,NBR密封,黄铜阀体,230VUC | | 货号 59302 | | 类型 0131 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 10,00 mm (3/8 inch) | 0,00 bar - 1,00 bar | Brass | Internal thread - G3/8 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G3/4寸*3/2分配功能,DN20,NBR密封,黄铜阀体,24V/50Hz | | 货号 62119 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 20,00 mm (3/4 inch) | 0,00 bar - 0,25 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G1/2寸*3/2常闭,NBR密封,黄铜阀体,230VUC | | 货号 62481 | | 类型 0131 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离G3/4螺纹连接*3/2混合功能,DN20,FKM密封,黄铜阀体,24V/UC | | 货号 63033 | | 类型 0131 | | 3/2 - E - mixing valve - normally inlet port 1 (P1/NC) closed, inlet port 3 (P 2/NO) connected with outlet port 2 (A/OUT) | 20,00 mm (3/4 inch) | 0,00 bar - 0,15 bar | Brass | Internal thread - G3/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀G3/8寸*2/2常开,NBR密封,黄铜阀体,24VUC | | 货号 64258 | | 类型 0131 | | 2/2 - B - normally open - inlet port 1 (P/NO) | 10,00 mm (3/8 inch) | 0,00 bar - 2,00 bar | Brass | Internal thread - G3/8 | 24,00 V - 24,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型直动式介质隔离电磁阀G1/2寸*3/2分配功能,DN15,FKM密封,黄铜阀体,230V/UC | | 货号 69814 | | 类型 0131 | | 3/2 - F - distributing valve - normally inlet port 1 (P/IN) connected with out let port 2 (B/NO), outlet port 4 (A/NC) closed | 15,00 mm (9/16 inch) | 0,00 bar - 0,50 bar | Brass | Internal thread - G1/2 | 230,00 V - 230,00 V | FKM (Fluor rubber) | -10,00 °C - 90,00 °C | Valve complete |
| | 产品 | | 0131型介质隔离电磁阀无阀体*2/2常闭,NBR密封,黄铜阀体,230VUC | | 货号 77168 | | 类型 0131 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | 15,00 mm (9/16 inch) | 0,00 bar - 1,00 bar | Brass | 230,00 V - 230,00 V | NBR (Nitrile rubber) | -10,00 °C - 90,00 °C | Valve partially mounted |
|
|
|
