类型 2933 - 带手动执行机构的两位两通隔膜阀 # Bürkert

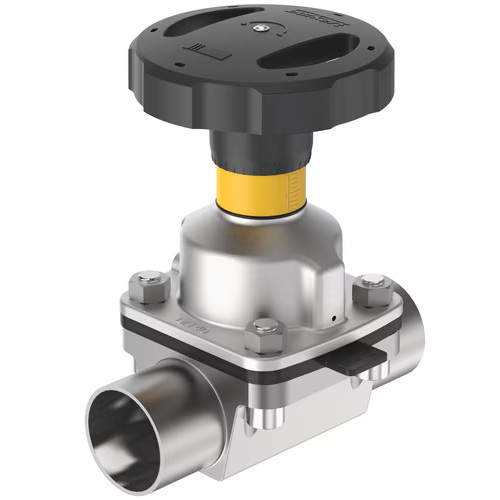

类型 2933 - 带手动执行机构的两位两通隔膜阀类型描述2933 型手动隔膜阀由一个手动执行机构、一个膜片和一个两通阀体组成。带塑料手轮的手动执行机构允许在卫生或腐蚀性环境中使用。利于流动的无死区阀体能够实现高流量值，用途广泛。阀体和隔膜有各种常见的材料和规格可供选择。执行机构具有紧凑的可高压灭菌设计，与所有其他 Bürkert 隔膜阀兼容。我们还推出了防爆的 ATEX/IECEx 设备型号。手动执行机构配备了一个直观的集成式位置指示器、一个可重复的行程指示器和一个可调节的关闭限位装置。可选地，手动执行机构可以配备用于位置反馈的传感器。 | 产品 | | 2933型手动隔膜阀执行机构*手动,DN8mm,无膜片,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050331 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*DN15mm,无密封,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050332 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*DN20mm,无密封,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050333 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*手动,DN25mm,无膜片,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050334 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*手动,DN40mm,无膜片,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050337 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*手动,DN50mm,无膜片,无阀体,不锈钢阀盖+PPS手轮 | | 货号 20050338 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*3.1certificate*DN15mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸3/4寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050345 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*3.1certificate*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050346 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*3.1certificate*DN25mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050347 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*3.1certificate*DN40mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸11/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050348 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*3.1certificate*DN15mm,EPDM膜片,铸316L阀体,ASME焊接寸3/4寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050349 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*3.1certificate*DN08mm,EPDM膜片,铸316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050350 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2寸*3.1certificate*DN50mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050352 | | 类型 2933 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*3.1certificate*DN25mm,EPDM膜片,铸316L阀体,ASME焊接寸1寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050357 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*DN8mm,高温PTFE膜片,管压式阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20050358 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | Advanced PTFE with EPDM backing membrane | -5,00 °C - 143,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*DN8mm,PTFE膜片,锻316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20050359 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*3.1certificate*DN40mm,EPDM膜片,铸316L阀体,ASME焊接寸11/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050360 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接25.0X1.2*DN25mm,PTFE+EPDM膜片,铸316L阀体,2037焊接寸1寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050366 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,0x1,2 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接21/2寸*3.1certificate*DN50mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸21/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050368 | | 类型 2933 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*DN20mm,PTFE+EPDM膜片,管压式316L阀体,ASME焊接寸1寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38，带3.1证书 | | 货号 20050372 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接38.0X1.2*DN40mm,PTFE+EPDM膜片,铸316L阀体,2037焊接寸11/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050376 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,0x1,2 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接1寸*DN25mm,PTFE膜片,铸316L阀体,ASME卡接1寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050385 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 Cl: 50,5 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接1寸*DN25mm,EPDM膜片,铸316L阀体,ASME卡接寸1寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050390 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 Cl: 50,5 | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*DN15mm,PTFE膜片,管压式阀体,ASME焊接3/4寸,PPS阀盖及不锈钢手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20050391 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/8寸*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸3/8,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050395 | | 类型 2933 | | On/off valve | DN 10 (NPS 3/8) - 9,53x0,89 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2寸*3.1certificate*DN50mm,EPDM膜片,铸316L阀体,ASME焊接寸2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050398 | | 类型 2933 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接19.0x1.5*DN15mm,PTFE+EPDM膜片,铸316L阀体,焊接19.0x1.5不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 20050419 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 19,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀DIN焊接3/8寸*DN8mm,PTFE膜片,铸316L阀体,DIN焊接3/8寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.6 | | 货号 20051238 | | 类型 2933 | | On/off valve | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接1/2寸*DN8mm,PTFE膜片,锻316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20072065 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀执行机构*DN15mm,无密封,无阀体,PPS阀盖及手轮 | | 货号 20075535 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*DN25mm,无密封,无阀体,PPS阀盖及手轮 | | 货号 20075537 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀执行机构*手动,DN40mm,无膜片,无阀体,PPS阀盖及手轮 | | 货号 20075539 | | 类型 2933 | | On/off valve | without | without seal or no explanation | without body or no explanation |
| | 产品 | | 2933型手动隔膜阀4200卡接1寸*DN25mm,EPDM膜片,锻316L阀体,4200卡接1寸,PPS阀盖及手轮，机抛Ra≤0.5，带3.1证书 | | 货号 20077735 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 Cl: 50,5 | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接33.7x2.0*DN25mm,EPDM膜片,锻316L阀体,4200焊接1寸焊接不锈钢阀盖+PPS手轮,机抛Ra≤0.5/0.76,带3.1证书 | | 货号 20078149 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接33.7x2.0*DN25mm,EPDM膜片,管压式阀体,4200焊接1寸焊接不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20081551 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀4200卡接1寸*DN25mm,EPDM膜片,管压式阀体,4200卡接1寸,PPS阀盖及手轮，电抛Ra≤0.38，带3.1证书 | | 货号 20082566 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 Cl: 50,5 | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接19x1.5*DN15mm,EPDM膜片,管压式阀体,焊接19.0x1.5,PPS阀盖及手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20085150 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 19,0x1,5 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接13.5x1.6*DN08mm,EPDM膜片,铸316L阀体,ISO4200 焊接1/4寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.78 | | 货号 20085503 | | 类型 2933 | | On/off valve | DN 8 (NPS 1/4) - 13,5x1,6 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接33.7x2.0*DN25mm,PTFE膜片,铸316L阀体,焊接1/2寸,PPS阀盖及手轮 | | 货号 20085659 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接35×1.5*DN40mm,PTFE膜片,锻316L阀体,焊接35.0x1.5不锈钢阀盖+PPS手轮,机抛Ra≤0.5,带3.1证书 | | 货号 20088230 | | 类型 2933 | | On/off valve | DN 32 (NPS 1 1/4) - 35,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀4200卡接3/4寸*DN20mm,PTFE膜片,铸316L阀体,4200卡接3/4寸,PPS阀盖及手轮，机抛Ra≤0.76 | | 货号 20091862 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 26,9x1,6 Cl: 50,5 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀4200卡接1/2寸*DN25mm,高温PTFE膜片,管压式阀体,4200卡接1/2寸,PPS阀盖及手轮，电抛Ra≤0.38，带3.1证书 | | 货号 20093553 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 21,3x1,6 Cl: 50,5 | Clamp | Advanced PTFE with EPDM backing membrane | -5,00 °C - 143,00 °C | Stainless Steel Tube 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜焊接13.5.3x1.6*DN8mm,PTFE膜片,铸316L阀体,ISO4200焊接3/8寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.6 | | 货号 20095377 | | 类型 2933 | | On/off valve | DN 8 (NPS 1/4) - 13,5x1,6 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接21.3x1.6*DN15mm,EPDM膜片,铸316L阀体,ISO4200焊接1/2寸,PPS阀盖及手轮,机抛Ra≤0.78 | | 货号 20097337 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 21,3x1,6 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀油宁11/4寸*手动,DN25mm,PTFE膜片,PVC阀体,PPS阀盖及手轮 | | 货号 20098207 | | 类型 2933 | | On/off valve | DN 25 - d32 | Gluing sleeve | PTFE with EPDM backing membrane | 10,00 °C - 60,00 °C | PVC (Polyvinyl chloride) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接1/2寸*DN08mm,EPDM膜片,铸316L阀体,ASME卡接1/2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.78 | | 货号 20100006 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接33.7x2.0*DN25mm,EPDM膜片,铸316L阀体,4200焊接1寸焊接PPS阀盖及手轮，机抛Ra≤0.76 | | 货号 20100758 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 | Welded | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀承插焊接1寸*DN20mm,EPDM膜片,PP阀体 | | 货号 20101373 | | 类型 2933 | | On/off valve | DN 20 - d25 | Welded sleeve | EPDM high-temperature | 10,00 °C - 90,00 °C | PP (Polypropylene) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀DIN卡接1/2寸*DN15mm,PTFE膜片,铸316L阀体,DIN卡接1/2寸,PPS阀盖及手轮 | | 货号 20102186 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 19,0x1,5 Cl: 34,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀4200卡接1寸*DN25mm,EPDM膜片,铸316L阀体,4200卡接1寸,PPS阀盖及手轮，机抛Ra≤0.76 | | 货号 20103282 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 33,7x2,0 Cl: 50,5 | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀油宁1寸*手动,DN20mm,PTFE膜片,PVC阀体,PPS阀盖及手轮 | | 货号 20104943 | | 类型 2933 | | On/off valve | DN 20 - d25 | Gluing sleeve | PTFE with EPDM backing membrane | 10,00 °C - 60,00 °C | PVC (Polyvinyl chloride) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接23.0x1.5*DN20mm,PTFE+EPDM膜片,铸316L阀体,焊接23.0x1.5不锈钢阀盖+PPS手轮 | | 货号 20105351 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 23,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接41X1.5*DN40mm,PTFE膜片,锻316L阀体,焊接寸11/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带最低限位，带3.1证书 | | 货号 20106966 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 41,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀2852卡接1寸*DN25mm,PTFE膜片,铸316L阀体,卡接1寸,PPS阀盖及手轮 | | 货号 20111706 | | 类型 2933 | | On/off valve | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接13.0x1.5*DN08mm,PTFE+EPDM膜片,铸316L阀体,焊接13.0x1.5,不锈钢阀盖+PPS手轮 | | 货号 20113044 | | 类型 2933 | | On/off valve | DN 10 (NPS 3/8) - 13,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接11/4寸*DN25mm,PTFE膜片,PVDF阀体 | | 货号 20118363 | | 类型 2933 | | On/off valve | DN 25 - d32 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 120,00 °C | PVDF (Polyvinylidene fluoride) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀焊接63.5x1.6*DN50mm,PTFE+EPDM膜片,锻316L阀体,焊接63.5x1.6不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20129179 | | 类型 2933 | | On/off valve | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged stainless steel 316L/1.4435 BN2 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀承插焊接3/4寸*DN15mm,PTFE膜片,PVDF阀体 | | 货号 20143363 | | 类型 2933 | | On/off valve | DN 15 - d20 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 120,00 °C | PVDF (Polyvinylidene fluoride) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动塑料隔膜阀承插焊接1寸*手动,DN20mm,PTFE膜片,PP阀体,PPS阀盖及手轮 | | 货号 20143995 | | 类型 2933 | | On/off valve | DN 20 - d25 | Welded sleeve | PTFE with EPDM backing membrane | 10,00 °C - 90,00 °C | PP (Polypropylene) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀油宁11/2寸*手动,DN32mm,PTFE膜片,PVC阀体,PPS阀盖及手轮 | | 货号 20144673 | | 类型 2933 | | On/off valve | DN 32 - d40 | Gluing sleeve | PTFE with EPDM backing membrane | 10,00 °C - 60,00 °C | PVC (Polyvinyl chloride) | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*3.1certificate*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209385 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*3.1certificate*DN15mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸3/4寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209386 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*3.1certificate*DN25mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209387 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*3.1certificate*DN40mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸11/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209388 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2寸*3.1certificate*DN50mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209389 | | 类型 2933 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接21/2寸*3.1certificate*DN50mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸21/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93209390 | | 类型 2933 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*3.1certificate*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,双边切短 | | 货号 93209391 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*3.1certificate*DN15mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸3/4寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,双边切短 | | 货号 93209392 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*3.1certificate*DN25mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,双边切短 | | 货号 93209393 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*3.1certificate*DN40mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸11/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,双边切短 | | 货号 93209394 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2寸*3.1certificate*DN50mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,双边切短 | | 货号 93209395 | | 类型 2933 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2寸*DN50mm,PTFE膜片,锻316L阀体,ASME焊接2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93209417 | | 类型 2933 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接2-1/2寸*DN50mm,PTFE膜片,锻316L阀体,ASME焊接21/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93209418 | | 类型 2933 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*DN25mm,PTFE膜片,锻316L阀体,ASME焊接1寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93209430 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*DN15mm,PTFE膜片,锻316L阀体,ASME焊接3/4寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93209477 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*DN40mm,PTFE膜片,锻316L阀体,ASME焊接11/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93209478 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/4寸*DN15mm,PTFE膜片,锻316L阀体,ASME焊接3/4寸,不锈钢阀盖+PPS手轮,双边切短,电抛Ra≤0.38,带3.1证书 | | 货号 93209480 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1寸*DN25mm,PTFE膜片,锻316L阀体,ASME焊接1寸,PPS阀盖及手轮,双边切短,电抛Ra≤0.38,带3.1证书 | | 货号 93209481 | | 类型 2933 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接11/2寸*DN40mm,PTFE膜片,锻316L阀体,ASME焊接11/2寸,PPS阀盖及手轮,双边切短,电抛Ra≤0.38,带3.1证书 | | 货号 93209482 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接3/4寸*DN15mm,PTFE膜片,铸316L阀体,ASME焊接3/4寸,PPS阀盖及不锈钢手轮,电抛Ra≤0.38, | | 货号 93218207 | | 类型 2933 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 Cl: 25,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接11/2寸*DN40mm,PTFE+EPDM膜片,铸316L阀体,ASME卡接寸11/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93218373 | | 类型 2933 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 Cl: 50,5 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/4寸*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸1/4寸,锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93218521 | | 类型 2933 | | On/off valve | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/2寸*DN08mm,Gylon-EPDM膜片,铸316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93219262 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | GYLON® laminated with EPDM support membrane | -5,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接1/2寸*DN8mm,PTFE膜片,锻316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93219711 | | 类型 2933 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME卡接2寸*DN50mm,EPDM膜片,铸316L阀体,ASME卡接寸2寸,不锈钢阀盖+PPS手轮,机抛Ra≤0.38 | | 货号 93219715 | | 类型 2933 | | On/off valve | Clamp | EPDM high-temperature | -10,00 °C - 143,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接3/8寸*3.1certificate*DN08mm,PTFE+EPDM膜片,铸316L阀体,ASME焊接寸3/8寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38 | | 货号 93219728 | | 类型 2933 | | On/off valve | DN 10 (NPS 3/8) - 9,53x0,89 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Investment cast material 316L/1.4435 | 0,00 bar - 10,00 bar |
| | 产品 | | 2933型手动隔膜阀ASME焊接1/4寸*DN8mm,PTFE膜片,锻316L阀体,ASME焊接寸1/2寸,不锈钢阀盖+PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 93219894 | | 类型 2933 | | On/off valve | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Forged material 316L according ASTM A182/ A182M | 0,00 bar - 10,00 bar |
|
|
