类型 2934 - 带手动执行机构的 T 型隔膜阀 # Bürkert

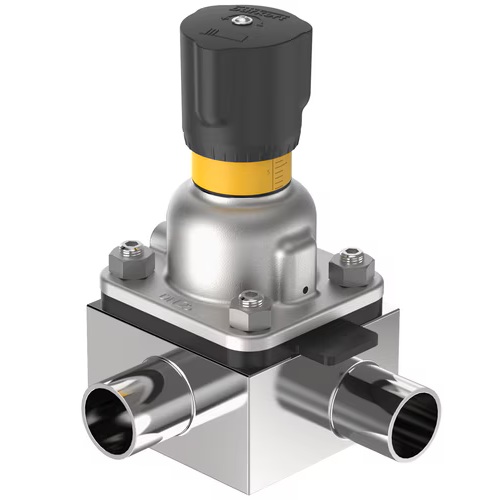

类型 2934 - 带手动执行机构的 T 型隔膜阀类型描述2934 型手动隔膜阀由一个手动执行机构、一个隔膜和一个 T 型阀体组成。带塑料手轮的手动执行机构允许在卫生或腐蚀性环境中使用。利于流动的无死区阀体能够实现高流量值，用途广泛。阀体和隔膜有各种常见的材料和规格可供选择。执行机构具有紧凑的可高压灭菌设计，与所有其他 Bürkert 隔膜阀兼容。我们还推出了防爆的 ATEX/IECEx 设备型号。手动执行机构配备了一个直观的集成式位置指示器、一个可重复的行程指示器和一个可调节的关闭限位装置。可选地，手动执行机构可以配备用于位置反馈的传感器。 | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接0.5寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084929 | | 类型 2934 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接0.75寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084930 | | 类型 2934 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接1寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084931 | | 类型 2934 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接1.5寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084932 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084933 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接2.5寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084934 | | 类型 2934 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接3寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084935 | | 类型 2934 | | On/off valve | DN 80 (NPS 3) - 76,2x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME焊接4寸-ASME焊接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084936 | | 类型 2934 | | On/off valve | DN 100 (NPS 4) - 101,6x2,11 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接0.75寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084937 | | 类型 2934 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接1寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084938 | | 类型 2934 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接1.5寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084939 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084940 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接2.5寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084941 | | 类型 2934 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接3寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084942 | | 类型 2934 | | On/off valve | DN 80 (NPS 3) - 76,2x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN15mm,PTFE膜片,316L-Block阀体,ASME焊接4寸-ASME焊接0.75寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084943 | | 类型 2934 | | On/off valve | DN 100 (NPS 4) - 101,6x2,11 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接1寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084944 | | 类型 2934 | | On/off valve | DN 25 (NPS 1) - 25,4x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接1.5寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084945 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084946 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接2.5寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084947 | | 类型 2934 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接3寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084949 | | 类型 2934 | | On/off valve | DN 80 (NPS 3) - 76,2x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN25mm,PTFE膜片,316L-Block阀体,ASME焊接4寸-ASME焊接1寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084950 | | 类型 2934 | | On/off valve | DN 100 (NPS 4) - 101,6x2,11 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,ASME焊接1.5寸-ASME焊接1.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084951 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 38,1x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME焊接1.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084952 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,ASME焊接2.5寸-ASME焊接1.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084953 | | 类型 2934 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,ASME焊接3寸-ASME焊接1.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084954 | | 类型 2934 | | On/off valve | DN 80 (NPS 3) - 76,2x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,ASME焊接4寸-ASME焊接1.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084955 | | 类型 2934 | | On/off valve | DN 100 (NPS 4) - 101,6x2,11 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN50mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME焊接2寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084956 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN50mm,PTFE膜片,316L-Block阀体,ASME焊接3寸-ASME焊接2寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084957 | | 类型 2934 | | On/off valve | DN 80 (NPS 3) - 76,2x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN50mm,PTFE膜片,316L-Block阀体,ASME焊接21/2寸-ASME焊接2寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20101474 | | 类型 2934 | | On/off valve | DN 65 (NPS 2 1/2) - 63,5x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN20mm,PTFE膜片,316L-Block阀体,ASME焊接2寸-ASME卡接3/4寸,SS阀盖及PPS手轮,电抛Ra≤0.38,带3.1证书 | | 货号 20143028 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 50,8x1,65 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME卡接0.75寸-ASME卡接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20143166 | | 类型 2934 | | On/off valve | DN 20 (NPS 3/4) - 19,05x1,65 Cl: 25,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN8mm,PTFE膜片,316L-Block阀体,ASME卡接0.5寸-ASME卡接0.5寸,SS阀盖及PPS手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20143168 | | 类型 2934 | | On/off valve | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | Clamp | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN20mm,PTFE膜片,316L-Block阀体,焊接23.0x1.5-焊接23.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153065 | | 类型 2934 | | On/off valve | DN 20 (NPS 3/4) - 23,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASME BPE (Table MM-2.1.1, Ed. 2024) | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,焊接41.0x1.5-焊接41.0x1.5,PSS阀盖及不锈钢手轮,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20153148 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 41,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASME BPE (Table MM-2.1.1, Ed. 2024) | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN50mm,PTFE膜片,316L-Block阀体,焊接53.0x1.5-焊接53.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153391 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 53,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASME BPE (Table MM-2.1.1, Ed. 2024) | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,焊接41.0x1.5-焊接41.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153394 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 41,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASME BPE (Table MM-2.1.1, Ed. 2024) | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN50mm,PTFE膜片,316L-Block阀体,焊接53.0x1.5-焊接53.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153862 | | 类型 2934 | | On/off valve | DN 50 (NPS 2) - 53,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN40mm,PTFE膜片,316L-Block阀体,焊接41.0x1.5-焊接41.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153863 | | 类型 2934 | | On/off valve | DN 40 (NPS 1 1/2) - 41,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2934型手动T型阀*DN20mm,PTFE膜片,316L-Block阀体,焊接23.0x1.5-焊接23.0x1.5,PSS阀盖及不锈钢手轮,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20153864 | | 类型 2934 | | On/off valve | DN 20 (NPS 3/4) - 23,0x1,5 | Welded | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
|
|
|
