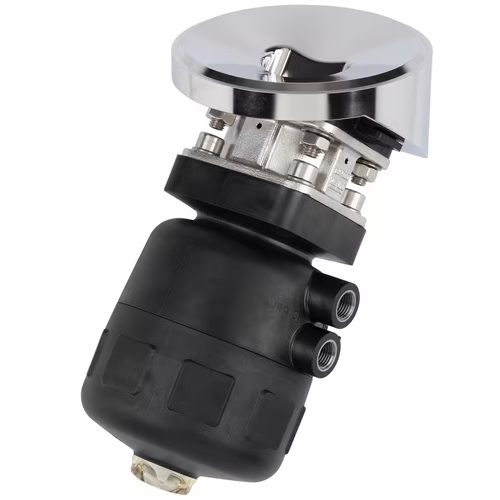

类型 2033 - 带气动塑料驱动器的罐底隔膜阀（CLASSIC 型） # Bürkert
类型 2033 - 带气动塑料驱动器的罐底隔膜阀（CLASSIC 型）类型描述从外部控制的 2033 型隔膜阀由一个气动活塞驱动器、一个隔膜以及一个罐底阀门外壳组成。经验证、坚固耐用的驱动器采用塑料外壳，可在卫生或侵蚀性环境条件下使用。利于流动的无死角阀壳允许较大的流量通过，用途广泛。阀壳和膜片有各种常见的材料和规格可供选择。驱动器采用紧凑的可高压灭菌设计（PPS 规格）。8690/8691/8697 自动化单元的集成可以在所有扩展阶段进行（可加装）。我们还推出了防爆的 ATEX/IECEx 设备型号。插接外壳可选择塑料或不锈钢材质。驱动器标配集成式视觉位置显示器；最小/最大行程限制器可作为选件安装。 | 产品 | | 2033型气动罐底阀2037焊接3寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20013658 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀焊接41.0x1.5*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 20075294 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接21/2寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20147391 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1寸*2/2常闭,DN25mm,PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 219874 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3/4寸*2/2常闭,DN20mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 220973 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1/2寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 220974 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 220975 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 220977 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接寸1/2寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 222618 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3/4寸*2/2常闭,DN20mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 222619 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接1寸*2/2常闭,DN25mm,PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 222620 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 222621 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 222622 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀焊接53.0x1.5*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 231942 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接21/2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 238187 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常闭,DN50mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 251973 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.38/1.6,带3.1证书 | | 货号 252574 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接4寸*2/2常闭,DN100mm,PTFE膜片,316L-Block阀体,顶部焊盘直径300mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 254615 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 7,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3/4寸*2/2常闭,DN20mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 256398 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3/4寸*2/2常闭,DN20mm,EPDM膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 261516 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1寸*2/2常闭,DN25mm,EPDM膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 261519 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3/4寸*2/2常闭,DN20mm,EPDM膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 262161 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 8,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接寸1/2寸*2/2常闭,DN15mm,EPDM膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264337 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3/4寸*2/2常闭,DN20mm,EPDM膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264338 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接1寸*2/2常闭,DN25mm,EPDM膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264339 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264341 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264342 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264344 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN100mm,EPDM膜片,316L-Block阀体,顶部焊盘直径300mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264345 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 8,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1/2寸*2/2常闭,DN15mm,EPDM膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264346 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264347 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264348 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接21/2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264349 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 264350 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265709 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265711 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接1寸*2/2常闭,DN25mm,EPDM膜片,316L-Block阀体,顶部焊盘直径120mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265860 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265861 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接21/2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265862 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265863 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1寸*2/2常闭,DN25mm,EPDM膜片,316L-Block阀体,顶部焊盘直径120mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265866 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 265869 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接1寸*2/2常闭,DN25mm,PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266056 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266057 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接4寸*2/2常闭,DN100mm,EPDM膜片,316L-Block阀体,顶部焊盘直径300mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 266059 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 8,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接寸1/2寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266431 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3/4寸*2/2常闭,DN20mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266432 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接1寸*2/2常闭,DN25mm,PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266433 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266435 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接21/2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266436 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接4寸*2/2常闭,DN100mm,PTFE膜片,316L-Block阀体,顶部焊盘直径300mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266439 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 7,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接寸1/2寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266440 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266443 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 266444 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接2寸*2/2常闭,DN50mm,EPDM膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 266970 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 266971 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接1寸*2/2常闭,DN25mm,EPDM膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 268480 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接1寸*2/2常闭,DN25mm,PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 268978 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 272386 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 283526 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 284376 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接21/2寸*2/2常闭,DN65mm,PTFE膜片,316L-Block阀体,顶部焊盘直径200mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 297925 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀4200卡接1寸*2/2常闭,DN25mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 298693 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3/4寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 312039 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 312654 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 312867 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接21/2寸*2/2常闭,DN65mm,PTFE膜片,316L-Block阀体,顶部焊盘直径200mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 312870 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接4寸*2/2常闭,DN100mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径300mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 315617 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 7,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀4200焊接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 319980 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀焊接114.3x2.3*2/2常闭,DN100mm,EPDM膜片,316L-Block阀体,顶部焊盘直径300mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 319981 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 8,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 322382 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3/4寸*2/2常闭,DN20mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 324568 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接1寸*2/2常闭,DN25mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径120mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 325133 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2-1/2寸 *2/2常闭,DN65mm,PTFE膜片,316L-Block阀体,顶部焊盘直径200mm, 机抛Ra≤0.5/1.6,带3.1证书,详情请参考图纸 | | 货号 329639 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 6,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 337843 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀2037焊接21/2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 346664 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 351000 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接11/2寸*2/2常闭,DN40mm,PTFE膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 351001 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 9,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 360844 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN80mm,EPDM膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 365957 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接3寸*2/2常闭,DN80mm,高温PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 365958 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -5,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 370770 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 370773 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3寸*2/2常闭,DN80mm,PTFE膜片,316L-Block阀体,顶部焊盘直径225mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 370775 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接2寸*2/2常开,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 382273 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - B - normally open (NO) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接寸1/2寸*2/2常闭,DN8mm,PTFE膜片,316L-Block阀体,顶部焊盘直径50mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 388095 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接3/4寸*2/2常闭,DN15mm,PTFE膜片,316L-Block阀体,顶部焊盘直径85mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 388111 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 393787 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接11/2寸*2/2常闭,DN40mm,EPDM膜片,316L-Block阀体,顶部焊盘直径150mm,机抛Ra≤0.5/1.6,带3.1证书 | | 货号 393789 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 143,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME焊接寸1/2寸*2/2常闭,DN8mm,PTFE膜片,316L-Block阀体,顶部焊盘直径50mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 93208962 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
| | 产品 | | 2033型气动罐底阀ASME卡接2寸*2/2常闭,DN50mm,PTFE膜片,316L-Block阀体,顶部焊盘直径180mm,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 93218866 | | 类型 2033 | | On/off valves | Diaphragm valve | 0,00 bar - 10,00 bar | -10,00 °C - 130,00 °C | 2/2 - A - normally closed (NC) | Stainless steel | Flange |
|
|
