类型 2935 - 带手动执行机构的罐底隔膜阀 # Bürkert

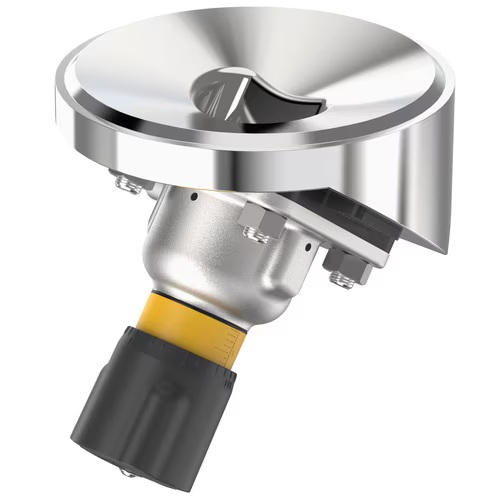

类型 2935 - 带手动执行机构的罐底隔膜阀类型描述2935 型手动隔膜阀由一个手动执行机构、一个隔膜和一个罐底阀体组成。带塑料手轮的手动执行机构允许在卫生或腐蚀性环境中使用。利于流动的无死区阀体能够实现高流量值，用途广泛。阀体和隔膜有各种常见的材料和规格可供选择。执行机构具有紧凑的可高压灭菌设计，与所有其他 Bürkert 隔膜阀兼容。提供防爆 ATEX/IECEx 设备版本。手动执行机构配备了一个直观的集成式位置指示器、一个可重复的行程指示器和一个可调节的关闭限位装置。可选地，手动执行机构可以配备用于位置反馈的传感器。 | 产品 | | 2935型手动罐底阀ASME焊接0.5寸*DN8mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20084988 | | 类型 2935 | | On/off valve | DN 50 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接0.5寸*DN15mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086278 | | 类型 2935 | | On/off valve | DN 85 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接0.75寸*DN15mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086281 | | 类型 2935 | | On/off valve | DN 85 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接1寸*DN25mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086287 | | 类型 2935 | | On/off valve | DN 120 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接11/2寸*DN40mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086288 | | 类型 2935 | | On/off valve | DN 150 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接2寸*DN50mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086289 | | 类型 2935 | | On/off valve | DN 180 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME焊接2.5寸*DN50mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20086290 | | 类型 2935 | | On/off valve | DN 180 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接1/2寸*DN8mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096106 | | 类型 2935 | | On/off valve | DN 50 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接1/2寸*DN15mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096109 | | 类型 2935 | | On/off valve | DN 85 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接3/4寸*DN15mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096110 | | 类型 2935 | | On/off valve | DN 85 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接1寸*DN25mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096129 | | 类型 2935 | | On/off valve | DN 120 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接11/2寸*DN40mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096130 | | 类型 2935 | | On/off valve | DN 150 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接2寸*DN50mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096136 | | 类型 2935 | | On/off valve | DN 180 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
| | 产品 | | 2935型手动罐底阀ASME卡接21/2寸*DN50mm,PTFE膜片,316L-Block阀体,电抛Ra≤0.38/0.76,带3.1证书 | | 货号 20096138 | | 类型 2935 | | On/off valve | DN 180 | Flange | PTFE with EPDM backing membrane | -10,00 °C - 130,00 °C | Stainless steel block material 1.4435 according to DIN EN 10088 and 316L according to ASTM A479/A479M | 0,00 bar - 10,00 bar |
|
|
