类型 0460 - 用于气动系统的两位五通脉冲电磁阀或者三位五通电磁阀 # Bürkert

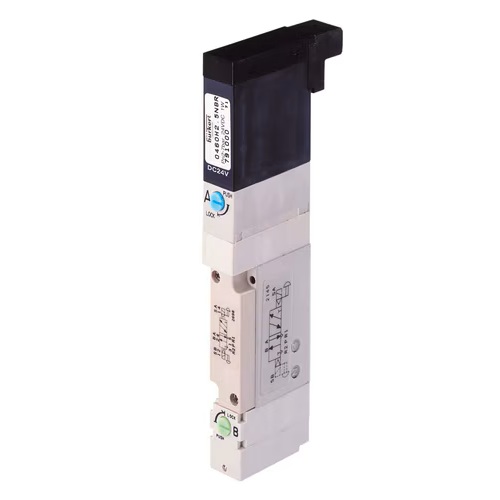

类型 0460 - 用于气动系统的两位五通脉冲电磁阀或者三位五通电磁阀类型描述0460 型先导阀由一个带双线圈的先导电磁阀和一个气动闸阀组成。作用原理支持在能耗低、开关时间短的条件下，实现对高压的开关操作。所有阀门均标配一个手动操作装置。 | 产品 | | 电磁阀 | | 货号 154183 | | 类型 0460 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 2,50 mm | Flange | Aluminium | 24,00 V - 24,00 V | 2,00 bar - 7,00 bar | 5,00 °C - 50,00 °C | 200,00 l/min | Rectangular plug 2,54 mm, 3-pin |
| | 产品 | | 脉冲先导阀 | | 货号 154184 | | 类型 0460 | | 5/3 - L - middle position all port connections closed - inlet port 1, outlet p ort 4 and 2, vent of outlet ports to 5 respectively 3 | 2,50 mm | Flange | Aluminium | 24,00 V - 24,00 V | 2,00 bar - 7,00 bar | 5,00 °C - 50,00 °C | 200,00 l/min | Rectangular plug 2,54 mm, 3-pin |
| | 产品 | | 0460型脉冲式先导阀 | | 货号 154185 | | 类型 0460 | | 5/3 - N - middle postion pressure inlet port 1 closed - outlet ports 2 and 4 c onnected with exhaust ports 3 respectively 5 | 2,50 mm | Flange | Aluminium | 24,00 V - 24,00 V | 2,00 bar - 7,00 bar | 5,00 °C - 50,00 °C | 200,00 l/min | Rectangular plug 2,54 mm, 3-pin |
|
|
