类型 6527 - 用于气动装置的二位五通电磁阀 # Bürkert

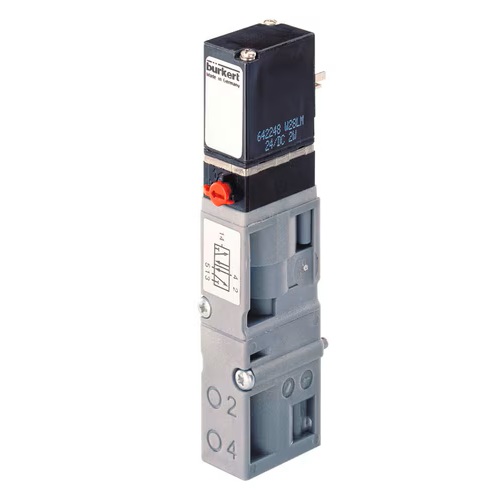

类型 6527 - 用于气动装置的二位五通电磁阀类型描述6527 型阀门由 6106 型先导控制摇臂电磁阀和气动座阀组成。作用原理允许在功率消耗小且切换时间短的情况下切换高压。阀门可排成一排，和后部插头连接一起最好用于阀岛（8640 型和 8644 型），和前部插头连接一起主要用于阀块以控制气动驱动器。先导控制阀成批地装配手动操作组件。 紧凑型阀门 切换时间快 低电气功率消耗 直流电中的摇臂先导控制
| 产品 | | 6527型先导电磁阀 | | 货号 156337 | | 类型 6527 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 6,00 mm | Flange | PA (Polyamide) | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 50,00 °C | 700,00 l/min | Plug pattern form C according to DIN EN 175301-803 |
| | 产品 | | 6527型先导电磁阀 | | 货号 156827 | | 类型 6527 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 6,00 mm | Flange | PA (Polyamide) | 24,00 V - 24,00 V | 2,00 bar - 8,00 bar | -10,00 °C - 50,00 °C | 700,00 l/min | Plug pattern form C according to DIN EN 175301-803 |
| | 产品 | | 6527型先导电磁阀*5/2常闭,DN6,6526/6527法兰口,24VDC | | 货号 156828 | | 类型 6527 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 6,00 mm | Flange | PA (Polyamide) | 24,00 V - 24,00 V | 1,00 bar - 10,00 bar | -10,00 °C - 50,00 °C | 700,00 l/min | Plug pattern form C according to DIN EN 175301-803 |
| | 产品 | | 6527型先导电磁阀 | | 货号 162076 | | 类型 6527 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 6,00 mm | Flange | PA (Polyamide) | 9,30 V - 9,30 V | 2,00 bar - 8,00 bar | -10,00 °C - 50,00 °C | 700,00 l/min | Plug pattern form C according to DIN EN 175301-803 |
| | 产品 | | 6527型先导电磁阀 | | 货号 175727 | | 类型 6527 | | 5/2 - H/Z - normally open - inlet port 1 connected with outlet port 2, outlet port 4 connected with exhaust port 5, exhaust port 3 closed | 6,00 mm | Flange | PA (Polyamide) | 6,10 V - 6,10 V | 2,00 bar - 8,00 bar | -10,00 °C - 50,00 °C | 700,00 l/min | Plug - rectangular grid 5.08 |
|
|
