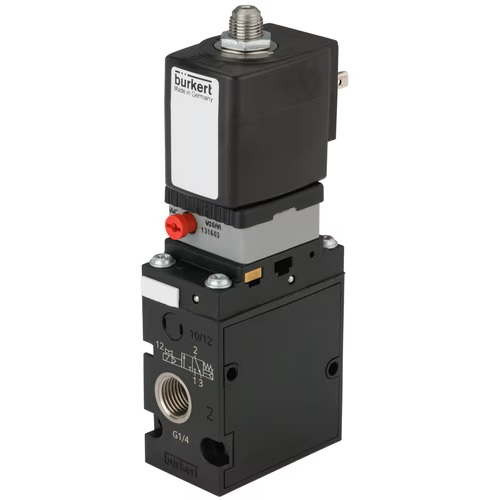

类型 6518 - 气动伺服辅助式二位三通电磁阀 # Bürkert
类型 6518 - 气动伺服辅助式二位三通电磁阀类型 6516 - 适合气动系统的二位三通电磁阀自 2025/8/1 起，6516 型不可再购买。 后续类型是（由于更新，可能略有不同）：6518 类型描述6518 型是一种伺服辅助式二位三通阀门，6519 型是一种二位三通、二位五通或三位五通阀。它们共同构成一个产品系列。这些阀门可以单独使用，也可以组合使用。它们运行时无需持续消耗空气，可用于控制双作用或单作用执行执行机构。 采用优质材料使得阀门也可在露天环境和化学环境下使用。本产品系列经过防爆认证的设备，可作 NAMUR 式贴阀快装。可选阀门作用方式 C 和 D，根据 IEC 61508 标准可达到 SIL2 安全等级（具体取决于安全装置的结构）。 | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 132457 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,110VAC/2W | | 货号 132459 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 110,00 V - 110,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,230VAC/2W | | 货号 132460 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常开,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 132461 | | 类型 6518 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常开,DN8mm,G1/4寸-G1/4寸,230VAC/2W | | 货号 132464 | | 类型 6518 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,NPT1/4寸-NPT1/4寸,24VDC/2W | | 货号 132725 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 144074 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 157446 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 0,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,本安/0.4W,本安防爆2G/D | | 货号 20000908 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,本安/0.4W,本安防爆2G/D | | 货号 20000910 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,本安/0.4W,本安防爆2G/D | | 货号 20000913 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,本安/0.4W,带手动开关,本安防爆2G/D | | 货号 20000926 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,本安,带手动开关,本安防爆2G/D | | 货号 20000927 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,NPT1/4寸-NPT1/4寸,本安/0.4W,本安防爆2G/D | | 货号 20000931 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常开,DN8,G1/4寸-G1/4寸,230VAC,耐高温线圈 | | 货号 20012787 | | 类型 6518 | | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,24VDC,耐高温线圈 | | 货号 20012791 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,NPT1/4寸-NPT1/4寸,230VUC/3W | | 货号 20014114 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction Box without fuse |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,NPT1/4寸-NPT1/4寸,24VUC,带手动开关,3m飞线,浇封防爆2G/D | | 货号 20021441 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 20034111 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,230VAC | | 货号 20045229 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,24VUC,带手动开关,3m飞线,浇封防爆2G/D | | 货号 20047735 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,本安,带手动开关,本安防爆 | | 货号 20049848 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 9,00 V - 9,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,24VDC | | 货号 20072986 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,230VUC,3m飞线 | | 货号 20111444 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,24VUC,3m飞线,浇封防爆2G/D | | 货号 20130065 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,230VAC | | 货号 20134390 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VDC/2W | | 货号 220174 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,NPT1/4寸-NPT1/4寸,24VDC/2W,带手动开关,耐高温线圈,带UL认证 | | 货号 296518 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,NPT1/4寸-NPT1/4寸,120VAC,带手动开关,耐高温线圈,带UL认证 | | 货号 296527 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 120,00 V - 120,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Plug pattern form A according to DIN EN 175301-803 |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W,3m飞线,浇封防爆2G/D | | 货号 350443 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W,5m飞线,浇封防爆2G/D | | 货号 350445 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W | | 货号 350446 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction Box without fuse |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W,5m飞线,浇封防爆2G/D | | 货号 350447 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W,3m飞线,浇封防爆2G/D | | 货号 360024 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,230VUC/3W | | 货号 368752 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 230,00 V - 230,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction Box without fuse |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,NPT1/4寸-NPT1/4寸,24VUC/3W,带手动开关,浇封防爆2G/D | | 货号 372091 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction box with threat NPT1/2" |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/3W | | 货号 374759 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction Box without fuse |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8,G1/4寸-G1/4寸,24VUC,浇封防爆2G/D | | 货号 377507 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Stainless steel | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Junction Box without fuse |
| | 可配置产品 | | 6518型先导电磁阀*3/2常闭,DN8mm,G1/4寸-G1/4寸,24VUC/1.8W,3m飞线,浇封防爆2G/D | | 货号 384046 | | 类型 6518 | | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | 8,00 mm | Internal thread | Brass | 24,00 V - 24,00 V | 2,00 bar - 10,00 bar | -10,00 °C - 55,00 °C | 1.300,00 l/min | Wire cable |
|
|
