类型 6624 - 二位二通和二位三通 Bürkert TwinPower 隔膜摇臂式电磁阀 # Bürkert

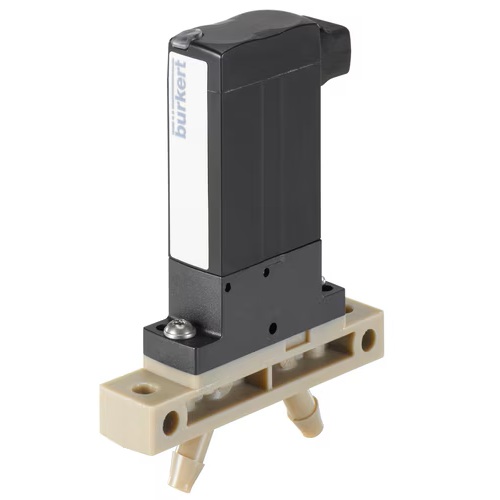

类型 6624 - 二位二通和二位三通 Bürkert TwinPower 隔膜摇臂式电磁阀类型描述6624 型是依据摇臂式原理的创新型执行机构。通过Bürkert TwinPower技术， 在不损失性能的前提下，执行机构尺寸大大减小。阀体宽度为 10 mm 介质隔离摇臂式电磁阀 6624，通径为1.6mm，抗压强度 2 bar，性能与传统16mm阀门一样。内置的能耗降低装置减少75%的消耗。结合其他设计特征，热能传递到介质的能耗损失降到最低。6624主要的设计优势在于出色的清洗性和高度可靠性。通过使用高性能的材料，6624型也非常适用于腐蚀性介质。 | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN0.8,FFKM密封,PEEK阀体,底板连接,24VDC | | 货号 227015 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FFKM密封,PEEK阀体,底板连接,24VDC,0.3m飞线 | | 货号 227814 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6,FFKM密封,PEEK阀体,底板连接,24VDC | | 货号 227815 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN0.8mm,FFKM密封,PEEK阀体,底板连接,24VDC | | 货号 229428 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FFKM密封,PEEK阀体,底板连接,24VDC | | 货号 229429 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,FFKM密封,PEEK阀体,底板连接,24VDC | | 货号 229430 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN0.8,FFKM密封,PEEK阀体,UNF1/4-28螺纹连接,24VDC | | 货号 241346 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FFKM密封,PEEK阀体,底板连接,12VDC,0.3m飞线 | | 货号 241359 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 V - 12,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FKM密封,PEEK阀体,插管连接,24VDC,0.3m飞线 | | 货号 241363 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FKM (Fluor rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FKM密封,PEEK阀体,UNF1/4-28,24VDC,0.3m飞线 | | 货号 241366 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FKM (Fluor rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,FKM密封,PPS阀体,底板连接,24VDC,0.3m飞线 | | 货号 241368 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN0.8mm,FFKM密封,PEEK阀体,UNF1/4-28,24VDC,0.3m飞线 | | 货号 241375 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,EPDM密封,PPS阀体,底板连接,24VDC,0.3m飞线 | | 货号 241385 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,FFKM密封,PEEK阀体,UNF1/4-28,24VDC,0.3m飞线 | | 货号 241389 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,FKM密封,PPS阀体,底板连接,24VDC,0.3m飞线 | | 货号 241395 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN0.8mm,EPDM密封,PPS阀体,底板连接,24VDC | | 货号 241399 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*2/2常闭,DN1.6mm,EPDM密封,PEEK阀体,插管连接,24VDC | | 货号 241409 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN0.8mm,EPDM密封,PPS阀体,底板连接,12VDC | | 货号 241428 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 12,00 V - 12,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN0.8,EPDM密封,PPS阀体,底板连接,24VDC | | 货号 241429 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN0.8mm,FFKM密封,PEEK阀体,UNF1/4-28,24VDC | | 货号 241432 | | 类型 6624 | | 0,80 mm | -1,00 bar - 5,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,EPDM密封,PEEK阀体,插管连接,24VDC | | 货号 241439 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,EPDM密封,PPS阀体,底板连接,12VDC | | 货号 241442 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 12,00 V - 12,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,EPDM密封,PPS阀体,底板连接,24VDC | | 货号 241443 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PPS (Polyphenylene sulphide) | EPDM (Ethylene-propylene-diene rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,FFKM密封,PEEK阀体,UNF1/4-28,24VDC | | 货号 241448 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | 15,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FFKM (Perfluoroelastomer rubber) |
| | 产品 | | 6624型介质隔离式TwinPower微型摇臂电磁阀*3/2通用功能,DN1.6mm,FKM密封,PEEK阀体,UNF1/4-28,24VDC | | 货号 241452 | | 类型 6624 | | 1,60 mm | -1,00 bar - 2,00 bar | 3/2 - T - for universal use - port connections 1 (P/NC), 2 (A/in/out) and 3 (R /NO) depending on application | direct-acting | 24,00 V - 24,00 V | -5,00 °C - 50,00 °C | PEEK (Polyetheretherketone) | FKM (Fluor rubber) |
|
|
