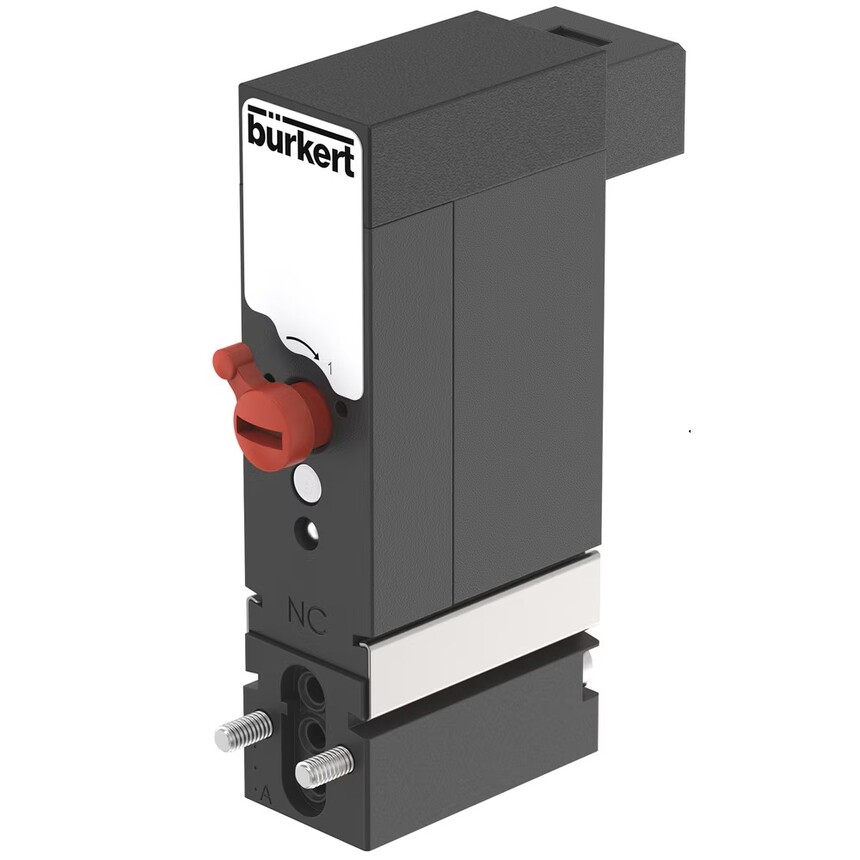

类型 6144 - 二位三通挡板式电磁阀，直动式 # Bürkert
类型 6144 - 二位三通挡板式电磁阀，直动式类型描述6144 型是一种直动式二位三通电磁阀，适用于中性气体和液体。通过在两个终点位置之间运动，开关元件（Flipper）将两个对置的阀门座的其中之一进行相应密封，另一个与工作接口相连接。当开关电磁线圈时，受磁场作用，由一个固定在 Flipper 上的永磁体来完成上述运动。Flipper 技术不仅性能数据非常出色，其开关噪音也非常低，并且磨损极小。此外集成的介质分离装置还可以用于气动应用以外的用途。为此可根据具体的应用情况提供不同的法兰接口，这些接口既可单独安装，也可组合安装。安装说明：为避免在运行条件下出现功能性故障，阀门必须与其他铁磁性材料保持至少 5 mm 的距离。 直动式 0 至 10 bar 低电气功率消耗 标准型，本安型 a 类版本 10 mm 结构宽度/11 mm 排列尺寸
| 产品 | | 6144型先导电磁阀*3/2常开,DN0.6mm,底板连接,24VDC | | 货号 175653 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,18~29VDC | | 货号 175656 | | 类型 6144 | | 0,60 mm | 0,00 bar - 7,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 11,37 V - 11,74 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC | | 货号 175682 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常开,DN0.6mm,底板连接,24VDC | | 货号 179098 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC | | 货号 181367 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常开,DN0.6mm,底板连接,24VDC | | 货号 181633 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,12VDC | | 货号 182862 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 12,00 V - 12,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC | | 货号 185504 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,UNF1/4-28,24VDC | | 货号 185740 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | -10,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC,0.5m飞线 | | 货号 202578 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC,0.3m飞线 | | 货号 203388 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC,0.3m飞线 | | 货号 211351 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型直动式微型Flipper电磁阀*3/2常闭,DN0.6,FKM密封,PPS阀体,侧部底板连接,24V/电池供电式 | | 货号 214196 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC | | 货号 225320 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC,0.3m飞线 | | 货号 227970 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常开,DN0.6mm,底板连接,24VDC,0.3m飞线 | | 货号 227971 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常开,DN0.6mm,底板连接,24VDC,0.1m飞线 | | 货号 230028 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/OUT), exhaust port 3 (R/NC) closed | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型先导电磁阀*3/2常闭,DN0.6mm,底板连接,24VDC,0.1m飞线 | | 货号 257023 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
| | 产品 | | 6144型直动式微型Flipper电磁阀*3/2常闭,DN0.6,FKM密封,PPS阀体,侧部底板连接,24V/电池供电式 | | 货号 463261 | | 类型 6144 | | 0,60 mm | 0,00 bar - 10,00 bar | 3/2 - C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conecte dwith exhaust port 3 (R/NO) | direct-acting | 24,00 V - 24,00 V | 0,00 °C - 55,00 °C | PPS (Polyphenylene sulphide) | FKM (Fluor rubber) |
|
|
