类型 2836 - 直动式二通比例电磁阀 # Bürkert

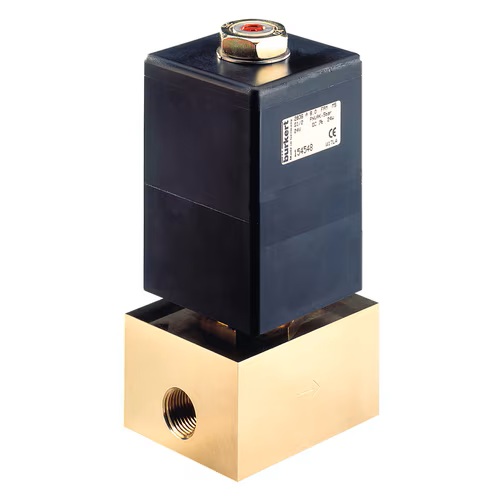

类型 2836 - 直动式二通比例电磁阀类型描述直动式比例阀 2836 型是电磁力驱动的控制阀，适用于相对流量较高的应用。阀门是常闭型。 适用于高流量 直动式，常闭 工作压力0 ...25 bar DN 3.0...12 mm 连接接口 1/2”和 3/4”
| 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN6.0mm,FKM密封,24VDC | | 货号 145654 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN3.0mm,FKM密封,24VDC | | 货号 154541 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 3,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 25,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN3.0mm,FKM密封,24VDC | | 货号 154542 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 3,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 25,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN4.0mm,FKM密封,24VDC | | 货号 154543 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 4,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 16,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN4.0mm,FKM密封,24VDC | | 货号 154544 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 4,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 16,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN6.0mm,FKM密封,24VDC | | 货号 154545 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G3/4寸*2/2常闭,DN6,FKM密封,24VDC | | 货号 154546 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN6.0mm,FKM密封,24VDC | | 货号 154547 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 154548 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 154549 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G3/4寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 154550 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 154551 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G3/4寸*2/2常闭,DN10mm,FKM密封,24VDC | | 货号 154552 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 10,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN10mm,FKM密封,24VDC | | 货号 154553 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 10,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G3/4寸*2/2常闭,DN12mm,FKM密封,24VDC | | 货号 154554 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN12mm,FKM密封,24VDC | | 货号 154555 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜NPT1/2寸*2/2常闭,DN4.0mm,FKM密封,24VDC | | 货号 164593 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 4,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 16,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜NPT1/2寸*2/2常闭,DN6.0mm,FKM密封,24VDC | | 货号 164594 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜NPT3/4寸*2/2常闭,DN6.0mm,FKM密封,24VDC | | 货号 164595 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜NPT3/4寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 164597 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜NPT3/4寸*2/2常闭,DN12mm,FKM密封,24VDC | | 货号 164599 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN6.0mm,EPDM密封,24VDC | | 货号 173186 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 6,00 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN4.0mm,EPDM密封,24VDC | | 货号 189345 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 4,00 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 16,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN12mm,FKM密封,24VDC | | 货号 193775 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN3.0mm,FKM密封,24VDC,氧气版本 | | 货号 203325 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 3,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 25,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/4寸*2/2常闭,DN8.0mm,FKM密封,24VDC | | 货号 213582 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 8,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN10mm,FKM密封,24VDC,氧气版本 | | 货号 217996 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 10,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G3/4寸*2/2常闭,DN12mm,EPDM密封,24VDC | | 货号 247190 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀不锈钢G1/2寸*2/2常闭,DN12mm,FKM密封,24VDC | | 货号 270915 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 12,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G3/4寸*2/2常闭,DN10mm,FKM密封,24VDC,氧气版本 | | 货号 284076 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 10,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN5.0mm,FKM密封,24VDC | | 货号 288042 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 5,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2836型比例电磁阀黄铜G1/2寸*2/2常闭,DN3.0mm,EPDM密封,24VDC | | 货号 370232 | | 类型 2836 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 3,00 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 25,00 bar | -30,00 °C - 90,00 °C |
|
|
|
