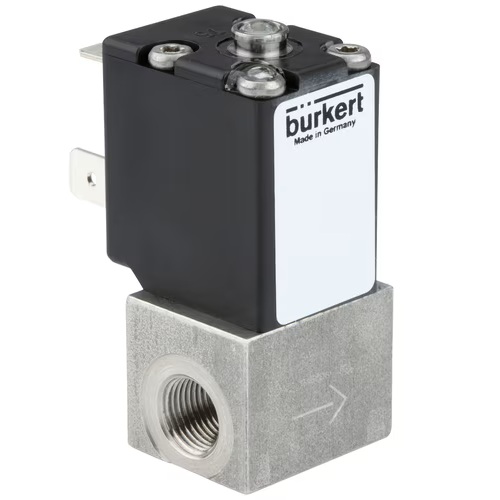

类型 2861 - 直动式二位二通基本型比例阀 # Bürkert
类型 2861 - 直动式二位二通基本型比例阀| 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC,氧气版本,泄漏率<10-4mbar l/sec | | 货号 20003124 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2861型比例电磁阀不锈钢底板连接*2/2常闭,DN1.0mm,FKM密封,24VDC,0.3m飞线 | | 货号 20046811 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN0.2mm,FKM密封,12VDC,氧气版本 | | 货号 20088552 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 247138 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Internal thread - M | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN1.6mm,FKM密封,24VDC | | 货号 249009 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 249896 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC | | 货号 249897 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 255535 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 255638 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN1,EPDM密封,24VDC | | 货号 259643 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀不锈钢底板连接*DN0.8,FKM密封,24VDC,脱油脱脂脱硅处理 | | 货号 267082 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜NPT1/8寸*DN1.2,FKM密封,24VDC | | 货号 268387 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC | | 货号 275069 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 275070 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN1.2,FKM密封,24VDC,0.3m飞线 | | 货号 305622 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,12VDC | | 货号 311316 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC,0.5m飞线 | | 货号 321971 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,12VDC,氧气版本 | | 货号 341041 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2861型比例电磁阀黄铜底板连接*2/2常闭,DN2,FKM密封,12VDC,0.3m飞线,可用于氧气 | | 货号 341704 | | 类型 2861 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
|
|
