类型 2871 - 直动式二通标准比例电磁阀 # Bürkert

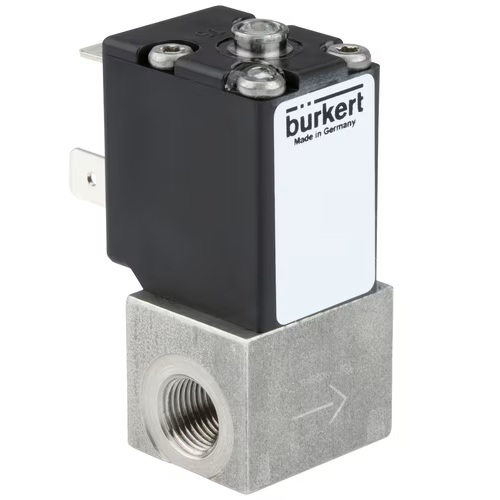

类型 2871 - 直动式二通标准比例电磁阀类型描述直动式电磁控制阀 2871 型，在控制回路中用作调节单元。由于采用弹性阀座密封件，阀门密闭性好（内置关断功能），能达到与通径相当的额定压力。阀门的柱塞无摩擦力，因而具有极佳的调节性能。该阀尤其适合于控制需求较高的应用（控制范围广，干燥气体等）。 控制范围广 快速响应 紧凑型结构 通径 DN 0.05 - 2.0 mm 连接接口1/8”或底板连接
| 产品 | | 2871型比例电磁阀不锈钢G1/8*2/2常闭,DN1mm,FKM密封,12VDC,高压差版本,氧气版本 | | 货号 20040130 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.6mm,FKM密封,24VDC,脱油脱脂脱硅处理 | | 货号 20041184 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN1.6,EPDM密封,24VDC | | 货号 20053048 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN0.05,EPDM密封,介质压力-1~3bar,12VDC,高压差版本,部件经脱硅处理 | | 货号 20063930 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 20080393 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 235992 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 235993 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 235994 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 235995 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 235997 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 235999 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 236000 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 236001 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 236002 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 236003 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN1.2mm,FKM密封,24VDC | | 货号 236260 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC | | 货号 236261 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC | | 货号 236262 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC | | 货号 236263 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN1.6,FKM密封,24VDC | | 货号 236266 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC | | 货号 236267 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC | | 货号 236268 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN2.0,FKM密封,24VDC | | 货号 236272 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC | | 货号 236273 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC | | 货号 236274 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.2mm,FKM密封,24VDC,0.3m飞线,脱油脱脂脱硅处理 | | 货号 237043 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC,高压差版本 | | 货号 238928 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC,高压差版本 | | 货号 238930 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC,高压差版本 | | 货号 238931 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC,高压差版本 | | 货号 238932 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC,高压差版本 | | 货号 238933 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC,高压差版本 | | 货号 238934 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC,高压差版本 | | 货号 238936 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC,高压差版本 | | 货号 238937 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC,高压差版本 | | 货号 238939 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC,高压差版本 | | 货号 238940 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.2mm,FKM密封,12VDC,0.3m飞线,氧气版本 | | 货号 240915 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN0.1,FKM密封,24VDC,0.3m飞线,脱油脱脂脱硅处理 | | 货号 249236 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.6mm,FKM密封,24VDC,高压差版本 | | 货号 250073 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,12VDC,脱油脱脂脱硅处理 | | 货号 254233 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.05mm,PCTFE+FKM密封,24VDC | | 货号 254443 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.05mm,PCTFE+FKM密封,24VDC | | 货号 254444 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.1mm,PCTFE+FKM密封,24VDC | | 货号 254446 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.1,PCTFE+FKM密封,24VDC | | 货号 254447 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 254448 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 254450 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.3mm,FKM密封,24VDC | | 货号 254451 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.3mm,FKM密封,24VDC | | 货号 254452 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.4mm,FKM密封,24VDC | | 货号 254453 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.4mm,FKM密封,24VDC | | 货号 254454 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC | | 货号 254455 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC | | 货号 254457 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.8mm,EPDM密封,24VDC | | 货号 254534 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.05mm,PCTFE+FKM密封,24VDC | | 货号 254971 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN0.1mm,PCTFE+FKM密封,24VDC | | 货号 254972 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.1mm,PCTFE+FKM密封,24VDC | | 货号 254973 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 254975 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.3mm,FKM密封,24VDC | | 货号 254978 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.4mm,FKM密封,24VDC | | 货号 254980 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC | | 货号 254981 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC | | 货号 254982 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.05mm,PCTFE+FKM密封,24VDC | | 货号 254985 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.05,PCTFE+FKM密封,24VDC | | 货号 254986 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.1mm,PCTFE+FKM密封,24VDC | | 货号 254987 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.1,PCTFE+FKM密封,24VDC | | 货号 254988 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 254989 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 254990 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.3,FKM密封,24VDC | | 货号 254992 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.4mm,FKM密封,24VDC | | 货号 254993 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.4,FKM密封,24VDC | | 货号 254994 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.6,FKM密封,介质压力-1~12bar,24VDC | | 货号 254996 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,12VDC,高压差版本 | | 货号 255425 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*DN1.6,FKM密封,24VDC,高压差版本 | | 货号 255426 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC,高压差版本,氧气版本 | | 货号 255451 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN2.0mm,FKM密封,12VDC,高压差版本,氧气版本 | | 货号 255453 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.8mm,EPDM密封,12VDC,0.3m飞线,高压差版本,部件经脱硅处理 | | 货号 255568 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Flange | 12,00 V - 12,00 V | -1,00 bar - 12,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,12VDC,0.3m飞线,高压差版本,氧气版本 | | 货号 255574 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC,0.3m飞线,高压差版本 | | 货号 255583 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN1.2,FKM密封,24VDC,0.3m飞线,高压差版本 | | 货号 255585 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.6mm,FKM密封,12VDC,0.3m飞线,高压差版本 | | 货号 255586 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,12VDC,0.3m飞线,高压差版本 | | 货号 255588 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN2.0mm,FKM密封,24VDC,0.3m飞线,高压差版本 | | 货号 255593 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.8mm,EPDM密封,24VDC,高压差版本 | | 货号 255596 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.0mm,FKM密封,24VDC,高压差版本 | | 货号 255602 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8*2/2常闭,DN1mm,FKM密封,12VDC,高压差版本 | | 货号 255603 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.2mm,EPDM密封,24VDC,高压差版本 | | 货号 255607 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.6mm,EPDM密封,24VDC,高压差版本 | | 货号 255617 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8*2/2常闭,DN1.6mm,FKM密封,12VDC,高压差版本 | | 货号 255619 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8*2/2常闭,DN1.6mm,FKM密封,12VDC,高压差版本 | | 货号 255622 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,12VDC,高压差版本 | | 货号 255631 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC,高压差版本 | | 货号 255632 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,24VDC,0.3m飞线 | | 货号 257372 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.4mm,EPDM密封,24VDC | | 货号 258215 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN0.2,FKM密封,介质压力-1~10bar,24VDC,0.3m飞线 | | 货号 258714 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN0.1,PCTFE+FKM密封,24VDC,飞线 | | 货号 258715 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,10 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.3mm,FKM密封,24VDC,0.3m飞线 | | 货号 259956 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.2mm,FKM密封,24VDC,0.3m飞线 | | 货号 260930 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.2mm,FKM密封,24VDC | | 货号 262110 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.6mm,EPDM密封,24VDC | | 货号 263531 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 263544 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板链接*DN2.0,FKM密封,24VDC,带0.3m飞线,高压差版本 | | 货号 264594 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.0mm,EPDM密封,24VDC,高压差版本 | | 货号 265641 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.4,FKM密封,24VDC | | 货号 266964 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.4,FKM密封,24VDC,脱油脱脂脱硅处理 | | 货号 267080 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.3,FKM密封,24VDC,脱油脱脂脱硅处理 | | 货号 267081 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.3mm,FKM密封,24VDC,0.3m飞线 | | 货号 267487 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC,0.3m飞线 | | 货号 268755 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.0mm,FKM密封,12VDC,氧气版本 | | 货号 271741 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN1.0mm,EPDM密封,24VDC | | 货号 272852 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.4,FKM密封,24VDC | | 货号 274327 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.2mm,EPDM密封,24VDC | | 货号 274676 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.3mm,FKM密封,24VDC,0.3m飞线 | | 货号 275162 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.2mm,FKM密封,24VDC,高压差版本,氧气版本 | | 货号 276807 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*DN0.6,EPDM密封,24VDC | | 货号 277479 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.8mm,EPDM密封,24VDC,高压差版本 | | 货号 278225 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC,0.3m飞线,氧气版本 | | 货号 279427 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC | | 货号 280322 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜NPT1/8寸*2/2常闭,DN0.3mm,FKM密封,12VDC,氧气版本 | | 货号 280548 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Brass | Internal thread - NPT | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.0mm,FKM密封,12VDC,氧气版本 | | 货号 284012 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*DN0.05,PCTFE+FKM密封,24VDC,0.3m飞线,脱油脱脂脱硅处理 | | 货号 284669 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,05 mm | PCTFE (PolychlorotrifluoroEthylene) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN2.0mm,FKM密封,24VDC,高压差版本,氧气版本 | | 货号 290010 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.4mm,FKM密封,24VDC,0.3m飞线,氧气版本 | | 货号 291339 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN2.0,FKM密封,24VDC,高压差版本 | | 货号 291882 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.4,EPDM密封,24VDC | | 货号 292612 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*DN0.4,FKM密封,24VDC | | 货号 292896 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.3mm,EPDM密封,24VDC | | 货号 300492 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*DN0.4,FKM密封,24VDC,0.3m飞线 | | 货号 302849 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,40 mm | FKM (Fluor rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.8mm,FKM密封,24VDC | | 货号 308100 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - M | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,24VDC,高压差版本,氧气版本 | | 货号 313723 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.3mm,FKM密封,12VDC,0.3m飞线 | | 货号 313930 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.0mm,FKM密封,24VDC,氧气版本 | | 货号 314588 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢G1/8寸*2/2常闭,DN0.8mm,PCTFE+FFKM密封,24VDC | | 货号 314715 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN2.0mm,PCTFE+FFKM密封,24VDC,高压差版本 | | 货号 323938 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | PCTFE (PolychlorotrifluoroEthylene) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢底板连接*2/2常闭,DN0.3mm,EPDM密封,24VDC | | 货号 325660 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | EPDM (Ethylene-propylene-diene rubber) | Stainless steel | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN1.6mm,FKM密封,24VDC,高压差版本 | | 货号 326977 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 24,00 V - 24,00 V | -1,00 bar - 6,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN2.0mm,FKM密封,12VDC,高压差版本,脱油脱脂脱硅处理 | | 货号 332524 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2,00 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 3,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.2mm,FKM密封,12VDC,高压差版本,氧气版本 | | 货号 337724 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,20 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 8,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*DN0.6,FKM密封,24VDC | | 货号 338677 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 1,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8*2/2常闭,DN1mm,FKM密封,24VDC | | 货号 338681 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN1.0mm,FKM密封,12VDC,高压差版本,氧气版本 | | 货号 348851 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,00 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 10,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,12VDC | | 货号 358280 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.2,FKM密封,24VDC | | 货号 360153 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,20 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 2,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*2/2常闭,DN0.6mm,FKM密封,24VDC,高压差版本 | | 货号 360155 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.3mm,EPDM密封,24VDC | | 货号 371319 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,30 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Flange | 24,00 V - 24,00 V | -1,00 bar - 10,00 bar | -30,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜底板连接*2/2常闭,DN0.8mm,FKM密封,12VDC,高压差版本,氧气版本 | | 货号 379155 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Flange | 12,00 V - 12,00 V | -1,00 bar - 5,00 bar | -10,00 °C - 60,00 °C |
| | 产品 | | 2871型比例电磁阀不锈钢NPT1/8寸*DN1.6,FKM密封,24VDC | | 货号 383311 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 1,60 mm | FKM (Fluor rubber) | Stainless steel | Internal thread - NPT | 24,00 V - 24,00 V | -1,00 bar - 1,00 bar | -10,00 °C - 90,00 °C |
| | 产品 | | 2871型比例电磁阀黄铜G1/8寸*2/2常闭,DN0.8mm,FKM密封,12VDC,氧气版本 | | 货号 385608 | | 类型 2871 | | 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 0,80 mm | FKM (Fluor rubber) | Brass | Internal thread - G | 12,00 V - 12,00 V | -1,00 bar - 12,00 bar | -10,00 °C - 60,00 °C |
|
|
