WD_FB04

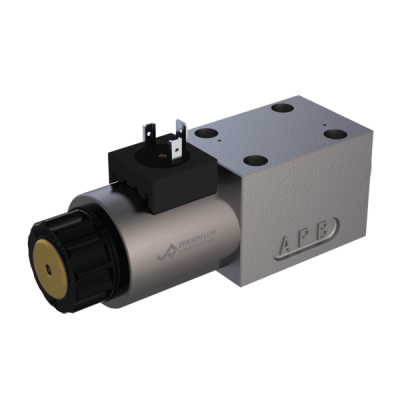

电磁阀式滑阀（滑动线圈）
Description
直动式电磁操作活塞阀有4个端口，为5腔系统。活塞缩进或带弹簧回复。在电磁阀断电的情况下，活塞在弹簧的作用下保持在中间位置(4/3)，或切换回正常位置(4/2)。在脉冲滑块(4/2)的作用下，活塞通过棘爪被固定在相关的开关位置。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。标准电压和特殊电压范围广。
Application
阀芯阀主要是用来控制运动方向和夹持液压缸和马达。在系统设计中应考虑阀门的开关能力和可能的泄漏。电磁阀适用于各种类型的机床和搬运系统。微型阀用于对体积小、重量轻有要求的场合。
Key facts
电磁换向阀
法兰设计
4/2通脉冲设计闭锁
4/3通带弹簧中位
4/2通带弹簧回位
Qmax = 30 l/min
pmax = 350 bar。
WDEFB04-AB3-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AB3-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AB3-_-X5 | Economy | Standard | without coil |
WDEFB04-AB3-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AB3-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AB3-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AB3-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AB3-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AB3-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AB3-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AB1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AB1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AB1-_-X5 | Economy | Standard | without coil |
WDEFB04-AB1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AB1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AB1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AB1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AB1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AB1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AB1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AB2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AB2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AB2-_-X5 | Economy | Standard | without coil |
WDEFB04-AB2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AB2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AB2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AB2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AB2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AB2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AB2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-ACB-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-ACB-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-ACB-_-X5 | Economy | Standard | without coil |
WDEFB04-ACB-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-ACB-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-ACB-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-ACB-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-ACB-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-ACB-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-ACB-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AC1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AC1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AC1-_-X5 | Economy | Standard | without coil |
WDEFB04-AC1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AC1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AC1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AC1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AC1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AC1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AC1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-CB2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-CB2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-CB2-_-X5 | Economy | Standard | without coil |
WDEFB04-CB2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-CB2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-CB2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-CB2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-CB2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-CB2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-CB2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-ADB-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-ADB-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-ADB-_-X5 | Economy | Standard | without coil |
WDEFB04-ADB-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-ADB-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-ADB-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-ADB-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-ADB-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-ADB-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-ADB-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AD1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AD1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AD1-_-X5 | Economy | Standard | without coil |
WDEFB04-AD1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AD1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AD1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AD1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AD1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AD1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AD1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-DB2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-DB2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-DB2-_-X5 | Economy | Standard | without coil |
WDEFB04-DB2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-DB2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-DB2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-DB2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-DB2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-DB2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-DB2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-BEA-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-BEA-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-BEA-_-X5 | Economy | Standard | without coil |
WDEFB04-BEA-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-BEA-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-BEA-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-BEA-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-BEA-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-BEA-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-BEA-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-BE1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-BE1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-BE1-_-X5 | Economy | Standard | without coil |
WDEFB04-BE1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-BE1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-BE1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-BE1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-BE1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-BE1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-BE1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-EA2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-EA2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-EA2-_-X5 | Economy | Standard | without coil |
WDEFB04-EA2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-EA2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-EA2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-EA2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-EA2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-EA2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-EA2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AFB-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AFB-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AFB-_-X5 | Economy | Standard | without coil |
WDEFB04-AFB-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AFB-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AFB-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AFB-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AFB-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AFB-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AFB-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AF1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AF1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AF1-_-X5 | Economy | Standard | without coil |
WDEFB04-AF1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AF1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AF1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AF1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AF1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AF1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AF1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-FB2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-FB2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-FB2-_-X5 | Economy | Standard | without coil |
WDEFB04-FB2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-FB2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-FB2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-FB2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-FB2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-FB2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-FB2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AGB-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AGB-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AGB-_-X5 | Economy | Standard | without coil |
WDEFB04-AGB-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AGB-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AGB-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AGB-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AGB-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AGB-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AGB-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-AG1-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-AG1-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-AG1-_-X5 | Economy | Standard | without coil |
WDEFB04-AG1-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-AG1-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-AG1-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-AG1-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-AG1-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-AG1-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-AG1-1/x-R230 | Economy | Low leakage | 230 VAC |
WDEFB04-GB2-_-G12 | Economy | Standard | 12 VDC |
WDEFB04-GB2-_-G24 | Economy | Standard | 24 VDC |
WDEFB04-GB2-_-X5 | Economy | Standard | without coil |
WDEFB04-GB2-_-R115 | Economy | Standard | 115 VAC |
WDEFB04-GB2-_-R230 | Economy | Standard | 230 VAC |
WDEFB04-GB2-1/x-G12 | Economy | Low leakage | 12 VDC |
WDEFB04-GB2-1/x-G24 | Economy | Low leakage | 24 VDC |
WDEFB04-GB2-1/x-X5 | Economy | Low leakage | without coil |
WDEFB04-GB2-1/x-R115 | Economy | Low leakage | 115 VAC |
WDEFB04-GB2-1/x-R230 | Economy | Low leakage | 230 VAC |
WDMFB04-AB3-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AB3-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AB3-_-X5 | Medium | Standard | without coil |
WDMFB04-AB3-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AB3-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AB3-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AB3-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AB3-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AB3-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AB3-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AB1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AB1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AB1-_-X5 | Medium | Standard | without coil |
WDMFB04-AB1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AB1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AB1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AB1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AB1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AB1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AB1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AB2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AB2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AB2-_-X5 | Medium | Standard | without coil |
WDMFB04-AB2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AB2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AB2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AB2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AB2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AB2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AB2-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-ACB-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-ACB-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-ACB-_-X5 | Medium | Standard | without coil |
WDMFB04-ACB-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-ACB-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-ACB-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-ACB-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-ACB-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-ACB-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-ACB-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AC1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AC1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AC1-_-X5 | Medium | Standard | without coil |
WDMFB04-AC1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AC1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AC1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AC1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AC1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AC1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AC1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-CB2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-CB2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-CB2-_-X5 | Medium | Standard | without coil |
WDMFB04-CB2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-CB2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-CB2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-CB2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-CB2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-CB2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-CB2-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-ADB-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-ADB-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-ADB-_-X5 | Medium | Standard | without coil |
WDMFB04-ADB-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-ADB-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-ADB-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-ADB-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-ADB-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-ADB-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-ADB-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AD1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AD1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AD1-_-X5 | Medium | Standard | without coil |
WDMFB04-AD1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AD1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AD1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AD1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AD1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AD1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AD1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-DB2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-DB2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-DB2-_-X5 | Medium | Standard | without coil |
WDMFB04-DB2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-DB2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-DB2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-DB2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-DB2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-DB2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-DB2-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-BEA-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-BEA-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-BEA-_-X5 | Medium | Standard | without coil |
WDMFB04-BEA-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-BEA-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-BEA-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-BEA-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-BEA-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-BEA-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-BEA-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-BE1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-BE1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-BE1-_-X5 | Medium | Standard | without coil |
WDMFB04-BE1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-BE1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-BE1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-BE1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-BE1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-BE1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-BE1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-EA2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-EA2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-EA2-_-X5 | Medium | Standard | without coil |
WDMFB04-EA2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-EA2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-EA2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-EA2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-EA2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-EA2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-EA2-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AFB-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AFB-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AFB-_-X5 | Medium | Standard | without coil |
WDMFB04-AFB-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AFB-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AFB-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AFB-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AFB-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AFB-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AFB-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AF1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AF1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AF1-_-X5 | Medium | Standard | without coil |
WDMFB04-AF1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AF1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AF1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AF1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AF1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AF1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AF1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-FB2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-FB2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-FB2-_-X5 | Medium | Standard | without coil |
WDMFB04-FB2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-FB2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-FB2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-FB2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-FB2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-FB2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-FB2-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AGB-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AGB-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AGB-_-X5 | Medium | Standard | without coil |
WDMFB04-AGB-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AGB-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AGB-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AGB-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AGB-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AGB-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AGB-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-AG1-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-AG1-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-AG1-_-X5 | Medium | Standard | without coil |
WDMFB04-AG1-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-AG1-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-AG1-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-AG1-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-AG1-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-AG1-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-AG1-1/x-R230 | Medium | Low leakage | 230 VAC |
WDMFB04-GB2-_-G12 | Medium | Standard | 12 VDC |
WDMFB04-GB2-_-G24 | Medium | Standard | 24 VDC |
WDMFB04-GB2-_-X5 | Medium | Standard | without coil |
WDMFB04-GB2-_-R115 | Medium | Standard | 115 VAC |
WDMFB04-GB2-_-R230 | Medium | Standard | 230 VAC |
WDMFB04-GB2-1/x-G12 | Medium | Low leakage | 12 VDC |
WDMFB04-GB2-1/x-G24 | Medium | Low leakage | 24 VDC |
WDMFB04-GB2-1/x-X5 | Medium | Low leakage | without coil |
WDMFB04-GB2-1/x-R115 | Medium | Low leakage | 115 VAC |
WDMFB04-GB2-1/x-R230 | Medium | Low leakage | 230 VAC |
