WDMFA06_L8_M

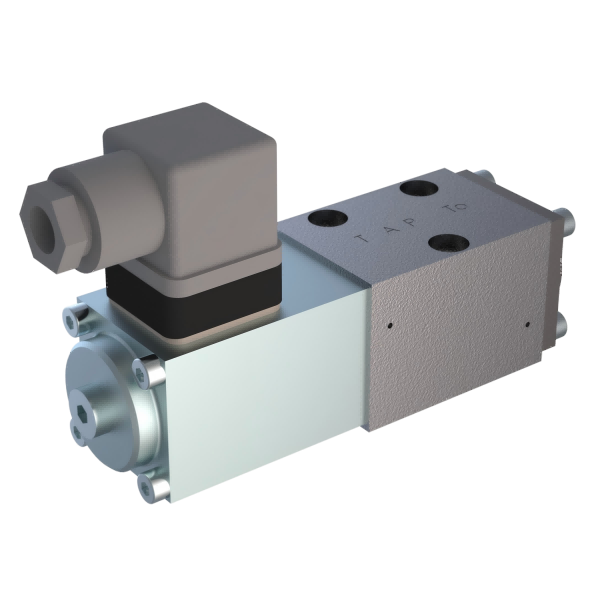

电磁阀式滑阀（滑动线圈）
Description
直动式电磁操作活塞阀有4个端口，为5腔系统。当电磁铁断电时，活塞在弹簧的作用下被保持在中间位置（4/3）或切换回原点位置（4/2）。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。标准电压和特殊电压范围广。
Application
阀芯阀主要是用来控制运动方向和夹持液压缸和马达。运动方向由阀门活塞的位置及其符号决定。在系统设计中应考虑阀门的开关能力和可能的泄漏。电磁阀适用于各种机床和搬运系统。
Key facts
法兰式设计
4/3通，中间位置带弹簧中心
4/2通，带弹簧回位
Qmax = 80 l/min
pmax = 350 bar。
| WDMFA06-ACB-G12 | 12 VDC |
| WDMFA06-ACB-G24 | 24 VDC |
| WDMFA06-ACB-R115 | 115 VAC |
| WDMFA06-ACB-R230 | 230 VAC |
| WDMFA06-ADB-G12 | 12 VDC |
| WDMFA06-ADB-G24 | 24 VDC |
| WDMFA06-ADB-R115 | 115 VAC |
| WDMFA06-ADB-R230 | 230 VAC |
| WDMFA06-BEA-G12 | 12 VDC |
| WDMFA06-BEA-G24 | 24 VDC |
| WDMFA06-BEA-R115 | 115 VAC |
| WDMFA06-BEA-R230 | 230 VAC |
| WDMFA06-AFB-G12 | 12 VDC |
| WDMFA06-AFB-G24 | 24 VDC |
| WDMFA06-AFB-R115 | 115 VAC |
| WDMFA06-AFB-R230 | 230 VAC |
| WDMFA06-AGB-G12 | 12 VDC |
| WDMFA06-AGB-G24 | 24 VDC |
| WDMFA06-AGB-R115 | 115 VAC |
| WDMFA06-AGB-R230 | 230 VAC |
| WDMFA06-AB1-G12 | 12 VDC |
| WDMFA06-AB1-G24 | 24 VDC |
| WDMFA06-AB1-R115 | 115 VAC |
| WDMFA06-AB1-R230 | 230 VAC |
| WDMFA06-AB2-G12 | 12 VDC |
| WDMFA06-AB2-G24 | 24 VDC |
| WDMFA06-AB2-R115 | 115 VAC |
| WDMFA06-AB2-R230 | 230 VAC |
| WDMFA06-AC1-G12 | 12 VDC |
| WDMFA06-AC1-G24 | 24 VDC |
| WDMFA06-AC1-R115 | 115 VAC |
| WDMFA06-AC1-R230 | 230 VAC |
| WDMFA06-CB2-G12 | 12 VDC |
| WDMFA06-CB2-G24 | 24 VDC |
| WDMFA06-CB2-R115 | 115 VAC |
| WDMFA06-CB2-R230 | 230 VAC |
| WDMFA06-AD1-G12 | 12 VDC |
| WDMFA06-AD1-G24 | 24 VDC |
| WDMFA06-AD1-R115 | 115 VAC |
| WDMFA06-AD1-R230 | 230 VAC |
| WDMFA06-DB2-G12 | 12 VDC |
| WDMFA06-DB2-G24 | 24 VDC |
| WDMFA06-DB2-R115 | 115 VAC |
| WDMFA06-DB2-R230 | 230 VAC |
| WDMFA06-BE1-G12 | 12 VDC |
| WDMFA06-BE1-G24 | 24 VDC |
| WDMFA06-BE1-R115 | 115 VAC |
| WDMFA06-BE1-R230 | 230 VAC |
| WDMFA06-EA2-G12 | 12 VDC |
| WDMFA06-EA2-G24 | 24 VDC |
| WDMFA06-EA2-R115 | 115 VAC |
| WDMFA06-EA2-R230 | 230 VAC |
| WDMFA06-AF1-G12 | 12 VDC |
| WDMFA06-AF1-G24 | 24 VDC |
| WDMFA06-AF1-R115 | 115 VAC |
| WDMFA06-AF1-R230 | 230 VAC |
| WDMFA06-FB2-G12 | 12 VDC |
| WDMFA06-FB2-G24 | 24 VDC |
| WDMFA06-FB2-R115 | 115 VAC |
| WDMFA06-FB2-R230 | 230 VAC |
| WDMFA06-AG1-G12 | 12 VDC |
| WDMFA06-AG1-G24 | 24 VDC |
| WDMFA06-AG1-R115 | 115 VAC |
| WDMFA06-AG1-R230 | 230 VAC |
| WDMFA06-GB2-G12 | 12 VDC |
| WDMFA06-GB2-G24 | 24 VDC |
| WDMFA06-GB2-R115 | 115 VAC |
| WDMFA06-GB2-R230 | 230 VAC |
