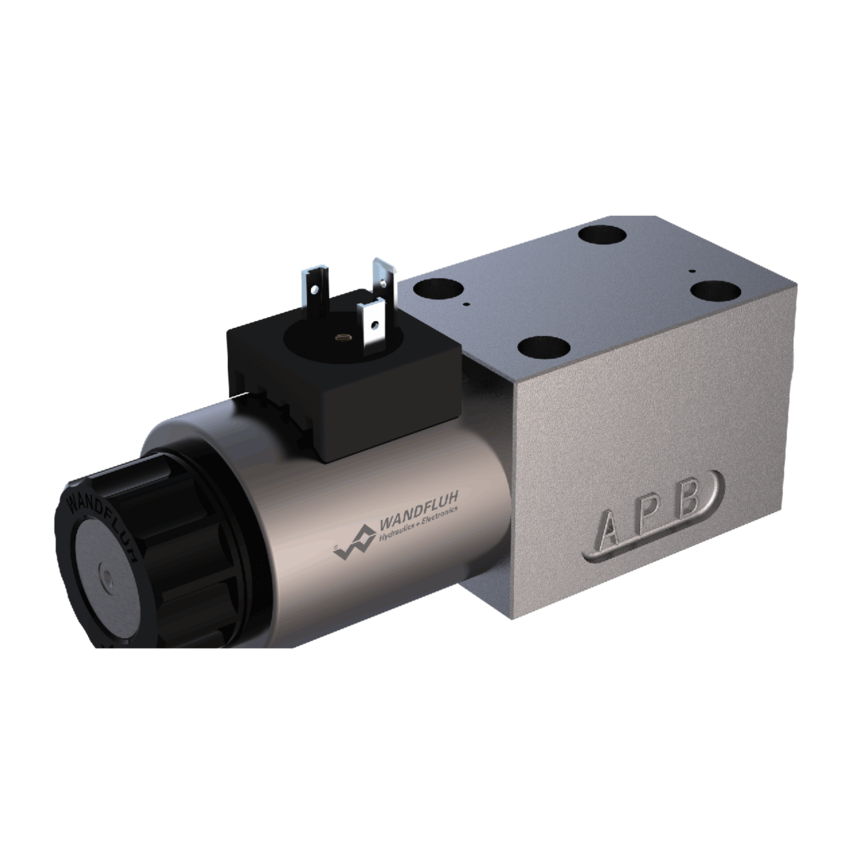

WDMFA06
电磁阀式滑阀（滑动线圈）
Description
直动式电磁操作活塞阀有4个端口，为5腔系统。活塞缩进或带弹簧回复。在电磁阀断电的情况下，活塞在弹簧的作用下保持在中间位置(4/3)，或切换回正常位置(4/2)。在脉冲滑块(4/2)的作用下，活塞通过棘爪被固定在相关的开关位置。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。标准电压和特殊电压范围广。
Application
阀芯阀主要是用来控制运动方向和夹持液压缸和马达。运动方向由阀门活塞的位置及其符号决定。在系统设计中应考虑阀门的开关能力和可能的泄漏。电磁阀适用于各种机床和搬运系统。
Key facts
电磁换向阀
法兰设计
4/2通脉冲设计闭锁
4/3通带弹簧中位
4/2通带弹簧回位
Qmax = 80 l/min
pmax = 350 bar。
| WDMFA06-AB3-G12 | 12 VDC |
| WDMFA06-AB3-G24 | 24 VDC |
| WDMFA06-AB3-X5 | without coil |
| WDMFA06-AB3-R115 | 115 VAC |
| WDMFA06-AB3-R230 | 230 VAC |
| WDMFA06-AB1-G12 | 12 VDC |
| WDMFA06-AB1-G24 | 24 VDC |
| WDMFA06-AB1-X5 | without coil |
| WDMFA06-AB1-R115 | 115 VAC |
| WDMFA06-AB1-R230 | 230 VAC |
| WDMFA06-AB2-G12 | 12 VDC |
| WDMFA06-AB2-G24 | 24 VDC |
| WDMFA06-AB2-X5 | without coil |
| WDMFA06-AB2-R115 | 115 VAC |
| WDMFA06-AB2-R230 | 230 VAC |
| WDMFA06-ACB-G12 | 12 VDC |
| WDMFA06-ACB-G24 | 24 VDC |
| WDMFA06-ACB-X5 | without coil |
| WDMFA06-ACB-R115 | 115 VAC |
| WDMFA06-ACB-R230 | 230 VAC |
| WDMFA06-AC1-G12 | 12 VDC |
| WDMFA06-AC1-G24 | 24 VDC |
| WDMFA06-AC1-X5 | without coil |
| WDMFA06-AC1-R115 | 115 VAC |
| WDMFA06-AC1-R230 | 230 VAC |
| WDMFA06-CB2-G12 | 12 VDC |
| WDMFA06-CB2-G24 | 24 VDC |
| WDMFA06-CB2-X5 | without coil |
| WDMFA06-CB2-R115 | 115 VAC |
| WDMFA06-CB2-R230 | 230 VAC |
| WDMFA06-ADB-G12 | 12 VDC |
| WDMFA06-ADB-G24 | 24 VDC |
| WDMFA06-ADB-X5 | without coil |
| WDMFA06-ADB-R115 | 115 VAC |
| WDMFA06-ADB-R230 | 230 VAC |
| WDMFA06-AD1-G12 | 12 VDC |
| WDMFA06-AD1-G24 | 24 VDC |
| WDMFA06-AD1-X5 | without coil |
| WDMFA06-AD1-R115 | 115 VAC |
| WDMFA06-AD1-R230 | 230 VAC |
| WDMFA06-DB2-G12 | 12 VDC |
| WDMFA06-DB2-G24 | 24 VDC |
| WDMFA06-DB2-X5 | without coil |
| WDMFA06-DB2-R115 | 115 VAC |
| WDMFA06-DB2-R230 | 230 VAC |
| WDMFA06-BEA-G12 | 12 VDC |
| WDMFA06-BEA-G24 | 24 VDC |
| WDMFA06-BEA-X5 | without coil |
| WDMFA06-BEA-R115 | 115 VAC |
| WDMFA06-BEA-R230 | 230 VAC |
| WDMFA06-BE1-G12 | 12 VDC |
| WDMFA06-BE1-G24 | 24 VDC |
| WDMFA06-BE1-X5 | without coil |
| WDMFA06-BE1-R115 | 115 VAC |
| WDMFA06-BE1-R230 | 230 VAC |
| WDMFA06-EA2-G12 | 12 VDC |
| WDMFA06-EA2-G24 | 24 VDC |
| WDMFA06-EA2-X5 | without coil |
| WDMFA06-EA2-R115 | 115 VAC |
| WDMFA06-EA2-R230 | 230 VAC |
| WDMFA06-AFB-G12 | 12 VDC |
| WDMFA06-AFB-G24 | 24 VDC |
| WDMFA06-AFB-X5 | without coil |
| WDMFA06-AFB-R115 | 115 VAC |
| WDMFA06-AFB-R230 | 230 VAC |
| WDMFA06-AF1-G12 | 12 VDC |
| WDMFA06-AF1-G24 | 24 VDC |
| WDMFA06-AF1-X5 | without coil |
| WDMFA06-AF1-R115 | 115 VAC |
| WDMFA06-AF1-R230 | 230 VAC |
| WDMFA06-FB2-G12 | 12 VDC |
| WDMFA06-FB2-G24 | 24 VDC |
| WDMFA06-FB2-X5 | without coil |
| WDMFA06-FB2-R115 | 115 VAC |
| WDMFA06-FB2-R230 | 230 VAC |
| WDMFA06-AGB-G12 | 12 VDC |
| WDMFA06-AGB-G24 | 24 VDC |
| WDMFA06-AGB-X5 | without coil |
| WDMFA06-AGB-R115 | 115 VAC |
| WDMFA06-AGB-R230 | 230 VAC |
| WDMFA06-AG1-G12 | 12 VDC |
| WDMFA06-AG1-G24 | 24 VDC |
| WDMFA06-AG1-X5 | without coil |
| WDMFA06-AG1-R115 | 115 VAC |
| WDMFA06-AG1-R230 | 230 VAC |
| WDMFA06-GB2-G12 | 12 VDC |
| WDMFA06-GB2-G24 | 24 VDC |
| WDMFA06-GB2-X5 | without coil |
| WDMFA06-GB2-R115 | 115 VAC |
| WDMFA06-GB2-R230 | 230 VAC |
WDMFA06_Z
| WDMFA06-Z603 | PNP / NO / Single |
| WDMFA06-Z482 | PNP / NC / Single |
| WDMFA06-Z680 | NPN / NO / Single |
| WDMFA06-Z72 / Z603 | PNP / NO / Double* |
| WDMFA06-Z72 / Z482 | PNP / NC / Double* |
| WDMFA06-Z72 / Z680 | NPN / NO / Double* |
