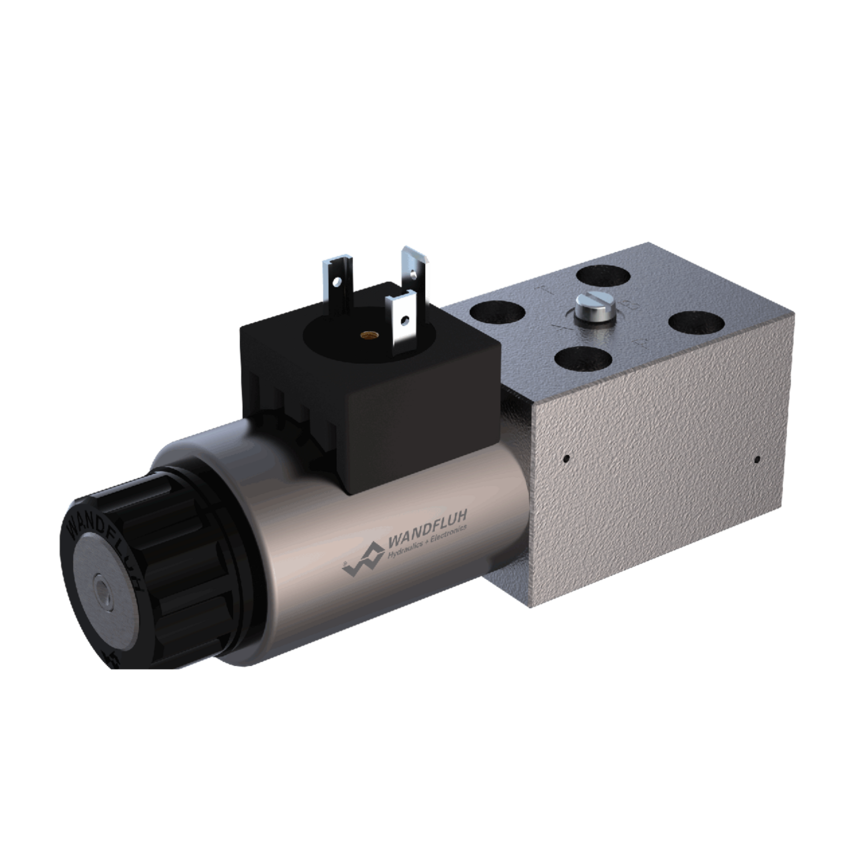

WWMFB04 电磁阀式滑阀 软控制（滑动线圈） # WANDFLUH // 万福乐


WWMFB04

电磁阀式滑阀 软控制（滑动线圈）

Description

直动式电磁操作活塞阀有4个端口，为5腔系统。当电磁铁断电时，活塞被保持在中间位置（4/3）或在弹簧的作用下切换回原点位置（4/2）。通过阀口和活塞的优化组合设计，实现了阀门的软换向。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。标准电压和特殊电压范围广。

Application

普通电磁涡旋阀的开关速度非常快。这可能会导致液压系统的切换冲击，从而造成机械磨损以及对运行模式产生负面影响。软开关阀可以减缓和抑制开关动作，保护系统。当所有4个端口都连接起来，并且阀门适当通风时，就能达到最佳效果。微型阀用于体积小、重量轻的场合。

Key facts

电磁阀采用软反转设计

  • 法兰设计

  • 4/3通带弹簧对中位置

  • 4/2通带弹簧回位

  • Qmax = 20 l/min

  • pmax = 350 bar。

WWMFB04-ACB-G12/VD-___12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegrated
WWMFB04-ACB-G12/VD-_HF1_12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-button
WWMFB04-ACB-G12/VD-_HS1_12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRSpindle
WWMFB04-ACB-G12/VD-D1__12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Integrated
WWMFB04-ACB-G12/VD-D1HF1_12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Push-button
WWMFB04-ACB-G12/VD-D1HS1_12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Spindle
WWMFB04-ACB-G12/VJ-___12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerNBRIntegrated
WWMFB04-ACB-G12/VJ-_HF1_12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerNBRPush-button
WWMFB04-ACB-G12/VJ-_HS1_12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerNBRSpindle
WWMFB04-ACB-G12/VJ-D1__12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Integrated
WWMFB04-ACB-G12/VJ-D1HF1_12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Push-button
WWMFB04-ACB-G12/VJ-D1HS1_12 VDCMetal housing round with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Spindle
WWMFB04-ACB-G12/VG-___12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PNBRIntegrated
WWMFB04-ACB-G12/VG-_HF1_12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PNBRPush-button
WWMFB04-ACB-G12/VG-_HS1_12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PNBRSpindle
WWMFB04-ACB-G12/VG-D1__12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Integrated
WWMFB04-ACB-G12/VG-D1HF1_12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Push-button
WWMFB04-ACB-G12/VG-D1HS1_12 VDCMetal housing round with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Spindle
WWMFB04-ACB-G12/ND-___12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegrated
WWMFB04-ACB-G12/ND-_HF1_12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-button
