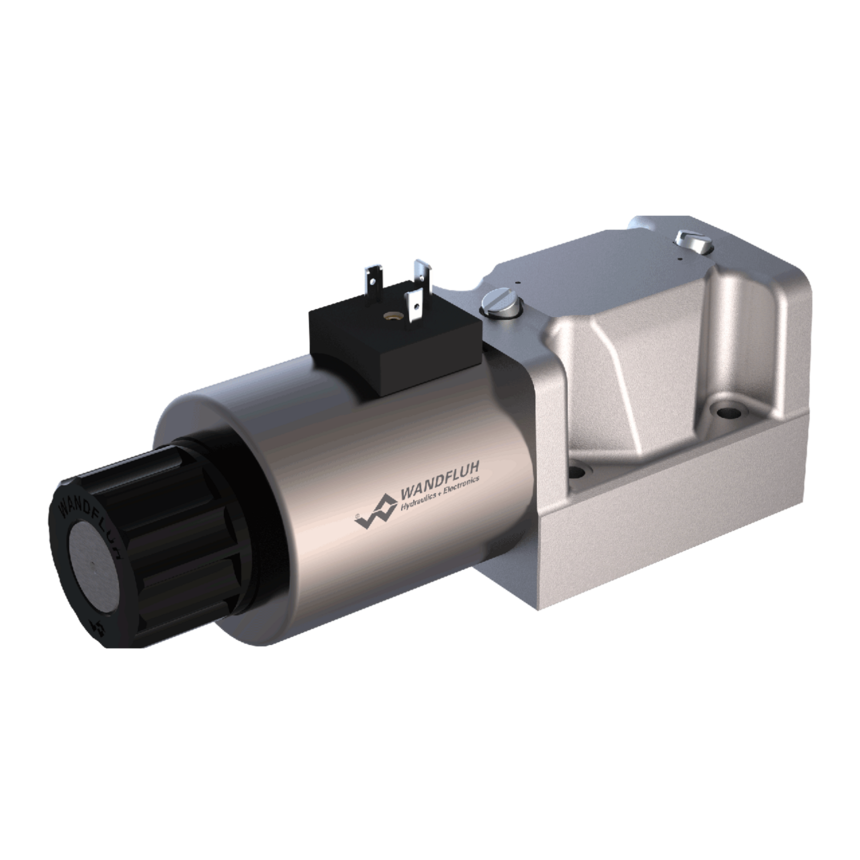

WWMFA10
电磁阀式滑阀 软控制
Description
直动式电磁操作活塞阀有4个端口，为5腔系统。当电磁铁断电时，活塞被保持在中间位置（4/3）或在弹簧的作用下切换回原点位置（4/2）。通过阀口和活塞的优化组合设计，实现了阀门的软换向。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。标准电压和特殊电压范围广。
Application
普通电磁涡旋阀的开关速度非常快。这可能会导致液压系统的切换冲击，从而造成机械磨损以及对运行模式产生负面影响。软开关阀可以减缓和抑制开关动作，保护系统。当4个连接点都连接好，且阀门正确排气时，就能达到最佳效果。
Key facts
电磁阀采用软反转设计
法兰设计
4/3通带弹簧对中位置
4/2通带弹簧回位
Qmax = 120 l/min
pmax = 350 bar。
| WWMFA 10-G12/WD-__Q0,3 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Integrated | Ø 0,3 mm |
| WWMFA 10-G12/WD-___ | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Integrated | Ø 0,5 mm (Standard) |
| WWMFA 10-G12/WD-__Q0,8 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Integrated | Ø 0,8 mm |
| WWMFA 10-G12/WD-__S | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Integrated | Spindle (adjustable soft switching) |
| WWMFA 10-G12/WD-_HF1Q0,3 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Push-button | Ø 0,3 mm |
| WWMFA 10-G12/WD-_HF1_ | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Push-button | Ø 0,5 mm (Standard) |
| WWMFA 10-G12/WD-_HF1Q0,8 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Push-button | Ø 0,8 mm |
| WWMFA 10-G12/WD-_HF1S | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Push-button | Spindle (adjustable soft switching) |
| WWMFA 10-G12/WD-_HS1Q0,3 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Spindle | Ø 0,3 mm |
| WWMFA 10-G12/WD-_HS1_ | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Spindle | Ø 0,5 mm (Standard) |
| WWMFA 10-G12/WD-_HS1Q0,8 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Spindle | Ø 0,8 mm |
| WWMFA 10-G12/WD-_HS1S | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Spindle | Spindle (adjustable soft switching) |
| WWMFA 10-G12/WD-D1_Q0,3 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Integrated | Ø 0,3 mm |
| WWMFA 10-G12/WD-D1__ | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Integrated | Ø 0,5 mm (Standard) |
| WWMFA 10-G12/WD-D1_Q0,8 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Integrated | Ø 0,8 mm |
| WWMFA 10-G12/WD-D1_S | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Integrated | Spindle (adjustable soft switching) |
| WWMFA 10-G12/WD-D1HF1Q0,3 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Push-button | Ø 0,3 mm |
| WWMFA 10-G12/WD-D1HF1_ | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Push-button | Ø 0,5 mm (Standard) |
| WWMFA 10-G12/WD-D1HF1Q0,8 | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Push-button | Ø 0,8 mm |
| WWMFA 10-G12/WD-D1HF1S | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Push-button | Spindle (adjustable soft switching) |
