首页 >> 产品介绍 >>Wandfluh 一 万福乐 >> AH4_ 手动式滑阀 # WANDFLUH // 万福乐
详细内容

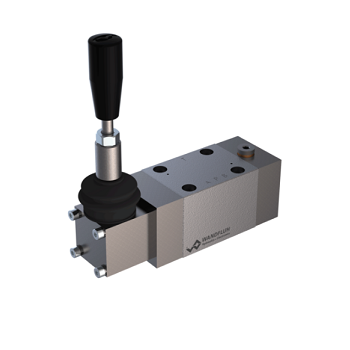

AH4_ 手动式滑阀 # WANDFLUH // 万福乐


AH4_10

手动式滑阀

Description

直动式手动操作活塞阀，在5腔系统中带有4个端口。活塞缩进或带弹簧回复。在没有启动的情况下，活塞被弹簧固定在中间位置(4/3)或切换回原点位置(4/2)。用制动装置，活塞被保持在最后选定的开关位置。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。

Application

阀芯阀主要是用来控制运动方向和夹持液压缸和马达。运动方向由阀门活塞的位置及其符号决定。手动或机械操作的阀门特别适用于没有电源的装置或潜在的爆炸性环境中的应用。

Key facts

闸阀

  • 法兰式设计

  • 手动操作

  • 4/3通带弹簧对中位置

  • 4/2通带弹簧回位

  • 4/2-和4/3-偏心

  • Qmax = 100 l/min

  • pmax = 350 bar

AH4D101a / D101b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D101a / D101b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D101a / D101b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D101a / D101b…a/r-_Actuation A sidedententedNBR
AH4D101a / D101b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D101a / D101b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D101a / D101b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D101a / D101b…b/r-_Actuation B sidedententedNBR
AH4D102a / D102b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D102a / D102b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D102a / D102b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D102a / D102b…a/r-_Actuation A sidedententedNBR
AH4D102a / D102b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D102a / D102b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D102a / D102b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D102a / D102b…b/r-_Actuation B sidedententedNBR
AH4D103a / D103b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D103a / D103b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D103a / D103b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D103a / D103b…a/r-_Actuation A sidedententedNBR
AH4D103a / D103b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D103a / D103b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D103a / D103b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D103a / D103b…b/r-_Actuation B sidedententedNBR
AH4D104a / D104b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D104a / D104b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D104a / D104b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D104a / D104b…a/r-_Actuation A sidedententedNBR
AH4D104a / D104b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D104a / D104b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D104a / D104b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D104a / D104b…b/r-_Actuation B sidedententedNBR
AH4D105a / D105b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D105a / D105b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D105a / D105b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D105a / D105b…a/r-_Actuation A sidedententedNBR
AH4D105a / D105b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D105a / D105b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D105a / D105b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D105a / D105b…b/r-_Actuation B sidedententedNBR
AH4Z100a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z100a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z100a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z100a…a/r-_Actuation A sidedententedNBR
AH4Z100a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z100a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z100a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z100a…b/r-_Actuation B sidedententedNBR
AH4Z100b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z100b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z100b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z100b…a/r-_Actuation A sidedententedNBR
AH4Z100b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z100b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z100b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z100b…b/r-_Actuation B sidedententedNBR
AH4Z101a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z101a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z101a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z101a…a/r-_Actuation A sidedententedNBR
AH4Z101a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z101a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z101a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z101a…b/r-_Actuation B sidedententedNBR
AH4Z101b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z101b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z101b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z101b…a/r-_Actuation A sidedententedNBR
AH4Z101b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z101b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z101b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z101b…b/r-_Actuation B sidedententedNBR
AH4Z102a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z102a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z102a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z102a…a/r-_Actuation A sidedententedNBR
AH4Z102a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z102a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z102a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z102a…b/r-_Actuation B sidedententedNBR
AH4Z102b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z102b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z102b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z102b…a/r-_Actuation A sidedententedNBR
AH4Z102b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z102b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z102b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z102b…b/r-_Actuation B sidedententedNBR
AH4Z103a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z103a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z103a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z103a…a/r-_Actuation A sidedententedNBR
AH4Z103a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z103a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z103a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z103a…b/r-_Actuation B sidedententedNBR
AH4Z103b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z103b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z103b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z103b…a/r-_Actuation A sidedententedNBR
AH4Z103b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z103b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z103b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z103b…b/r-_Actuation B sidedententedNBR
AH4Z104a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z104a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z104a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z104a…a/r-_Actuation A sidedententedNBR
AH4Z104a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z104a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z104a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z104a…b/r-_Actuation B sidedententedNBR
AH4Z104b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z104b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z104b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z104b…a/r-_Actuation A sidedententedNBR
AH4Z104b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z104b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z104b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z104b…b/r-_Actuation B sidedententedNBR
AH4Z105a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z105a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z105a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z105a…a/r-_Actuation A sidedententedNBR
AH4Z105a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z105a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z105a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z105a…b/r-_Actuation B sidedententedNBR
AH4Z105b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z105b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z105b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z105b…a/r-_Actuation A sidedententedNBR
AH4Z105b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z105b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z105b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z105b…b/r-_Actuation B sidedententedNBR


AH4_6

AH4D61a / D61b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D61a / D61b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D61a / D61b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D61a / D61b…a/r-_Actuation A sidedententedNBR
AH4D61a / D61b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D61a / D61b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D61a / D61b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D61a / D61b…b/r-_Actuation B sidedententedNBR
AH4D62a / D62b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D62a / D62b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D62a / D62b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D62a / D62b…a/r-_Actuation A sidedententedNBR
AH4D62a / D62b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D62a / D62b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D62a / D62b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D62a / D62b…b/r-_Actuation B sidedententedNBR
AH4D63a / D63b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D63a / D63b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D63a / D63b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D63a / D63b…a/r-_Actuation A sidedententedNBR
AH4D63a / D63b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D63a / D63b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D63a / D63b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D63a / D63b…b/r-_Actuation B sidedententedNBR
AH4D64a / D64b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D64a / D64b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D64a / D64b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D64a / D64b…a/r-_Actuation A sidedententedNBR
AH4D64a / D64b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D64a / D64b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D64a / D64b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D64a / D64b…b/r-_Actuation B sidedententedNBR
AH4D65a / D65b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4D65a / D65b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4D65a / D65b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4D65a / D65b…a/r-_Actuation A sidedententedNBR
AH4D65a / D65b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4D65a / D65b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4D65a / D65b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4D65a / D65b…b/r-_Actuation B sidedententedNBR
AH4Z60a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z60a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z60a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z60a…a/r-_Actuation A sidedententedNBR
AH4Z60a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z60a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z60a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z60a…b/r-_Actuation B sidedententedNBR
AH4Z60b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z60b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z60b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z60b…a/r-_Actuation A sidedententedNBR
AH4Z60b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z60b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z60b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z60b…b/r-_Actuation B sidedententedNBR
AH4Z61a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z61a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z61a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z61a…a/r-_Actuation A sidedententedNBR
AH4Z61a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z61a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z61a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z61a…b/r-_Actuation B sidedententedNBR
AH4Z61b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z61b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z61b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z61b…a/r-_Actuation A sidedententedNBR
AH4Z61b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z61b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z61b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z61b…b/r-_Actuation B sidedententedNBR
AH4Z62a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z62a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z62a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z62a…a/r-_Actuation A sidedententedNBR
AH4Z62a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z62a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z62a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z62a…b/r-_Actuation B sidedententedNBR
AH4Z62b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z62b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z62b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z62b…a/r-_Actuation A sidedententedNBR
AH4Z62b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z62b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z62b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z62b…b/r-_Actuation B sidedententedNBR
AH4Z63a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z63a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z63a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z63a…a/r-_Actuation A sidedententedNBR
AH4Z63a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z63a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z63a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z63a…b/r-_Actuation B sidedententedNBR
AH4Z63b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z63b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z63b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z63b…a/r-_Actuation A sidedententedNBR
AH4Z63b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z63b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z63b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z63b…b/r-_Actuation B sidedententedNBR
AH4Z64a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z64a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z64a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z64a…a/r-_Actuation A sidedententedNBR
AH4Z64a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z64a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z64a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z64a…b/r-_Actuation B sidedententedNBR
AH4Z64b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z64b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z64b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z64b…a/r-_Actuation A sidedententedNBR
AH4Z64b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z64b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z64b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z64b…b/r-_Actuation B sidedententedNBR
AH4Z65a…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z65a…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z65a…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z65a…a/r-_Actuation A sidedententedNBR
AH4Z65a…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z65a…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z65a…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z65a…b/r-_Actuation B sidedententedNBR
AH4Z65b…a/f-D1Actuation A sidewith spring reset or spring centredFKM (Viton)
AH4Z65b…a/f-_Actuation A sidewith spring reset or spring centredNBR
AH4Z65b…a/r-D1Actuation A sidedententedFKM (Viton)
AH4Z65b…a/r-_Actuation A sidedententedNBR
AH4Z65b…b/f-D1Actuation B sidewith spring reset or spring centredFKM (Viton)
AH4Z65b…b/f-_Actuation B sidewith spring reset or spring centredNBR
AH4Z65b…b/r-D1Actuation B sidedententedFKM (Viton)
AH4Z65b…b/r-_Actuation B sidedententedNBR
联系方式
更多
本站已支持IPv6
seo seo
