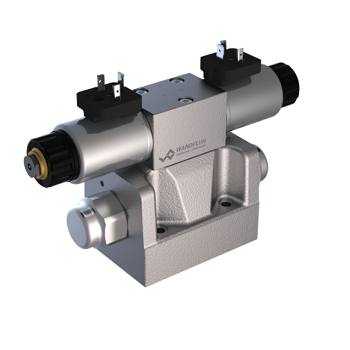

WVMFA10 先导式滑阀 # WANDFLUH // 万福乐


WVMFA10

先导式滑阀

Description

五腔系统中的先导式四通阀。先导阀采用电动控制。设计非常紧凑，相应的重量轻，流量大。根据先导控制类型的不同，先导阀的液压控制可以通过附加的底板或连接图在内部或外部进行。活塞缩进或带弹簧回复。活塞配合精确，泄漏量小，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。

Application

阀芯阀主要是用来控制运动方向和夹持液压缸和马达。先导阀用于需要控制大流量的场合。在系统设计中应考虑阀门的开关能力和可能的泄漏。电磁阀适用于各种机床和搬运系统。

Key facts

闸阀

  • 法兰类型

  • 先导型

  • 4/2通脉冲型闭锁

  • 4/3通带弹簧中位

  • 4/2通带弹簧回位

  • Qmax = 160 l/min

  • pmax = 350 bar

WVMFA 10-AB3-o-ti-G12/ND__-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegratedwithout orifice
WVMFA 10-AB3-o-ti-G12/ND__-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegratedorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/ND_HF1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-buttonwithout orifice
WVMFA 10-AB3-o-ti-G12/ND_HF1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-buttonorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/ND_HS1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRSpindlewithout orifice
WVMFA 10-AB3-o-ti-G12/ND_HS1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRSpindleorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NDD1_-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Integratedwithout orifice
WVMFA 10-AB3-o-ti-G12/NDD1_-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Integratedorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NDD1HF1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Push-buttonwithout orifice
WVMFA 10-AB3-o-ti-G12/NDD1HF1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Push-buttonorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NDD1HS1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Spindlewithout orifice
WVMFA 10-AB3-o-ti-G12/NDD1HS1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Spindleorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NJ__-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRIntegratedwithout orifice
WVMFA 10-AB3-o-ti-G12/NJ__-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRIntegratedorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NJ_HF1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRPush-buttonwithout orifice
WVMFA 10-AB3-o-ti-G12/NJ_HF1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRPush-buttonorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NJ_HS1-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRSpindlewithout orifice
WVMFA 10-AB3-o-ti-G12/NJ_HS1-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRSpindleorifice 0,5 mm
WVMFA 10-AB3-o-ti-G12/NJD1_-_without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Integratedwithout orifice
WVMFA 10-AB3-o-ti-G12/NJD1_-Q 0,5without back pressure cartridgeSupply (x) and drain (y) of the pilot oil internally12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Integratedorifice 0,5 mm
