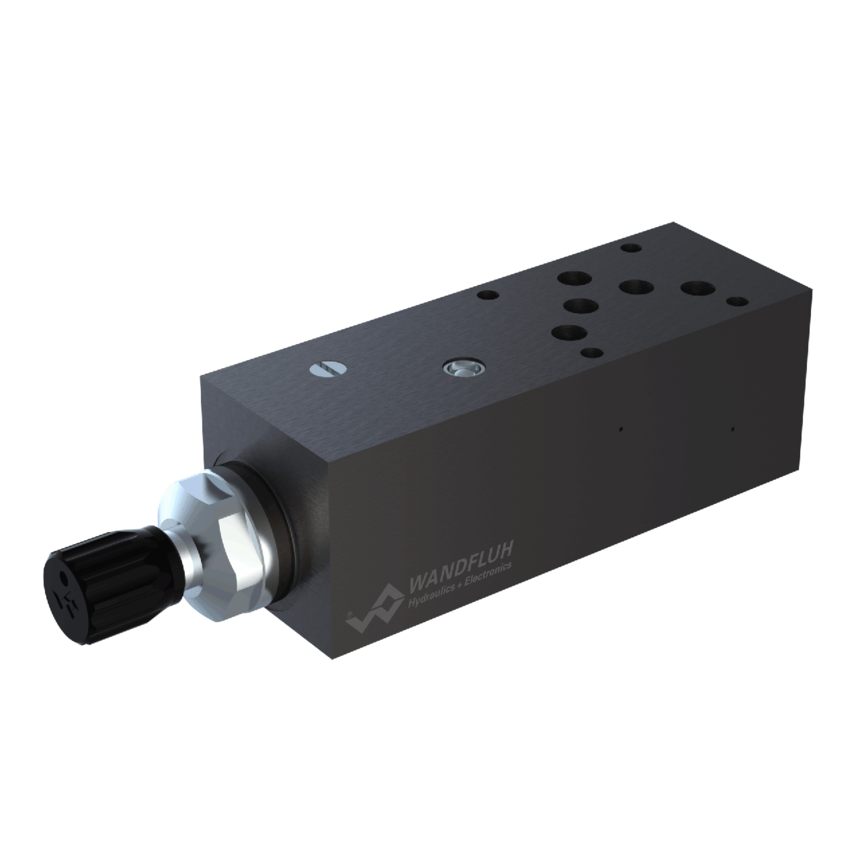

QZ_A10
2通流量控制阀法兰和叠加结构
Description
直接控制负载补偿流量控制阀，采用法兰和夹层设计。安装符合 ISO 7789 标准的 M33x2 螺旋式流量控制阀芯。 对于 A、B 和 AB 型夹层板，可在板上直接安装用于反向自由流动的旁通止回阀。从 B 向 A 自由流动的旁通单向阀板可单独订购，用于法兰型。法兰体为注塑成型，夹层板为磷化处理。
Application
法兰式和夹层式流量控制阀适用于精确的进料控制，在不同的负载条件下，进料流量必须保持恒定。根据应用类型的不同，流量控制阀可分为流量控制阀和回流控制阀。
Key facts
二通流量控制阀
法兰和夹层设计
| QZSFA 10-A/B-32 | Key | Flange construction | Flange construction A/B | 32 l/min |
| QZSFA 10-A/B-70 | Key | Flange construction | Flange construction A/B | 70 l/min |
| QZSFA 10-P-32 | Key | Flange construction | Sandwich construction P | 32 l/min |
| QZSFA 10-P-70 | Key | Flange construction | Sandwich construction P | 70 l/min |
| QZSFA 10-T-32 | Key | Flange construction | Sandwich construction T | 32 l/min |
| QZSFA 10-T-70 | Key | Flange construction | Sandwich construction T | 70 l/min |
| QZSFA 10-A-32 | Key | Flange construction | Sandwich construction Meter-out control A | 32 l/min |
| QZSFA 10-A-70 | Key | Flange construction | Sandwich construction Meter-out control A | 70 l/min |
| QZSFA 10-B-32 | Key | Flange construction | Sandwich construction Meter-out control B | 32 l/min |
| QZSFA 10-B-70 | Key | Flange construction | Sandwich construction Meter-out control B | 70 l/min |
| QZSFA 10-AB-32 | Key | Flange construction | Sandwich construction Meter-out control AB | 32 l/min |
| QZSFA 10-AB-70 | Key | Flange construction | Sandwich construction Meter-out control AB | 70 l/min |
| QZSFA 10-AV-32 | Key | Flange construction | Sandwich construction Meter-in control AV | 32 l/min |
| QZSFA 10-AV-70 | Key | Flange construction | Sandwich construction Meter-in control AV | 70 l/min |
| QZSFA 10-BV-32 | Key | Flange construction | Sandwich construction Meter-in control BV | 32 l/min |
| QZSFA 10-BV-70 | Key | Flange construction | Sandwich construction Meter-in control BV | 70 l/min |
| QZSFA 10-ABV-32 | Key | Flange construction | Sandwich construction Meter-in control ABV | 32 l/min |
| QZSFA 10-ABV-70 | Key | Flange construction | Sandwich construction Meter-in control ABV | 70 l/min |
| QZSSA 10-A/B-32 | Key | Sandwich construction | Flange construction A/B | 32 l/min |
| QZSSA 10-A/B-70 | Key | Sandwich construction | Flange construction A/B | 70 l/min |
