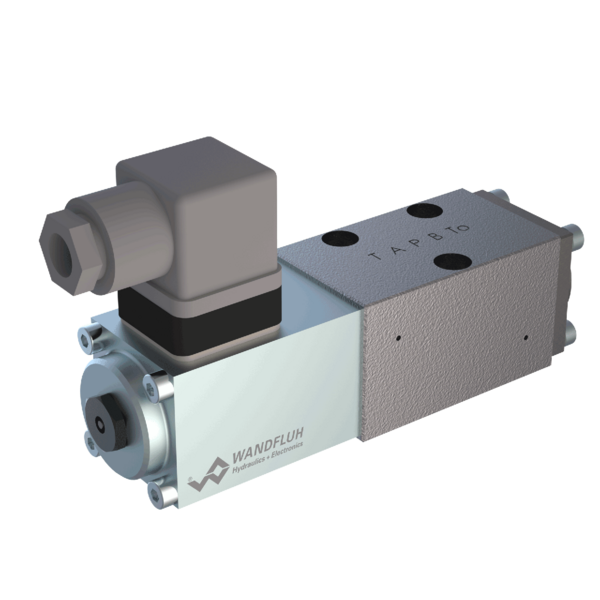

VWS4_10_TF
压力补偿比例换向阀
Description
直接操作，采用Wandfluh比例电磁铁（VDE标准0580）驱动的五腔系统活塞阀。湿电磁铁在油中运行。活塞的控制边缘有精确的铣削或凹槽，使体积流量与电磁铁流量成正比。由于优化的流道，压力损失低。活塞配合精确，使用寿命长。活塞由淬火钢制成，阀体由优质液压铸件制成。法兰设计，通过底板进行螺纹连接。
Application
由于高分辨率和低滞后，这些阀门适用于高要求的任务。应用： 机器人、执行器、遥控车、工具和造纸机，换句话说，凡是需要方便和精确控制的地方，都需要可变负载压力。
Key facts
比例换向阀
负载补偿
Qmax = 60升/分钟
pmax = 250巴。
| VWS4D101-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4D101-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4D101-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4D101-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4D101-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4D101-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4D101-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4D101-60-TF-G24 | 60 l/min | 24 VDC |
| VWS4D102-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4D102-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4D102-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4D102-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4D102-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4D102-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4D102-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4D102-60-TF-G24 | 60 l/min | 24 VDC |
| VWS4Z101a-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4Z101a-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4Z101a-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4Z101a-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4Z101a-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4Z101a-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4Z101a-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4Z101a-60-TF-G24 | 60 l/min | 24 VDC |
| VWS4Z101b-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4Z101b-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4Z101b-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4Z101b-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4Z101b-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4Z101b-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4Z101b-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4Z101b-60-TF-G24 | 60 l/min | 24 VDC |
| VWS4Z102a-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4Z102a-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4Z102a-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4Z102a-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4Z102a-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4Z102a-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4Z102a-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4Z102a-60-TF-G24 | 60 l/min | 24 VDC |
| VWS4Z102b-40-TF-G12 | 40 l/min | 12 VDC |
| VWS4Z102b-40-TF-G24 | 40 l/min | 24 VDC |
| VWS4Z102b-30-TF-G12 | 30 l/min | 12 VDC |
| VWS4Z102b-30-TF-G24 | 30 l/min | 24 VDC |
| VWS4Z102b-50-TF-G12 | 50 l/min | 12 VDC |
| VWS4Z102b-50-TF-G24 | 50 l/min | 24 VDC |
| VWS4Z102b-60-TF-G12 | 60 l/min | 12 VDC |
| VWS4Z102b-60-TF-G24 | 60 l/min | 24 VDC |
