首页 >> 产品介绍 >>Wandfluh 一 万福乐 >> WDPFB04 比例换向阀 # WANDFLUH // 万福乐
详细内容

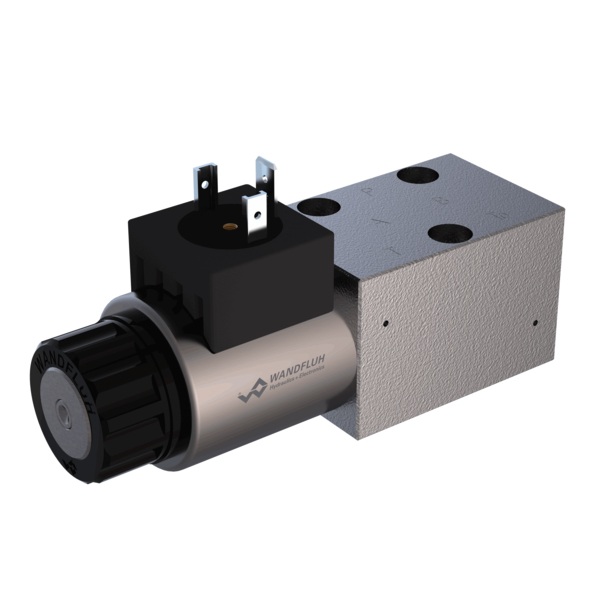

WDPFB04 比例换向阀 # WANDFLUH // 万福乐


WDPFB04

比例换向阀（滑动线圈）

Description

直接控制的比例活塞阀，在5腔系统中带有4个端口。精确的活塞配合，泄漏小，使用寿命长。体积流量由一个Wandfluh比例电磁铁调节。 活塞冲程、活塞开度和阀门体积流量与电磁铁电流成比例增加。Wandfluh比例放大器可用于控制（见寄存器1.13）。

Application

由于高分辨率、大体积流量和低滞后，比例阀芯非常适用于高要求的任务。应用于工业以及移动液压系统中，用于液压驱动的软性和控制操作。一些例子。在简单的位置控制、机器人和风扇控制中调整风力发电机、林业和运土机械、机床和造纸机械的转子叶片。微型阀用于对尺寸和重量要求较低的地方。

Key facts

比例阀芯阀
法兰盘设计

  • Qmax = 20 l/min

  • 3个体积流量阶段 最大

  • QN max =12 l/min

  • pmax = 350 bar

WDPFB04-ACB - S-4-G12/ND-__4 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegrated
WDPFB04-ACB - S-4-G12/ND-_HF14 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-button
WDPFB04-ACB - S-4-G12/ND-_HS14 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRSpindle
WDPFB04-ACB - S-4-G12/ND-D1_4 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Integrated
WDPFB04-ACB - S-4-G12/ND-D1HF14 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Push-button
WDPFB04-ACB - S-4-G12/ND-D1HS14 l/min12 VDCMetal housing square with one-sided collarConnector socket EN 175301-803 / ISO 4400FKM (Viton)Spindle
WDPFB04-ACB - S-4-G12/NJ-__4 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRIntegrated
WDPFB04-ACB - S-4-G12/NJ-_HF14 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRPush-button
WDPFB04-ACB - S-4-G12/NJ-_HS14 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerNBRSpindle
WDPFB04-ACB - S-4-G12/NJ-D1_4 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Integrated
WDPFB04-ACB - S-4-G12/NJ-D1HF14 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Push-button
WDPFB04-ACB - S-4-G12/NJ-D1HS14 l/min12 VDCMetal housing square with one-sided collarConnector socket AMP Junior-TimerFKM (Viton)Spindle
WDPFB04-ACB - S-4-G12/NG-__4 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PNBRIntegrated
WDPFB04-ACB - S-4-G12/NG-_HF14 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PNBRPush-button
WDPFB04-ACB - S-4-G12/NG-_HS14 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PNBRSpindle
WDPFB04-ACB - S-4-G12/NG-D1_4 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Integrated
WDPFB04-ACB - S-4-G12/NG-D1HF14 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Push-button
WDPFB04-ACB - S-4-G12/NG-D1HS14 l/min12 VDCMetal housing square with one-sided collarConnector Deutsch DT04-2PFKM (Viton)Spindle
WDPFB04-ACB - S-4-G12/VD-__4 l/min12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRIntegrated
WDPFB04-ACB - S-4-G12/VD-_HF14 l/min12 VDCMetal housing round with one-sided collarConnector socket EN 175301-803 / ISO 4400NBRPush-button
