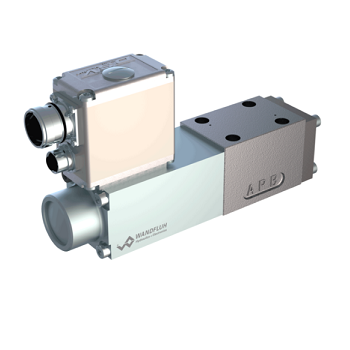

WDRFA06_ACB1_24 比例换向阀 # WANDFLUH // 万福乐


WDRFA06_ACB1_24

比例换向阀（集成电子元件和LVDT）

Description

直接操作的比例方向控制阀，集成了电子放大器和活塞位置控制，法兰设计NG6，符合ISO 4401-03/7790标准，有4个接口。该阀门有一个集成的阀门活塞的位置控制。这确保了最小的滞后性和改进的动态特性。由于电子元件的保护等级为IP67，这些阀门适用于恶劣的环境条件。活塞阀是根据5腔原理设计的。体积流量由Wandfluh比例螺线管（VDE标准0580）调节。由于优化的体积流道和精确的活塞配合，压力损失低。活塞是由硬化钢制成的。阀体由高质量的液压铸铁制成，并喷有双组份油漆。螺线管是镀锌的，电子外壳是铝制的。

Application

由于其高分辨率、大体积流量、最小的滞后和非常好的动态特性，带有集成电子装置的比例方向控制阀非常适合于高要求的任务。它们被用在低系列的地方 它们被用于对低系列分散、简单安装、方便操作和最大精度非常重要的地方。集成的控制器解除了机器的控制，在一个闭合的控制回路中操作轴（位置、角度、压力等）。应用于工业和移动液压系统中，用于液压驱动的软性和控制操作。一些例子。在位置控制、机器人和风扇控制中，调整风力发电机、林业和运土机械、机床和造纸机械的转子叶片。

Key facts

比例方向控制阀

  • 集成的放大器或控制器电子装置

  • 带LVDT的集成活塞位置控制

  • 直接操作，无负载补偿

  • Qmax = 27 l/min

  • QN max =20 l/min

  • pmax = 350 bar

WDRFA06-ACB1 - R-10-24-A2_10 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Amplifier
WDRFA06-ACB1 - R-10-24-A2R110 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-10-24-A2R210 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - R-10-24-C1_10 l/min ACB1-S onlyWith CANopen according to DSP-408Amplifier
WDRFA06-ACB1 - R-10-24-C1R110 l/min ACB1-S onlyWith CANopen according to DSP-408Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-10-24-C1R210 l/min ACB1-S onlyWith CANopen according to DSP-408Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - R-10-24-P1_10 l/min ACB1-S onlyWith CAN J1939 (on request)Amplifier
WDRFA06-ACB1 - R-10-24-P1R110 l/min ACB1-S onlyWith CAN J1939 (on request)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-10-24-P1R210 l/min ACB1-S onlyWith CAN J1939 (on request)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - R-20-24-A2_20 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Amplifier
WDRFA06-ACB1 - R-20-24-A2R120 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-20-24-A2R220 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - R-20-24-C1_20 l/min ACB1-R onlyWith CANopen according to DSP-408Amplifier
WDRFA06-ACB1 - R-20-24-C1R120 l/min ACB1-R onlyWith CANopen according to DSP-408Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-20-24-C1R220 l/min ACB1-R onlyWith CANopen according to DSP-408Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - R-20-24-P1_20 l/min ACB1-R onlyWith CAN J1939 (on request)Amplifier
WDRFA06-ACB1 - R-20-24-P1R120 l/min ACB1-R onlyWith CAN J1939 (on request)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - R-20-24-P1R220 l/min ACB1-R onlyWith CAN J1939 (on request)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-10-24-A2_10 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Amplifier
WDRFA06-ACB1 - S-10-24-A2R110 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-10-24-A2R210 l/min ACB1-S onlyWith analog command value signal (-10…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-10-24-C1_10 l/min ACB1-S onlyWith CANopen according to DSP-408Amplifier
WDRFA06-ACB1 - S-10-24-C1R110 l/min ACB1-S onlyWith CANopen according to DSP-408Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-10-24-C1R210 l/min ACB1-S onlyWith CANopen according to DSP-408Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-10-24-P1_10 l/min ACB1-S onlyWith CAN J1939 (on request)Amplifier
WDRFA06-ACB1 - S-10-24-P1R110 l/min ACB1-S onlyWith CAN J1939 (on request)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-10-24-P1R210 l/min ACB1-S onlyWith CAN J1939 (on request)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-20-24-A2_20 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Amplifier
WDRFA06-ACB1 - S-20-24-A2R120 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-20-24-A2R220 l/min ACB1-R onlyWith analog command value signal (-10…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-20-24-C1_20 l/min ACB1-R onlyWith CANopen according to DSP-408Amplifier
WDRFA06-ACB1 - S-20-24-C1R120 l/min ACB1-R onlyWith CANopen according to DSP-408Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-20-24-C1R220 l/min ACB1-R onlyWith CANopen according to DSP-408Controller with voltage feedback value signal (0…10 V)
WDRFA06-ACB1 - S-20-24-P1_20 l/min ACB1-R onlyWith CAN J1939 (on request)Amplifier
WDRFA06-ACB1 - S-20-24-P1R120 l/min ACB1-R onlyWith CAN J1939 (on request)Controller with current feedback value signal (0…20 mA / 4…20 mA)
WDRFA06-ACB1 - S-20-24-P1R220 l/min ACB1-R onlyWith CAN J1939 (on request)Controller with voltage feedback value signal (0…10 V)
