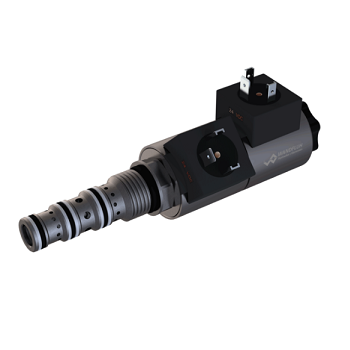

WDPPU10_18 比例换向阀插装阀 # WANDFLUH // 万福乐

WDPPU10_18

比例换向阀插装阀

Description

旋入式阀芯结构的直动式比例阀结构。精确的阀芯配合，低泄漏，使用寿命长。体积流量的调节是由Wandfluh的比例电磁铁来完成的。螺线管。该阀根据拉-推原理工作。通过电磁铁的控制，可以选择P到A或P到B的体积流量方向。或P到B，都可以选择。由于采用了最佳的阀芯形式，可以实现灵敏的运动过程。由于采用了最佳的阀芯形式，可以实现合理的运动过程。对于控制，Wandfluh 比例放大器可供选择（见寄存器1.13）。

Application

比例阀芯完全适用于高要求的任务。比例阀由于具有高分辨率、大流量和低滞后性，完全适用于高要求的任务。滞后性。在工业和移动设备中的应用是非常广泛的。液压系统中，对液压执行器进行平稳控制。一些例子例子：控制风力发电机的转子叶片、林业和运土机械、机床和其他设备。和推土机、机床和造纸机、简单的位置控制、机器人等。机器，简单的位置控制，机器人和风扇控制。

Key facts

比例式阀芯
螺旋式插装结构

直接操作
Qmax = 28 l/min
QN最大=18升/分钟
pmax = 350 bar

WDPPU10-ACB - S-18-G12/WD-_	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-G12/WD-D1	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-G12/WJ-_	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-G12/WJ-D1	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-G12/WG-_	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-G12/WG-D1	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ACB - S-18-G12/MD-_	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-G12/MD-D1	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-G12/MJ-_	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-G12/MJ-D1	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-G12/MG-_	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-G12/MG-D1	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ACB - S-18-X5/WD-_	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-X5/WD-D1	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-X5/WJ-_	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-X5/WJ-D1	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-X5/WG-_	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-X5/WG-D1	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ACB - S-18-X5/MD-_	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-X5/MD-D1	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-X5/MJ-_	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-X5/MJ-D1	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-X5/MG-_	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-X5/MG-D1	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ACB - S-18-G24/WD-_	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-G24/WD-D1	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-G24/WJ-_	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-G24/WJ-D1	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-G24/WG-_	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-G24/WG-D1	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ACB - S-18-G24/MD-_	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ACB - S-18-G24/MD-D1	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ACB - S-18-G24/MJ-_	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ACB - S-18-G24/MJ-D1	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ACB - S-18-G24/MG-_	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ACB - S-18-G24/MG-D1	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-G12/WD-_	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-G12/WD-D1	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-G12/WJ-_	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-G12/WJ-D1	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-G12/WG-_	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-G12/WG-D1	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-G12/MD-_	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-G12/MD-D1	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-G12/MJ-_	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-G12/MJ-D1	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-G12/MG-_	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-G12/MG-D1	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-X5/WD-_	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-X5/WD-D1	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-X5/WJ-_	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-X5/WJ-D1	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-X5/WG-_	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-X5/WG-D1	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-X5/MD-_	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-X5/MD-D1	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-X5/MJ-_	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-X5/MJ-D1	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-X5/MG-_	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-X5/MG-D1	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-G24/WD-_	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-G24/WD-D1	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-G24/WJ-_	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-G24/WJ-D1	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-G24/WG-_	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-G24/WG-D1	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)
WDPPU10-ADB - V-18-G24/MD-_	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR
WDPPU10-ADB - V-18-G24/MD-D1	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
WDPPU10-ADB - V-18-G24/MJ-_	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR
WDPPU10-ADB - V-18-G24/MJ-D1	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)
WDPPU10-ADB - V-18-G24/MG-_	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR
WDPPU10-ADB - V-18-G24/MG-D1	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)
