WVPFA10_90_Z 先导式比例方向阀 # WANDFLUH // 万福乐

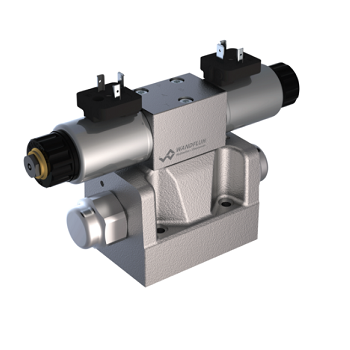

WVPFA10_90_Z

先导式比例方向阀

Description

先导式比例活塞阀，5腔系统有4个端口。精确的活塞配合，泄漏小，使用寿命长。设计非常紧凑，重量也相应较轻。先导阀是一个比例电磁操作的压力调节阀。先导阀和主阀的功能以及两个阀的相互作用可以在液压图中看到。活塞行程、活塞开度和阀的体积流量与电磁铁电流成比例增加。比例阀的阀芯是没有负载补偿的。Wandfluh比例放大器可用于控制（见寄存器1.13）。

Application

由于比例阀的分辨率高，体积流量大，滞后小，所以比例阀非常适用于高要求的任务。先导阀用于需要控制大体积流量的场合。由于大流量范围和先导控制引起的高刚性驱动，这些阀门适用于所有需要强大的加速和制动过程，高速和敏感运动序列的应用。应用在工业和移动液压系统中，用于液压驱动的平稳和控制的驱动。

Key facts

比例阀芯阀
法兰式设计

  • 先导式操作

  • Qmax = 200 l/min

  • QN max = 90 l/min

  • pmax = 350 bar

WVPFA 10-BCA-S-90-ti-G12/WD_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
WVPFA 10-BCA-S-90-ti-G12/WDD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
WVPFA 10-BCA-S-90-ti-G12/WJ_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
WVPFA 10-BCA-S-90-ti-G12/WJD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
WVPFA 10-BCA-S-90-ti-G12/WG_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
WVPFA 10-BCA-S-90-ti-G12/WGD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
WVPFA 10-BCA-S-90-ti-G12/MD_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
WVPFA 10-BCA-S-90-ti-G12/MDD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
WVPFA 10-BCA-S-90-ti-G12/MJ_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
WVPFA 10-BCA-S-90-ti-G12/MJD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
WVPFA 10-BCA-S-90-ti-G12/MG_Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
WVPFA 10-BCA-S-90-ti-G12/MGD1Pilot oil supply (x) and drain (y) internally12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
WVPFA 10-BCA-S-90-ti-G24/WD_Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
WVPFA 10-BCA-S-90-ti-G24/WDD1Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
WVPFA 10-BCA-S-90-ti-G24/WJ_Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
WVPFA 10-BCA-S-90-ti-G24/WJD1Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
WVPFA 10-BCA-S-90-ti-G24/WG_Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
WVPFA 10-BCA-S-90-ti-G24/WGD1Pilot oil supply (x) and drain (y) internally24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
WVPFA 10-BCA-S-90-ti-G24/MD_Pilot oil supply (x) and drain (y) internally24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
WVPFA 10-BCA-S-90-ti-G24/MDD1Pilot oil supply (x) and drain (y) internally24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
