BVIPM22 反向先导式比例减压插装阀 # WANDFLUH // 万福乐

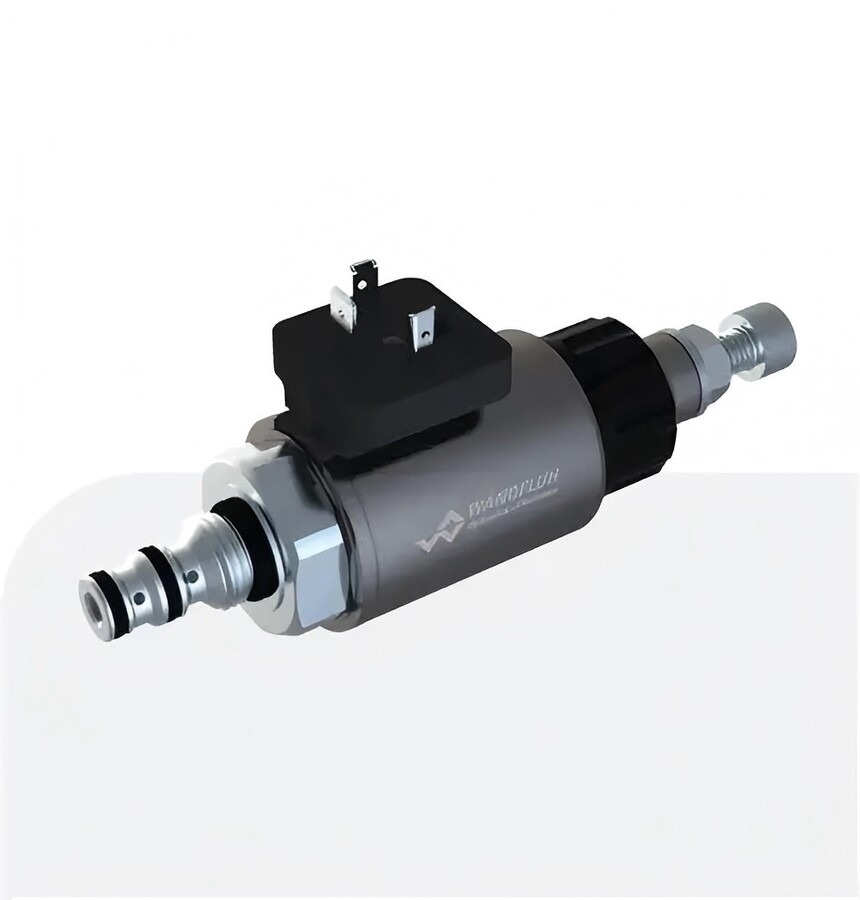

OIP-C.jpgBVIPM22

反向先导式比例减压插装阀

Description

先导式比例卸压阀具有反向功能，采用螺纹插装式设计，符合 ISO 7789 标准。 流量大，调节灵敏。当达到比例电磁阀设定的工作压力时，阀门打开并将保护管路连接至油箱的回油管路。电磁阀断电时可获得最大工作压力。如果电磁阀电流增加，端口 P (1) 中的压力就会降低。T (2) 口的背压影响 P (1) 口的压力。可使用 Wandfluh 比例放大器进行控制（参见寄存器 1.13）。

Application

阀门的远程电气控制功能与过程控制相结合，实现了可重复过程的经济解决方案。如果电动阀门控制失灵，反向功能可保持最大系统压力（安全功能）。螺纹插装阀非常适合安装在控制块中，并可安装在夹层（垂直连接）和法兰板中（本登记册中的相应数据表）。可提供用于在钢块和铝块上制造滤芯安装孔的阶梯工具（租用或购买）。请参见表 2.13 中的数据表。

Key facts

反向比例卸压阀

  • 先导式

  • Qmax = 100 升/分钟

  • pmax = 400 巴

  • pNmax = 350 巴

BVIPM22-20-G12/WD-_20 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-G12/WD-D120 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-20-G12/WJ-_20 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-20-G12/WJ-D120 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-G12/WG-_20 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-20-G12/WG-D120 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-20-G12/MD-_20 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-G12/MD-D120 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-20-G12/MJ-_20 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-20-G12/MJ-D120 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-G12/MG-_20 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-20-G12/MG-D120 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-20-G24/WD-_20 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-G24/WD-D120 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-20-G24/WJ-_20 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-20-G24/WJ-D120 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-G24/WG-_20 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-20-G24/WG-D120 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-20-G24/MD-_20 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-G24/MD-D120 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)

BVIPM22-20-G24/MJ-_

20 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-20-G24/MJ-D120 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-G24/MG-_20 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-20-G24/MG-D120 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-20-X5/WD-_20 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-X5/WD-D120 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-20-X5/WJ-_20 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-20-X5/WJ-D120 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-X5/WG-_20 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-20-X5/WG-D120 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-20-X5/MD-_20 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-20-X5/MD-D120 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-20-X5/MJ-_20 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-20-X5/MJ-D120 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-20-X5/MG-_20 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-20-X5/MG-D120 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-G12/WD-_63 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-G12/WD-D163 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-G12/WJ-_63 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-63-G12/WJ-D163 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-G12/WG-_63 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-63-G12/WG-D163 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-G12/MD-_63 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-G12/MD-D163 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-G12/MJ-_63 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-63-G12/MJ-D163 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-G12/MG-_63 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-63-G12/MG-D163 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-G24/WD-_63 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-G24/WD-D163 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-G24/WJ-_63 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-63-G24/WJ-D163 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-G24/WG-_63 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-63-G24/WG-D163 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-G24/MD-_63 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-G24/MD-D163 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-G24/MJ-_63 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-63-G24/MJ-D163 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-G24/MG-_63 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-63-G24/MG-D163 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-X5/WD-_63 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-X5/WD-D163 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-X5/WJ-_63 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-63-X5/WJ-D163 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-X5/WG-_63 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-63-X5/WG-D163 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-63-X5/MD-_63 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-63-X5/MD-D163 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-63-X5/MJ-_63 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-63-X5/MJ-D163 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-63-X5/MG-_63 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-63-X5/MG-D163 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-G12/WD-_100 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-G12/WD-D1100 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-G12/WJ-_100 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-100-G12/WJ-D1100 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-G12/WG-_100 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-100-G12/WG-D1100 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-G12/MD-_100 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-G12/MD-D1100 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-G12/MJ-_100 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-100-G12/MJ-D1100 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-G12/MG-_100 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-100-G12/MG-D1100 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-G24/WD-_100 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-G24/WD-D1100 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-G24/WJ-_100 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-100-G24/WJ-D1100 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-G24/WG-_100 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-100-G24/WG-D1100 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-G24/MD-_100 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-G24/MD-D1100 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-G24/MJ-_100 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-100-G24/MJ-D1100 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-G24/MG-_100 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-100-G24/MG-D1100 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-X5/WD-_100 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-X5/WD-D1100 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-X5/WJ-_100 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-100-X5/WJ-D1100 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-X5/WG-_100 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-100-X5/WG-D1100 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-100-X5/MD-_100 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-100-X5/MD-D1100 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-100-X5/MJ-_100 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-100-X5/MJ-D1100 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-100-X5/MG-_100 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-100-X5/MG-D1100 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-G12/WD-_160 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-G12/WD-D1160 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-G12/WJ-_160 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-160-G12/WJ-D1160 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-G12/WG-_160 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-160-G12/WG-D1160 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-G12/MD-_160 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-G12/MD-D1160 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-G12/MJ-_160 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-160-G12/MJ-D1160 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-G12/MG-_160 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-160-G12/MG-D1160 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-G24/WD-_160 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-G24/WD-D1160 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-G24/WJ-_160 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-160-G24/WJ-D1160 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-G24/WG-_160 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-160-G24/WG-D1160 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-G24/MD-_160 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-G24/MD-D1160 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-G24/MJ-_160 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-160-G24/MJ-D1160 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-G24/MG-_160 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-160-G24/MG-D1160 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-X5/WD-_160 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-X5/WD-D1160 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-X5/WJ-_160 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-160-X5/WJ-D1160 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-X5/WG-_160 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-160-X5/WG-D1160 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-160-X5/MD-_160 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-160-X5/MD-D1160 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-160-X5/MJ-_160 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-160-X5/MJ-D1160 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-160-X5/MG-_160 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-160-X5/MG-D1160 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-G12/WD-_200 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-G12/WD-D1200 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-G12/WJ-_200 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-200-G12/WJ-D1200 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-G12/WG-_200 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-200-G12/WG-D1200 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-G12/MD-_200 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-G12/MD-D1200 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-G12/MJ-_200 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-200-G12/MJ-D1200 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-G12/MG-_200 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-200-G12/MG-D1200 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-G24/WD-_200 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-G24/WD-D1200 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-G24/WJ-_200 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-200-G24/WJ-D1200 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-G24/WG-_200 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-200-G24/WG-D1200 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-G24/MD-_200 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-G24/MD-D1200 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-G24/MJ-_200 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-200-G24/MJ-D1200 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-G24/MG-_200 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-200-G24/MG-D1200 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-X5/WD-_200 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-X5/WD-D1200 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-X5/WJ-_200 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-200-X5/WJ-D1200 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-X5/WG-_200 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-200-X5/WG-D1200 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-200-X5/MD-_200 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-200-X5/MD-D1200 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-200-X5/MJ-_200 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-200-X5/MJ-D1200 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-200-X5/MG-_200 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-200-X5/MG-D1200 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-G12/WD-_275 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-G12/WD-D1275 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-G12/WJ-_275 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-275-G12/WJ-D1275 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-G12/WG-_275 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-275-G12/WG-D1275 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-G12/MD-_275 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-G12/MD-D1275 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-G12/MJ-_275 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-275-G12/MJ-D1275 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-G12/MG-_275 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-275-G12/MG-D1275 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-G24/WD-_275 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-G24/WD-D1275 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-G24/WJ-_275 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-275-G24/WJ-D1275 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-G24/WG-_275 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-275-G24/WG-D1275 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-G24/MD-_275 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-G24/MD-D1275 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-G24/MJ-_275 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-275-G24/MJ-D1275 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-G24/MG-_275 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-275-G24/MG-D1275 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-X5/WD-_275 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-X5/WD-D1275 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-X5/WJ-_275 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-275-X5/WJ-D1275 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-X5/WG-_275 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-275-X5/WG-D1275 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-275-X5/MD-_275 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-275-X5/MD-D1275 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-275-X5/MJ-_275 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-275-X5/MJ-D1275 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-275-X5/MG-_275 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-275-X5/MG-D1275 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-G12/WD-_350 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-G12/WD-D1350 bar12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-G12/WJ-_350 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-350-G12/WJ-D1350 bar12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-G12/WG-_350 bar12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-350-G12/WG-D1350 bar12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-G12/MD-_350 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-G12/MD-D1350 bar12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-G12/MJ-_350 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-350-G12/MJ-D1350 bar12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-G12/MG-_350 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-350-G12/MG-D1350 bar12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-G24/WD-_350 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-G24/WD-D1350 bar24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-G24/WJ-_350 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-350-G24/WJ-D1350 bar24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-G24/WG-_350 bar24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-350-G24/WG-D1350 bar24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-G24/MD-_350 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-G24/MD-D1350 bar24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-G24/MJ-_350 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-350-G24/MJ-D1350 bar24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-G24/MG-_350 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-350-G24/MG-D1350 bar24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-X5/WD-_350 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-X5/WD-D1350 barwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-X5/WJ-_350 barwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
BVIPM22-350-X5/WJ-D1350 barwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-X5/WG-_350 barwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
BVIPM22-350-X5/WG-D1350 barwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
BVIPM22-350-X5/MD-_350 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
BVIPM22-350-X5/MD-D1350 barwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
BVIPM22-350-X5/MJ-_350 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
BVIPM22-350-X5/MJ-D1350 barwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
BVIPM22-350-X5/MG-_350 barwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
BVIPM22-350-X5/MG-D1350 barwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
联系方式
更多
本站已支持IPv6
seo seo
