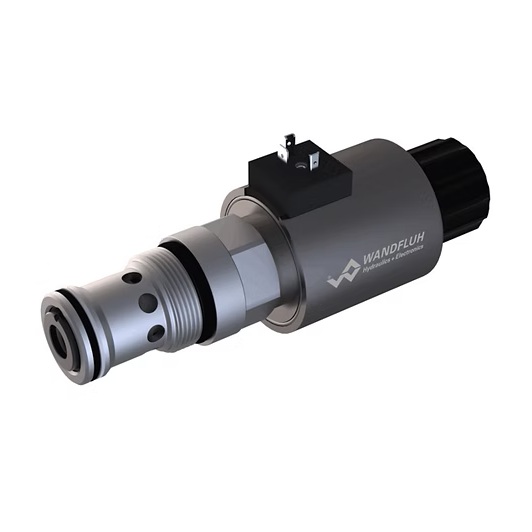

BNIPM22 反向先导式比例减压插装阀 # WANDFLUH // 万福乐


BNIPM22

反向先导式比例减压插装阀

Description

先导式比例卸压阀，带反向功能。标准配置为 4 级压力。通过 Wandfluh 比例电磁阀（VDE 标准 0580）进行调节。钢制筒体经过镀锌处理，因此具有防锈功能。电磁线圈由塑料制成。

Application

该阀适用于需要频繁改变压力的液压系统。该阀的电气远程控制功能与过程控制相结合，可以经济地解决可重复序列问题。在控制块中安装螺纹插装阀。可提供钢制和铝制阶梯工具（租用或购买），用于制造插装孔。请参阅文件 2.13 中的数据表。

Key facts

反向比例泄压阀
螺纹插装式设计

先导式操作
额定压力可调 +20 % / -30
Qmax = 100 升/分钟
pmax = 400 巴
pNmax = 200 巴

BNIPM22-63-G12/KD-_	63 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-63-G12/KD-D1	63 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-63-G12/KJ-_	63 bar	12 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-63-G12/KJ-D1	63 bar	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-63-G12/KG-_	63 bar	12 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-63-G12/KG-D1	63 bar	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-63-G24/KD-_	63 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-63-G24/KD-D1	63 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-63-G24/KJ-_	63 bar	24 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-63-G24/KJ-D1	63 bar	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-63-G24/KG-_	63 bar	24 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-63-G24/KG-D1	63 bar	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-63-X5/KD-_	63 bar	without coil	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-63-X5/KD-D1	63 bar	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-63-X5/KJ-_	63 bar	without coil	Connector socket AMP Junior-Timer	NBR
BNIPM22-63-X5/KJ-D1	63 bar	without coil	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-63-X5/KG-_	63 bar	without coil	Connector Deutsch DT04-2P	NBR
BNIPM22-63-X5/KG-D1	63 bar	without coil	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-100-G12/KD-_	100 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-100-G12/KD-D1	100 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-100-G12/KJ-_	100 bar	12 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-100-G12/KJ-D1	100 bar	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-100-G12/KG-_	100 bar	12 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-100-G12/KG-D1	100 bar	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-100-G24/KD-_	100 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-100-G24/KD-D1	100 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-100-G24/KJ-_	100 bar	24 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-100-G24/KJ-D1	100 bar	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-100-G24/KG-_	100 bar	24 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-100-G24/KG-D1	100 bar	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-100-X5/KD-_	100 bar	without coil	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-100-X5/KD-D1	100 bar	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-100-X5/KJ-_	100 bar	without coil	Connector socket AMP Junior-Timer	NBR
BNIPM22-100-X5/KJ-D1	100 bar	without coil	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-100-X5/KG-_	100 bar	without coil	Connector Deutsch DT04-2P	NBR
BNIPM22-100-X5/KG-D1	100 bar	without coil	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-160-G12/KD-_	160 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-160-G12/KD-D1	160 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-160-G12/KJ-_	160 bar	12 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-160-G12/KJ-D1	160 bar	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-160-G12/KG-_	160 bar	12 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-160-G12/KG-D1	160 bar	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-160-G24/KD-_	160 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-160-G24/KD-D1	160 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-160-G24/KJ-_	160 bar	24 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-160-G24/KJ-D1	160 bar	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-160-G24/KG-_	160 bar	24 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-160-G24/KG-D1	160 bar	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-160-X5/KD-_	160 bar	without coil	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-160-X5/KD-D1	160 bar	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-160-X5/KJ-_	160 bar	without coil	Connector socket AMP Junior-Timer	NBR
BNIPM22-160-X5/KJ-D1	160 bar	without coil	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-160-X5/KG-_	160 bar	without coil	Connector Deutsch DT04-2P	NBR
BNIPM22-160-X5/KG-D1	160 bar	without coil	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-200-G12/KD-_	200 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-200-G12/KD-D1	200 bar	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-200-G12/KJ-_	200 bar	12 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-200-G12/KJ-D1	200 bar	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-200-G12/KG-_	200 bar	12 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-200-G12/KG-D1	200 bar	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-200-G24/KD-_	200 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-200-G24/KD-D1	200 bar	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-200-G24/KJ-_	200 bar	24 VDC	Connector socket AMP Junior-Timer	NBR
BNIPM22-200-G24/KJ-D1	200 bar	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-200-G24/KG-_	200 bar	24 VDC	Connector Deutsch DT04-2P	NBR
BNIPM22-200-G24/KG-D1	200 bar	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)
BNIPM22-200-X5/KD-_	200 bar	without coil	Connector socket EN 175301-803 / ISO 4400	NBR
BNIPM22-200-X5/KD-D1	200 bar	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)
BNIPM22-200-X5/KJ-_	200 bar	without coil	Connector socket AMP Junior-Timer	NBR
BNIPM22-200-X5/KJ-D1	200 bar	without coil	Connector socket AMP Junior-Timer	FKM (Viton)
BNIPM22-200-X5/KG-_	200 bar	without coil	Connector Deutsch DT04-2P	NBR
BNIPM22-200-X5/KG-D1	200 bar	without coil	Connector Deutsch DT04-2P	FKM (Viton)
