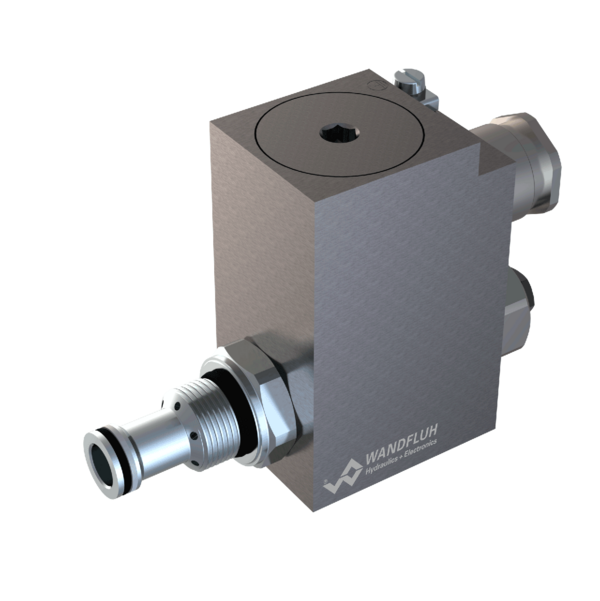

BDBPM22 直动式防爆比例减压插装阀

BDBPM22

直动式防爆比例减压插装阀Ex d II C

Description

直接控制比例泄压阀，采用螺纹插装式设计，符合 ISO 7789 标准。采用压差原理，流量大，调节灵敏。当达到比例电磁阀设定的工作压力时，阀门打开并将保护管路连接至油箱的回油管路。T (2) 的背压影响 P (1) 的压力。Wandfluh 比例放大器可用于控制（见寄存器 1.13）。防火封装的防爆电磁线圈防爆电磁线圈可防止内部爆炸逸散到外部和可燃表面温度。

Application

这些阀门适用于潜在爆炸性气体环境、地面和采矿环境。阀门的阀门的电气远程控制与过程控制相结合，可实现可重复过程的经济型解决方案。螺纹插装阀非常适合于以下场合螺纹插装阀非常适合安装在控制块中，并可安装在夹层板（垂直连接）和法兰板中（本手册中的相应数据表）。中的相应数据表）。可提供在钢块和铝块上制造插装孔的阶梯工具（租用或购买）。请参见表 2.13 中的数据表。

Key facts

比例泄压阀芯

直接控制
Qmax = 25 升/分钟
pmax = 400 巴
pNmax = 350 巴

BDBPM22-20-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
BDBPM22-20-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-20-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
BDBPM22-20-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-20-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
BDBPM22-20-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-20-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
BDBPM22-20-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-20-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
BDBPM22-20-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-20-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
BDBPM22-20-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-20-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
BDBPM22-20-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-20-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
BDBPM22-20-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-20-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
BDBPM22-20-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-20-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
BDBPM22-20-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-20-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
BDBPM22-20-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-20-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
BDBPM22-20-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-100-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-100-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-100-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
BDBPM22-100-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-100-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
BDBPM22-100-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-100-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
BDBPM22-100-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-100-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-100-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-100-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
BDBPM22-100-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-100-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
BDBPM22-100-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-100-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
BDBPM22-100-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-100-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-100-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-100-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
BDBPM22-100-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-100-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
BDBPM22-100-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-100-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
BDBPM22-100-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-100-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-100-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-100-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
BDBPM22-100-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-100-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
BDBPM22-100-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-100-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
BDBPM22-100-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-200-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-200-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-200-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
BDBPM22-200-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-200-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
BDBPM22-200-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-200-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
BDBPM22-200-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-200-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-200-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-200-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
BDBPM22-200-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-200-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
BDBPM22-200-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-200-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
BDBPM22-200-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-200-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-200-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-200-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
BDBPM22-200-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-200-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
BDBPM22-200-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-200-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
BDBPM22-200-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-200-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-200-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-200-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
BDBPM22-200-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-200-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
BDBPM22-200-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-200-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
BDBPM22-200-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-315-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-315-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-315-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
BDBPM22-315-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-315-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
BDBPM22-315-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-315-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
BDBPM22-315-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-315-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-315-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-315-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
BDBPM22-315-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-315-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
BDBPM22-315-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-315-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
BDBPM22-315-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-315-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-315-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-315-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
BDBPM22-315-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-315-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
BDBPM22-315-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-315-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
BDBPM22-315-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-315-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-315-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-315-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
BDBPM22-315-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-315-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
BDBPM22-315-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-315-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
BDBPM22-315-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-350-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-350-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-350-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
BDBPM22-350-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-350-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
BDBPM22-350-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-350-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
BDBPM22-350-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-350-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-350-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-350-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
BDBPM22-350-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-350-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
BDBPM22-350-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-350-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
BDBPM22-350-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-350-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-350-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-350-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
BDBPM22-350-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-350-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
BDBPM22-350-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-350-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
BDBPM22-350-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-350-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-350-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-350-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
BDBPM22-350-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-350-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
BDBPM22-350-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-350-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
BDBPM22-350-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-20-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
BDBPM22-20-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-20-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
BDBPM22-20-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-20-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
BDBPM22-20-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-20-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
BDBPM22-20-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-20-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
BDBPM22-20-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-20-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
BDBPM22-20-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-20-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
BDBPM22-20-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-20-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
BDBPM22-20-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-20-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
BDBPM22-20-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-20-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-20-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-20-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
BDBPM22-20-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-20-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
BDBPM22-20-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-20-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
BDBPM22-20-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-80-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-80-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-80-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
BDBPM22-80-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-80-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
BDBPM22-80-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-80-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
BDBPM22-80-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-80-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-80-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-80-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
BDBPM22-80-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-80-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
BDBPM22-80-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-80-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
BDBPM22-80-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-80-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-80-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-80-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
BDBPM22-80-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-80-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
BDBPM22-80-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-80-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
BDBPM22-80-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-80-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-80-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-80-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
BDBPM22-80-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-80-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
BDBPM22-80-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-80-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
BDBPM22-80-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-160-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-160-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-160-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
BDBPM22-160-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-160-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
BDBPM22-160-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-160-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
BDBPM22-160-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-160-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-160-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-160-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
BDBPM22-160-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-160-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
BDBPM22-160-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-160-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
BDBPM22-160-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-160-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-160-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-160-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
BDBPM22-160-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-160-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
BDBPM22-160-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-160-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
BDBPM22-160-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-160-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-160-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-160-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
BDBPM22-160-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-160-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
BDBPM22-160-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-160-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
BDBPM22-160-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-250-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-250-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-250-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
BDBPM22-250-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-250-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
BDBPM22-250-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-250-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
BDBPM22-250-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-250-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-250-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-250-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
BDBPM22-250-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-250-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
BDBPM22-250-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-250-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
BDBPM22-250-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-250-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-250-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-250-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
BDBPM22-250-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-250-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
BDBPM22-250-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-250-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
BDBPM22-250-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-250-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-250-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-250-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
BDBPM22-250-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-250-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
BDBPM22-250-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-250-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
BDBPM22-250-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-280-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-280-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-280-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
BDBPM22-280-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
BDBPM22-280-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
BDBPM22-280-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-280-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
BDBPM22-280-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-280-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-280-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-280-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
BDBPM22-280-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
BDBPM22-280-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
BDBPM22-280-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-280-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
BDBPM22-280-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
BDBPM22-280-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-280-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-280-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
BDBPM22-280-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
BDBPM22-280-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
BDBPM22-280-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
BDBPM22-280-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
BDBPM22-280-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
BDBPM22-280-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
BDBPM22-280-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
BDBPM22-280-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
BDBPM22-280-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
BDBPM22-280-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
BDBPM22-280-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
BDBPM22-280-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
BDBPM22-280-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)

上一篇BDPPM22 直动式比例减压插装阀 # WANDFLUH 下一篇MDIPM16 反向直动式比例减压插装阀 # WANDFLU

BDBPM22 直动式防爆比例减压插装阀

直动式防爆比例减压插装阀Ex d II C

Description

Application

Key facts

公司地址

服务邮箱

联系电话

技术支持
