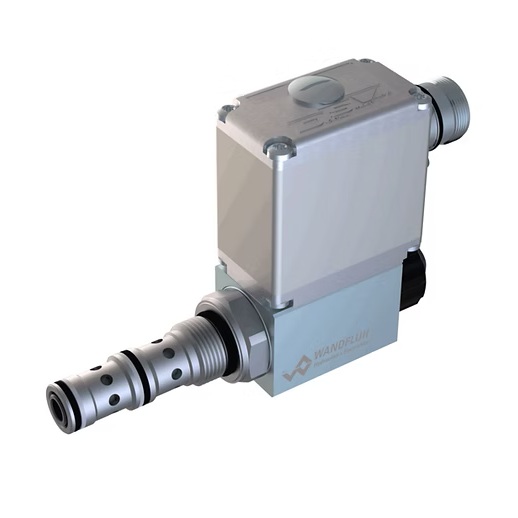

MVPPM22_ME 先导式比例减压插装阀 # WANDFLUH // 万福乐


MVPPM22_ME

先导式比例减压插装阀（滑动线圈、集成电子元件）

Description

带集成电子元件的先导式比例压力控制阀，为螺纹插装式，腔体螺纹为 M22x1.5，符合 ISO 7789 标准。螺纹 M22x1.5 用于符合 ISO 7789 标准的腔体。 即插即用阀在出厂前已设定和校准，因此系列变化最小。这些阀门的电子元件防护等级为 IP67，适用于恶劣的环境条件。标准配置为 7 级压力。调节采用 Wandfluh 比例电磁铁（VDE 标准 0580）。筒体和钢制电磁铁经过镀锌处理，因此具有防锈功能。电子外壳由铝制成。 这些阀门还可选配集成控制器。带电压或电流输出的传感器可作为实际值变送器直接连接。现有的控制器结构经过优化，可与液压执行器配合使用。

Application

带集成电子元件的比例压力控制阀非常适合需要频繁改变压力的苛刻任务。它们适用于系列分散度低、安装简单、操作方便和精度要求最高的场合。集成控制器可减轻机器控制系统的负担，并在一个闭合的控制回路中进行压力控制。可应用于工业和移动液压系统。比例压力控制阀芯非常适合安装在控制块以及 NG4-Mini、NG6 和 NG10 法兰和夹层阀中。(请参见登记册 2.3 中的单独数据表）。可提供制造钢制和铝制插装孔的阶梯工具（租用或购买）。请参阅资料 2.13 中的数据表。 文件。

Key facts

比例压力控制阀
旋入式滤芯设计

  • 集成放大器或控制器电子装置

  • 先导式操作

  • Qmax = 60 升/分钟

  • pmax = 400 巴

  • pN red max = 350 巴

MVPPM22-20-G12/MEA1_-__20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierNBRArmature tube closed (standard)
MVPPM22-20-G12/MEA1_-_HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierNBRScrew plug
MVPPM22-20-G12/MEA1_-_HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierNBRManual override
MVPPM22-20-G12/MEA1_-D1_20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierFKM (Viton)Armature tube closed (standard)
MVPPM22-20-G12/MEA1_-D1HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierFKM (Viton)Screw plug
MVPPM22-20-G12/MEA1_-D1HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)AmplifierFKM (Viton)Manual override
MVPPM22-20-G12/MEA1R1-__20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)NBRArmature tube closed (standard)
MVPPM22-20-G12/MEA1R1-_HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)NBRScrew plug
MVPPM22-20-G12/MEA1R1-_HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)NBRManual override
MVPPM22-20-G12/MEA1R1-D1_20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)FKM (Viton)Armature tube closed (standard)
MVPPM22-20-G12/MEA1R1-D1HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)FKM (Viton)Screw plug
MVPPM22-20-G12/MEA1R1-D1HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with current feedback value signal (0…20 mA / 4…20 mA)FKM (Viton)Manual override
MVPPM22-20-G12/MEA1R2-__20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)NBRArmature tube closed (standard)
MVPPM22-20-G12/MEA1R2-_HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)NBRScrew plug
MVPPM22-20-G12/MEA1R2-_HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)NBRManual override
MVPPM22-20-G12/MEA1R2-D1_20 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)FKM (Viton)Armature tube closed (standard)
MVPPM22-20-G12/MEA1R2-D1HB020 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)FKM (Viton)Screw plug
MVPPM22-20-G12/MEA1R2-D1HB4.520 bar12 VDCWith analog command value signal (0…+10 V preadjusted)Controller with voltage feedback value signal (0…10 V)FKM (Viton)Manual override
MVPPM22-20-G12/MEC1_-__20 bar12 VDCWith CANopen according to DSP-408AmplifierNBRArmature tube closed (standard)
MVPPM22-20-G12/MEC1_-_HB020 bar12 VDCWith CANopen according to DSP-408AmplifierNBRScrew plug
