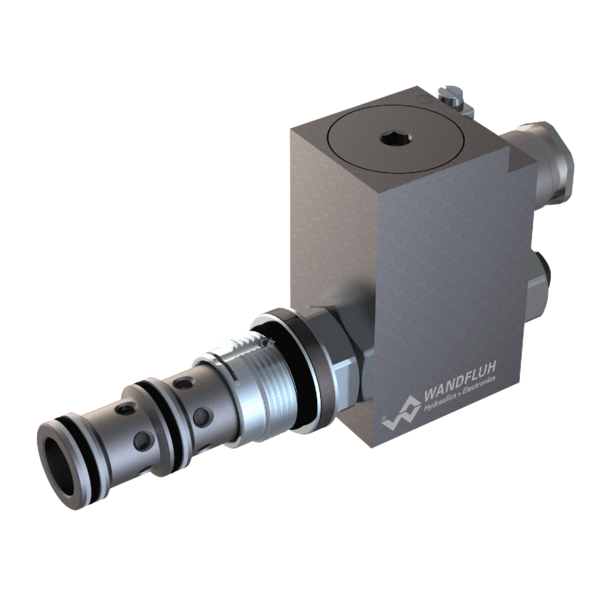

MVBPM33 先导式防爆比例减压插装阀 # WANDFLUH // 万福乐

MVBPM33

先导式防爆比例减压插装阀 Ex d II C

Description

先导式比例压力控制阀采用螺纹插装式设计，用于符合 ISO 7789 标准的腔体。电磁力和端口 A (1) 中的压力与电磁电流成比例增加。阀门的运行在很大程度上与端口 P (2) 的压力无关。通过将多余的油排入油箱 T（3），可以防止用户接口 A（1）中的压力超过设定值，例如通过一个活跃的用户。当电磁阀断电时，油会自由地从连接处 P（2）流向用油设备。连接 P (2) 至用户连接 A (1)。可使用 Wandfluh 比例放大器进行控制（参见登记册 1.13）。防火封装的防爆电磁线圈可防止内部爆炸和可燃表面温度泄漏到外部。

Application

这些阀门适用于潜在爆炸性气体环境、地面和采矿环境。阀门的电气远程控制功能使其能够与过程控制相结合，提供可重复过程的经济型解决方案。螺纹插装阀非常适合安装在控制块中，并可安装在夹层板（垂直连接）和法兰板中。法兰板（本登记册中的相应数据表）。可提供在钢块和铝块上制造插装孔的阶梯工具（租用或购买）。请参见表 2.13 中的数据表。

Key facts

比例压力调节筒

先导式
Qmax = 160 升/分钟
pmax = 400 巴
pN red max = 350 巴

MVBPM33-100-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-100-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-100-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
MVBPM33-100-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-100-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
MVBPM33-100-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-100-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
MVBPM33-100-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-100-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-100-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-100-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
MVBPM33-100-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-100-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
MVBPM33-100-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-100-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
MVBPM33-100-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-100-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-100-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-100-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
MVBPM33-100-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-100-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
MVBPM33-100-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-100-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
MVBPM33-100-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-100-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-100-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-100-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
MVBPM33-100-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-100-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
MVBPM33-100-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-100-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
MVBPM33-100-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-200-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-200-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-200-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
MVBPM33-200-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-200-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
MVBPM33-200-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-200-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
MVBPM33-200-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-200-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-200-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-200-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
MVBPM33-200-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-200-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
MVBPM33-200-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-200-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
MVBPM33-200-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-200-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-200-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-200-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
MVBPM33-200-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-200-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
MVBPM33-200-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-200-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
MVBPM33-200-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-200-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-200-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-200-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
MVBPM33-200-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-200-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
MVBPM33-200-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-200-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
MVBPM33-200-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-275-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-275-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-275-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
MVBPM33-275-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-275-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
MVBPM33-275-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-275-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
MVBPM33-275-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-275-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-275-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-275-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
MVBPM33-275-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-275-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
MVBPM33-275-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-275-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
MVBPM33-275-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-275-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-275-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-275-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
MVBPM33-275-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-275-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
MVBPM33-275-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-275-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
MVBPM33-275-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-275-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-275-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-275-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
MVBPM33-275-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-275-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
MVBPM33-275-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-275-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
MVBPM33-275-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-350-G12/L 9/_-_	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-350-G12/L 9/_-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-350-G12/L 9/AU-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	NBR
MVBPM33-350-G12/L 9/AU-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-350-G12/L 9/IM-_	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	NBR
MVBPM33-350-G12/L 9/IM-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-350-G12/L 9/NP-_	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	NBR
MVBPM33-350-G12/L 9/NP-D1	Nominal power Pn: 15W / L15	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-350-G12/L15/_-_	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-350-G12/L15/_-D1	Nominal power Pn: 15W / L15	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-350-G12/L15/AU-_	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	NBR
MVBPM33-350-G12/L15/AU-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-350-G12/L15/IM-_	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	NBR
MVBPM33-350-G12/L15/IM-D1	Nominal power Pn: 15W / L15	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-350-G12/L15/NP-_	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	NBR
MVBPM33-350-G12/L15/NP-D1	Nominal power Pn: 15W / L15	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-350-G24/L 9/_-_	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-350-G24/L 9/_-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-350-G24/L 9/AU-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	NBR
MVBPM33-350-G24/L 9/AU-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-350-G24/L 9/IM-_	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	NBR
MVBPM33-350-G24/L 9/IM-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-350-G24/L 9/NP-_	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	NBR
MVBPM33-350-G24/L 9/NP-D1	Nominal power Pn: 15W / L15	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-350-G24/L15/_-_	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-350-G24/L15/_-D1	Nominal power Pn: 15W / L15	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-350-G24/L15/AU-_	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	NBR
MVBPM33-350-G24/L15/AU-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-350-G24/L15/IM-_	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	NBR
MVBPM33-350-G24/L15/IM-D1	Nominal power Pn: 15W / L15	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-350-G24/L15/NP-_	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	NBR
MVBPM33-350-G24/L15/NP-D1	Nominal power Pn: 15W / L15	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-80-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-80-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-80-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
MVBPM33-80-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-80-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
MVBPM33-80-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-80-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
MVBPM33-80-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-80-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-80-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-80-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
MVBPM33-80-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-80-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
MVBPM33-80-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-80-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
MVBPM33-80-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-80-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-80-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-80-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
MVBPM33-80-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-80-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
MVBPM33-80-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-80-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
MVBPM33-80-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-80-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-80-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-80-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
MVBPM33-80-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-80-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
MVBPM33-80-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-80-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
MVBPM33-80-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-160-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-160-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-160-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
MVBPM33-160-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-160-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
MVBPM33-160-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-160-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
MVBPM33-160-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-160-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-160-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-160-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
MVBPM33-160-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-160-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
MVBPM33-160-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-160-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
MVBPM33-160-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-160-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-160-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-160-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
MVBPM33-160-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-160-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
MVBPM33-160-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-160-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
MVBPM33-160-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-160-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-160-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-160-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
MVBPM33-160-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-160-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
MVBPM33-160-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-160-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
MVBPM33-160-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-220-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-220-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-220-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
MVBPM33-220-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-220-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
MVBPM33-220-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-220-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
MVBPM33-220-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-220-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-220-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-220-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
MVBPM33-220-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-220-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
MVBPM33-220-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-220-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
MVBPM33-220-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-220-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-220-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-220-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
MVBPM33-220-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-220-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
MVBPM33-220-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-220-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
MVBPM33-220-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-220-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-220-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-220-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
MVBPM33-220-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-220-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
MVBPM33-220-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-220-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
MVBPM33-220-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-280-G12/L 9/_-_	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-280-G12/L 9/_-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-280-G12/L 9/AU-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	NBR
MVBPM33-280-G12/L 9/AU-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Australia	FKM (Viton)
MVBPM33-280-G12/L 9/IM-_	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	NBR
MVBPM33-280-G12/L 9/IM-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-280-G12/L 9/NP-_	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	NBR
MVBPM33-280-G12/L 9/NP-D1	Nominal power Pn: 9W / L9	12 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-280-G12/L15/_-_	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-280-G12/L15/_-D1	Nominal power Pn: 9W / L9	12 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-280-G12/L15/AU-_	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	NBR
MVBPM33-280-G12/L15/AU-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Australia	FKM (Viton)
MVBPM33-280-G12/L15/IM-_	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	NBR
MVBPM33-280-G12/L15/IM-D1	Nominal power Pn: 9W / L9	12 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-280-G12/L15/NP-_	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	NBR
MVBPM33-280-G12/L15/NP-D1	Nominal power Pn: 9W / L9	12 VDC	15W	NEPSI	FKM (Viton)
MVBPM33-280-G24/L 9/_-_	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-280-G24/L 9/_-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-280-G24/L 9/AU-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	NBR
MVBPM33-280-G24/L 9/AU-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Australia	FKM (Viton)
MVBPM33-280-G24/L 9/IM-_	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	NBR
MVBPM33-280-G24/L 9/IM-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	Inmetro	FKM (Viton)
MVBPM33-280-G24/L 9/NP-_	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	NBR
MVBPM33-280-G24/L 9/NP-D1	Nominal power Pn: 9W / L9	24 VDC	9 W	NEPSI	FKM (Viton)
MVBPM33-280-G24/L15/_-_	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	NBR
MVBPM33-280-G24/L15/_-D1	Nominal power Pn: 9W / L9	24 VDC	15W	ATEX, IECEx, GOST Ex	FKM (Viton)
MVBPM33-280-G24/L15/AU-_	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	NBR
MVBPM33-280-G24/L15/AU-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Australia	FKM (Viton)
MVBPM33-280-G24/L15/IM-_	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	NBR
MVBPM33-280-G24/L15/IM-D1	Nominal power Pn: 9W / L9	24 VDC	15W	Inmetro	FKM (Viton)
MVBPM33-280-G24/L15/NP-_	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	NBR
MVBPM33-280-G24/L15/NP-D1	Nominal power Pn: 9W / L9	24 VDC	15W	NEPSI	FKM (Viton)

Wandfluh	MVBPM33-200-G24/L15	617.8047	MVBPM33-200/L15	U= 24 VDC
Wandfluh	MVBPM33-200-X5/L15	617.8059	MVBPM33-200/L15	无线圈
Wandfluh	MVBPM33-220-G24/L9	617.8062	MVBPM33-220/L9	U= 24 VDC
Wandfluh	MVBPM33-275-G24/L15	617.8052	MVBPM33-275/L15	U= 24 VDC
Wandfluh	MVBPM33-350-G24/L15	617.8086	MVBPM33-350/L15	U= 24 VDC

上一篇MVPPM33_ME 先导式比例减压插装阀 # WANDFL下一篇MDPPR11 直动式比例减压插装阀 # WANDFLUH

MVBPM33 先导式防爆比例减压插装阀 # WANDFLUH // 万福乐

先导式防爆比例减压插装阀 Ex d II C

Description

Application

Key facts

公司地址

服务邮箱

联系电话

技术支持
