首页 >> 产品介绍 >>Wandfluh 一 万福乐 >> MPPPU10 先导活塞直接控制的比例压力调节器 # WANDFLUH // 万福乐
详细内容

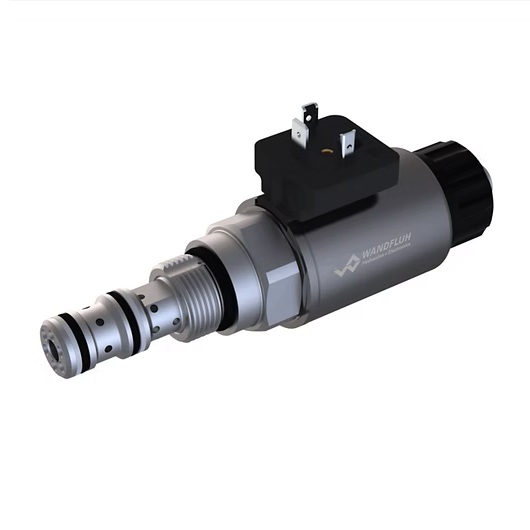

MPPPU10 先导活塞直接控制的比例压力调节器 # WANDFLUH // 万福乐


MPPPU10

先导活塞直接控制的比例压力调节器

Description

带先导阀驱动的直动式比例减压阀，外壳采用旋入式阀芯设计，符合Wandfluh标准。比例减压阀 调节连接处A（1）的压力。电磁铁的力和连接A（1）中的压力与电磁电流成比例增加。该阀的工作几乎与连接P（2）的压力无关。用户接口A(1)中的压力增加到超过设定值，例如由一个活跃的用户造成的，可以通过以下方式来防止 通过将多余的油排放到油箱T(3)中，可以防止活跃的用户对油的需求。如果电磁铁没有通电，油就会从用户接口A（1）自由流向接口T（3）。Wandfluh比例放大器可用于控制（寄存器1.13）。

Application

这些阀用于必须经常改变压力的液压系统中。电动远程控制与过程控制相结合，可提供经济的解决方案，具有 经济的解决方案与可重复的程序。直接作用式减压阀用于需要最小可调压力的地方。用于加工 对于在钢或铝块上加工墨盒外壳，可以提供外壳工具（出租或出售）。请参考注册表2.13中的表格。

Key facts

筒内比例压力调节器

  • 通过先导阀芯直接作用

  • Qmax = 20 l/min

  • pmax = 350 bar

  • pN红最大=200巴

MKPPU10-115-G12/WGD1HB4.512 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Manual override
MKPPU10-115-G12/WGD1HB012 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Screw plug
MKPPU10-115-G12/WG_HB4.512 VDCMetal housing roundConnector Deutsch DT04-2PNBRManual override
MKPPU10-115-G12/WG_HB012 VDCMetal housing roundConnector Deutsch DT04-2PNBRScrew plug
MKPPU10-115-G12/WJD1HB4.512 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Manual override
MKPPU10-115-G12/WJD1HB012 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Screw plug
MKPPU10-115-G12/WJ_HB4.512 VDCMetal housing roundConnector socket AMP Junior-TimerNBRManual override
MKPPU10-115-G12/WJ_HB012 VDCMetal housing roundConnector socket AMP Junior-TimerNBRScrew plug
MKPPU10-115-G12/WDD1HB4.512 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Manual override
MKPPU10-115-G12/WDD1HB012 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Screw plug
MKPPU10-115-G12/WD_HB4.512 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRManual override
MKPPU10-115-G12/WD_HB012 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRScrew plug
MKPPU10-115-G12/MGD1HB4.512 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)Manual override
MKPPU10-115-G12/MGD1HB012 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)Screw plug
MKPPU10-115-G12/MG_HB4.512 VDCMetal housing, squareConnector Deutsch DT04-2PNBRManual override
MKPPU10-115-G12/MG_HB012 VDCMetal housing, squareConnector Deutsch DT04-2PNBRScrew plug
MKPPU10-115-G12/MJD1HB4.512 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)Manual override
MKPPU10-115-G12/MJD1HB012 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)Screw plug
MKPPU10-115-G12/MJ_HB4.512 VDCMetal housing, squareConnector socket AMP Junior-TimerNBRManual override
MKPPU10-115-G12/MJ_HB012 VDCMetal housing, squareConnector socket AMP Junior-TimerNBRScrew plug
MKPPU10-115-G12/MDD1HB4.512 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)Manual override
MKPPU10-115-G12/MDD1HB012 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)Screw plug
MKPPU10-115-G12/MD_HB4.512 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRManual override
MKPPU10-115-G12/MD_HB012 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRScrew plug
MKPPU10-115-G24/WGD1HB4.524 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Manual override
MKPPU10-115-G24/WGD1HB024 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Screw plug
MKPPU10-115-G24/WG_HB4.524 VDCMetal housing roundConnector Deutsch DT04-2PNBRManual override
MKPPU10-115-G24/WG_HB024 VDCMetal housing roundConnector Deutsch DT04-2PNBRScrew plug
MKPPU10-115-G24/WJD1HB4.524 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Manual override
MKPPU10-115-G24/WJD1HB024 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Screw plug
MKPPU10-115-G24/WJ_HB4.524 VDCMetal housing roundConnector socket AMP Junior-TimerNBRManual override
MKPPU10-115-G24/WJ_HB024 VDCMetal housing roundConnector socket AMP Junior-TimerNBRScrew plug
MKPPU10-115-G24/WDD1HB4.524 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Manual override
MKPPU10-115-G24/WDD1HB024 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Screw plug
MKPPU10-115-G24/WD_HB4.524 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRManual override
MKPPU10-115-G24/WD_HB024 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRScrew plug
MKPPU10-115-G24/MGD1HB4.524 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)Manual override
MKPPU10-115-G24/MGD1HB024 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)Screw plug
MKPPU10-115-G24/MG_HB4.524 VDCMetal housing, squareConnector Deutsch DT04-2PNBRManual override
MKPPU10-115-G24/MG_HB024 VDCMetal housing, squareConnector Deutsch DT04-2PNBRScrew plug
MKPPU10-115-G24/MJD1HB4.524 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)Manual override
MKPPU10-115-G24/MJD1HB024 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)Screw plug
MKPPU10-115-G24/MJ_HB4.524 VDCMetal housing, squareConnector socket AMP Junior-TimerNBRManual override
MKPPU10-115-G24/MJ_HB024 VDCMetal housing, squareConnector socket AMP Junior-TimerNBRScrew plug
MKPPU10-115-G24/MDD1HB4.524 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)Manual override
MKPPU10-115-G24/MDD1HB024 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)Screw plug
MKPPU10-115-G24/MD_HB4.524 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRManual override
MKPPU10-115-G24/MD_HB024 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRScrew plug
