D_PPM22 比例节流插装阀 # WANDFLUH // 万福乐

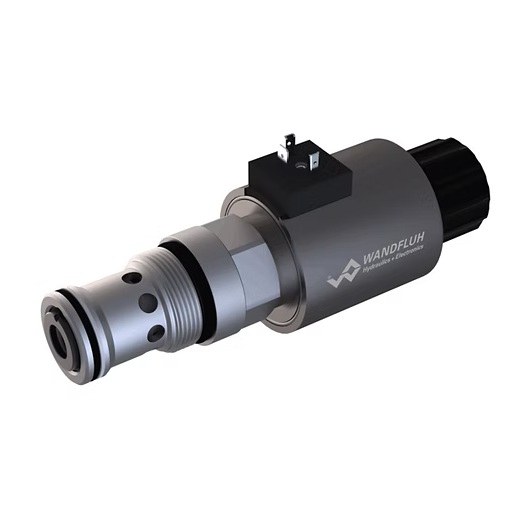

D_PPM22 比例节流插装阀（滑动线圈）Description直接操作的比例节流阀，采用旋入式阀芯设计，用于符合ISO7789标准的腔体。 当电磁铁断电时，控制阀芯被弹簧固定在关闭（DN）或打开（DO）位置。电流的变化伴随着体积流量的比例变化。 这些阀门的特点是极其敏感的开启和关闭行为以及低滞后。Wandfluh比例放大器可用于控制（见寄存器1.13）。 Application比例节流阀适用于固定或移动系统中运动序列的平稳控制。旋入式滤芯非常适用于安装在控制块中，并安装在夹层（垂直堆叠）和法兰盘中（本册中的相应数据表）。可使用阶梯工具在钢块和铝块上制作滤芯安装孔（租用或购买）。请参考寄存器2.13中的数据表。 Key facts比例节流阀芯 直接控制 Qmax = 32 l/min QN max=25 l/min pmax = 350 bar
| DOPPM22-6,3-G12/WD-__ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Armature tube closed (standard) | | DOPPM22-6,3-G12/WD-_HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Screw plug | | DOPPM22-6,3-G12/WD-_HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Manual override | | DOPPM22-6,3-G12/WD-D1_ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Armature tube closed (standard) | | DOPPM22-6,3-G12/WD-D1HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Screw plug | | DOPPM22-6,3-G12/WD-D1HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Manual override | | DOPPM22-6,3-G12/WJ-__ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Armature tube closed (standard) | | DOPPM22-6,3-G12/WJ-_HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Screw plug | | DOPPM22-6,3-G12/WJ-_HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Manual override | | DOPPM22-6,3-G12/WJ-D1_ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Armature tube closed (standard) | | DOPPM22-6,3-G12/WJ-D1HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Screw plug | | DOPPM22-6,3-G12/WJ-D1HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Manual override | | DOPPM22-6,3-G12/WG-__ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Armature tube closed (standard) | | DOPPM22-6,3-G12/WG-_HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Screw plug | | DOPPM22-6,3-G12/WG-_HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Manual override | | DOPPM22-6,3-G12/WG-D1_ | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Armature tube closed (standard) | | DOPPM22-6,3-G12/WG-D1HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Screw plug | | DOPPM22-6,3-G12/WG-D1HB4.5 | «normally open» | 6,3 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Manual override | | DOPPM22-6,3-G12/MD-__ | «normally open» | 6,3 l/min | 12 VDC | Metal housing, square | Connector socket EN 175301-803 / ISO 4400 | NBR | Armature tube closed (standard) | | DOPPM22-6,3-G12/MD-_HB0 | «normally open» | 6,3 l/min | 12 VDC | Metal housing, square | Connector socket EN 175301-803 / ISO 4400 | NBR | Screw plug |
|
|
