QNPPM22_ME 比例2通流量控制插装阀 # WANDFLUH // 万福乐

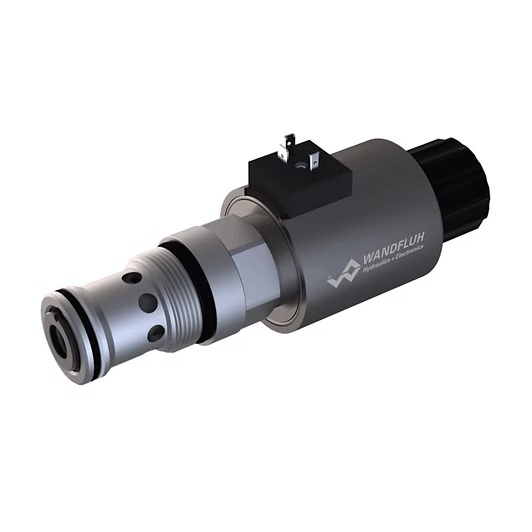

QNPPM22_ME 比例2通流量控制插装阀（滑动线圈、集成电子元件）Description符合ISO7789标准的直动式、负载补偿比例流量控制阀，采用旋入式阀体形式。当电磁铁不通电时，控制阀芯由弹簧保持在关闭位置。电流的变化伴随着比例体积流量的变化。从入口（1），流体通过控制和节流阀芯到受控出口（2）。控制是通过模拟接口或现场总线接口（CANopen、J1939或Profibus DP）进行的。参数化是通过免费的参数化和诊断软件 "PASO "或通过现场总线接口进行的。Wandfluh比例放大器可用于控制（寄存器1.13）。 Application带有集成电子装置的比例流量控制器非常适用于必须经常改变体积流量的苛刻任务。它们适用于对低序列分散性、简单的调试、方便的操作和高精确度非常重要的应用。集成的控制器解除了机器的控制，并在一个封闭的控制回路中控制体积流量。对于在钢或铝块上加工墨盒外壳，可以提供外壳工具（出租或出售）。请参考注册表2.13中的表格。 Key facts带集成电子装置的比例式2路插装流量控制器 以直接行动 Qmax = 25 l/min QN最大=25升/分钟 pmax = 350 bar
| QNPPM22-3,2-G12/WD-__ | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Armature tube closed (standard) | | QNPPM22-3,2-G12/WD-_HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Screw plug | | QNPPM22-3,2-G12/WD-_HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | NBR | Manual override | | QNPPM22-3,2-G12/WD-D1_ | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Armature tube closed (standard) | | QNPPM22-3,2-G12/WD-D1HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Screw plug | | QNPPM22-3,2-G12/WD-D1HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket EN 175301-803 / ISO 4400 | FKM (Viton) | Manual override | | QNPPM22-3,2-G12/WJ-__ | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Armature tube closed (standard) | | QNPPM22-3,2-G12/WJ-_HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Screw plug | | QNPPM22-3,2-G12/WJ-_HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | NBR | Manual override | | QNPPM22-3,2-G12/WJ-D1_ | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Armature tube closed (standard) | | QNPPM22-3,2-G12/WJ-D1HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Screw plug | | QNPPM22-3,2-G12/WJ-D1HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector socket AMP Junior-Timer | FKM (Viton) | Manual override | | QNPPM22-3,2-G12/WG-__ | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Armature tube closed (standard) | | QNPPM22-3,2-G12/WG-_HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Screw plug | | QNPPM22-3,2-G12/WG-_HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | NBR | Manual override | | QNPPM22-3,2-G12/WG-D1_ | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Armature tube closed (standard) | | QNPPM22-3,2-G12/WG-D1HB0 | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Screw plug | | QNPPM22-3,2-G12/WG-D1HB4.5 | 3,2 l/min | 12 VDC | Metal housing round | Connector Deutsch DT04-2P | FKM (Viton) | Manual override | | QNPPM22-3,2-G12/MD-__ | 3,2 l/min | 12 VDC | Metal housing, square | Connector socket EN 175301-803 / ISO 4400 | NBR | Armature tube closed (standard) | | QNPPM22-3,2-G12/MD-_HB0 | 3,2 l/min | 12 VDC | Metal housing, square | Connector socket EN 175301-803 / ISO 4400 | NBR | Screw plug |
|
|
