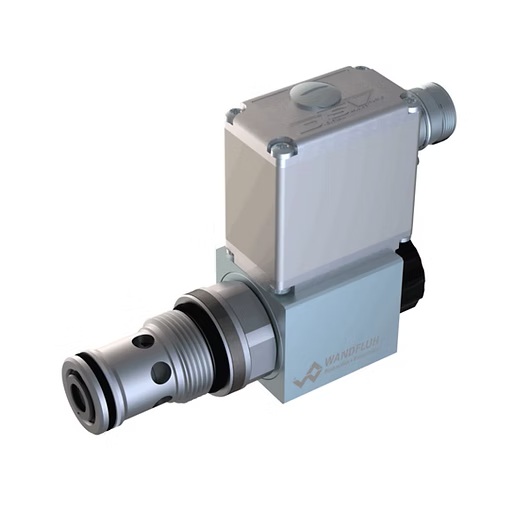

QNPPM22_ME 比例2通流量控制插装阀 # WANDFLUH // 万福乐


QNPPM22_ME

比例2通流量控制插装阀（滑动线圈、集成电子元件）

Description

符合ISO7789标准的直动式、负载补偿比例流量控制阀，采用旋入式阀体形式。当电磁铁不通电时，控制阀芯由弹簧保持在关闭位置。电流的变化伴随着比例体积流量的变化。从入口（1），流体通过控制和节流阀芯到受控出口（2）。控制是通过模拟接口或现场总线接口（CANopen、J1939或Profibus DP）进行的。参数化是通过免费的参数化和诊断软件 "PASO "或通过现场总线接口进行的。Wandfluh比例放大器可用于控制（寄存器1.13）。

Application

带有集成电子装置的比例流量控制器非常适用于必须经常改变体积流量的苛刻任务。它们适用于对低序列分散性、简单的调试、方便的操作和高精确度非常重要的应用。集成的控制器解除了机器的控制，并在一个封闭的控制回路中控制体积流量。对于在钢或铝块上加工墨盒外壳，可以提供外壳工具（出租或出售）。请参考注册表2.13中的表格。

Key facts

带集成电子装置的比例式2路插装流量控制器

以直接行动
Qmax = 25 l/min
QN最大=25升/分钟
pmax = 350 bar

QNPPM22-3,2-G12/MEA1-__	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-3,2-G12/MEA1-_HB0	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-3,2-G12/MEA1-_HB4.5	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-3,2-G12/MEA1-D1_	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G12/MEA1-D1HB0	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-3,2-G12/MEA1-D1HB4.5	3,2 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-3,2-G12/MEC1-__	3,2 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-3,2-G12/MEC1-_HB0	3,2 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-3,2-G12/MEC1-_HB4.5	3,2 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-3,2-G12/MEC1-D1_	3,2 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G12/MEC1-D1HB0	3,2 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-3,2-G12/MEC1-D1HB4.5	3,2 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-3,2-G12/MEP1-__	3,2 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-3,2-G12/MEP1-_HB0	3,2 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-3,2-G12/MEP1-_HB4.5	3,2 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-3,2-G12/MEP1-D1_	3,2 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G12/MEP1-D1HB0	3,2 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-3,2-G12/MEP1-D1HB4.5	3,2 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-3,2-G12/MEJ1-__	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-3,2-G12/MEJ1-_HB0	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-3,2-G12/MEJ1-_HB4.5	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-3,2-G12/MEJ1-D1_	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G12/MEJ1-D1HB0	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-3,2-G12/MEJ1-D1HB4.5	3,2 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-3,2-G24/MEA1-__	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-3,2-G24/MEA1-_HB0	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-3,2-G24/MEA1-_HB4.5	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-3,2-G24/MEA1-D1_	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G24/MEA1-D1HB0	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-3,2-G24/MEA1-D1HB4.5	3,2 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-3,2-G24/MEC1-__	3,2 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-3,2-G24/MEC1-_HB0	3,2 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-3,2-G24/MEC1-_HB4.5	3,2 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-3,2-G24/MEC1-D1_	3,2 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G24/MEC1-D1HB0	3,2 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-3,2-G24/MEC1-D1HB4.5	3,2 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-3,2-G24/MEP1-__	3,2 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-3,2-G24/MEP1-_HB0	3,2 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-3,2-G24/MEP1-_HB4.5	3,2 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-3,2-G24/MEP1-D1_	3,2 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G24/MEP1-D1HB0	3,2 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-3,2-G24/MEP1-D1HB4.5	3,2 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-3,2-G24/MEJ1-__	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-3,2-G24/MEJ1-_HB0	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-3,2-G24/MEJ1-_HB4.5	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-3,2-G24/MEJ1-D1_	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-3,2-G24/MEJ1-D1HB0	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-3,2-G24/MEJ1-D1HB4.5	3,2 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-8-G12/MEA1-__	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-8-G12/MEA1-_HB0	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-8-G12/MEA1-_HB4.5	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-8-G12/MEA1-D1_	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G12/MEA1-D1HB0	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-8-G12/MEA1-D1HB4.5	8 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-8-G12/MEC1-__	8 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-8-G12/MEC1-_HB0	8 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-8-G12/MEC1-_HB4.5	8 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-8-G12/MEC1-D1_	8 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G12/MEC1-D1HB0	8 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-8-G12/MEC1-D1HB4.5	8 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-8-G12/MEP1-__	8 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-8-G12/MEP1-_HB0	8 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-8-G12/MEP1-_HB4.5	8 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-8-G12/MEP1-D1_	8 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G12/MEP1-D1HB0	8 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-8-G12/MEP1-D1HB4.5	8 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-8-G12/MEJ1-__	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-8-G12/MEJ1-_HB0	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-8-G12/MEJ1-_HB4.5	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-8-G12/MEJ1-D1_	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G12/MEJ1-D1HB0	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-8-G12/MEJ1-D1HB4.5	8 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-8-G24/MEA1-__	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-8-G24/MEA1-_HB0	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-8-G24/MEA1-_HB4.5	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-8-G24/MEA1-D1_	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G24/MEA1-D1HB0	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-8-G24/MEA1-D1HB4.5	8 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-8-G24/MEC1-__	8 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-8-G24/MEC1-_HB0	8 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-8-G24/MEC1-_HB4.5	8 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-8-G24/MEC1-D1_	8 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G24/MEC1-D1HB0	8 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-8-G24/MEC1-D1HB4.5	8 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-8-G24/MEP1-__	8 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-8-G24/MEP1-_HB0	8 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-8-G24/MEP1-_HB4.5	8 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-8-G24/MEP1-D1_	8 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G24/MEP1-D1HB0	8 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-8-G24/MEP1-D1HB4.5	8 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-8-G24/MEJ1-__	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-8-G24/MEJ1-_HB0	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-8-G24/MEJ1-_HB4.5	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-8-G24/MEJ1-D1_	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-8-G24/MEJ1-D1HB0	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-8-G24/MEJ1-D1HB4.5	8 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-16-G12/MEA1-__	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-16-G12/MEA1-_HB0	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-16-G12/MEA1-_HB4.5	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-16-G12/MEA1-D1_	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G12/MEA1-D1HB0	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-16-G12/MEA1-D1HB4.5	16 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-16-G12/MEC1-__	16 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-16-G12/MEC1-_HB0	16 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-16-G12/MEC1-_HB4.5	16 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-16-G12/MEC1-D1_	16 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G12/MEC1-D1HB0	16 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-16-G12/MEC1-D1HB4.5	16 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-16-G12/MEP1-__	16 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-16-G12/MEP1-_HB0	16 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-16-G12/MEP1-_HB4.5	16 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-16-G12/MEP1-D1_	16 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G12/MEP1-D1HB0	16 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-16-G12/MEP1-D1HB4.5	16 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-16-G12/MEJ1-__	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-16-G12/MEJ1-_HB0	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-16-G12/MEJ1-_HB4.5	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-16-G12/MEJ1-D1_	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G12/MEJ1-D1HB0	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-16-G12/MEJ1-D1HB4.5	16 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-16-G24/MEA1-__	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-16-G24/MEA1-_HB0	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-16-G24/MEA1-_HB4.5	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-16-G24/MEA1-D1_	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G24/MEA1-D1HB0	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-16-G24/MEA1-D1HB4.5	16 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-16-G24/MEC1-__	16 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-16-G24/MEC1-_HB0	16 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-16-G24/MEC1-_HB4.5	16 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-16-G24/MEC1-D1_	16 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G24/MEC1-D1HB0	16 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-16-G24/MEC1-D1HB4.5	16 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-16-G24/MEP1-__	16 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-16-G24/MEP1-_HB0	16 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-16-G24/MEP1-_HB4.5	16 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-16-G24/MEP1-D1_	16 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G24/MEP1-D1HB0	16 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-16-G24/MEP1-D1HB4.5	16 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-16-G24/MEJ1-__	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-16-G24/MEJ1-_HB0	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-16-G24/MEJ1-_HB4.5	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-16-G24/MEJ1-D1_	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-16-G24/MEJ1-D1HB0	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-16-G24/MEJ1-D1HB4.5	16 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-25-G12/MEA1-__	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-25-G12/MEA1-_HB0	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-25-G12/MEA1-_HB4.5	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-25-G12/MEA1-D1_	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G12/MEA1-D1HB0	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-25-G12/MEA1-D1HB4.5	25 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-25-G12/MEC1-__	25 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-25-G12/MEC1-_HB0	25 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-25-G12/MEC1-_HB4.5	25 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-25-G12/MEC1-D1_	25 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G12/MEC1-D1HB0	25 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-25-G12/MEC1-D1HB4.5	25 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-25-G12/MEP1-__	25 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-25-G12/MEP1-_HB0	25 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-25-G12/MEP1-_HB4.5	25 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-25-G12/MEP1-D1_	25 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G12/MEP1-D1HB0	25 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-25-G12/MEP1-D1HB4.5	25 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-25-G12/MEJ1-__	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-25-G12/MEJ1-_HB0	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-25-G12/MEJ1-_HB4.5	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-25-G12/MEJ1-D1_	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G12/MEJ1-D1HB0	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-25-G12/MEJ1-D1HB4.5	25 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QNPPM22-25-G24/MEA1-__	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QNPPM22-25-G24/MEA1-_HB0	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QNPPM22-25-G24/MEA1-_HB4.5	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QNPPM22-25-G24/MEA1-D1_	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G24/MEA1-D1HB0	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QNPPM22-25-G24/MEA1-D1HB4.5	25 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QNPPM22-25-G24/MEC1-__	25 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QNPPM22-25-G24/MEC1-_HB0	25 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QNPPM22-25-G24/MEC1-_HB4.5	25 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QNPPM22-25-G24/MEC1-D1_	25 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G24/MEC1-D1HB0	25 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QNPPM22-25-G24/MEC1-D1HB4.5	25 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QNPPM22-25-G24/MEP1-__	25 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QNPPM22-25-G24/MEP1-_HB0	25 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QNPPM22-25-G24/MEP1-_HB4.5	25 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QNPPM22-25-G24/MEP1-D1_	25 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G24/MEP1-D1HB0	25 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QNPPM22-25-G24/MEP1-D1HB4.5	25 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QNPPM22-25-G24/MEJ1-__	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QNPPM22-25-G24/MEJ1-_HB0	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QNPPM22-25-G24/MEJ1-_HB4.5	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QNPPM22-25-G24/MEJ1-D1_	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QNPPM22-25-G24/MEJ1-D1HB0	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QNPPM22-25-G24/MEJ1-D1HB4.5	25 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override

上一篇QNPPM22_ME 比例2通流量控制插装阀 # WANDF下一篇QNBPM22 防爆比例2通流量控制插装阀 # WANDFL

QNPPM22_ME 比例2通流量控制插装阀 # WANDFLUH // 万福乐

比例2通流量控制插装阀（滑动线圈、集成电子元件）

Description

Application

Key facts

公司地址

服务邮箱

联系电话

技术支持
